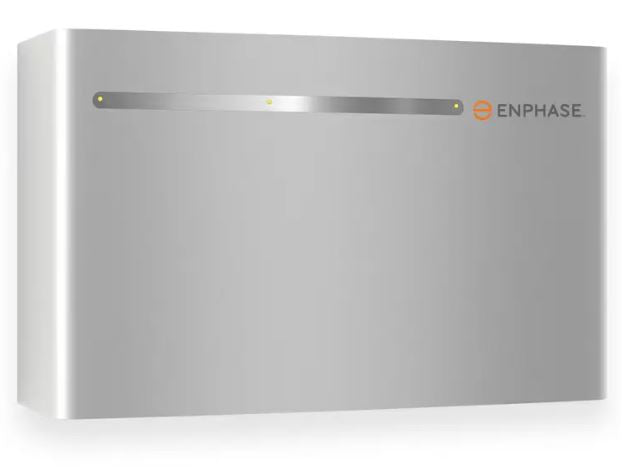

Enphase, Encharge 10.5kWh Lithium Iron Phosphate (LFP) Battery

SKU: ENCHARGE-10-1P-NA
Enphase, Encharge 10.5kWh Lithium Iron Phosphate (LFP) Battery
Enphase, Encharge 10.5kWh Lithium Iron Phosphate (LFP) Battery
Enphase, Encharge 10.5kWh Lithium Iron Phosphate (LFP) Battery

Enphase, Encharge 10.5kWh Lithium Iron Phosphate (LFP) Battery

SKU: ENCHARGE-10-1P-NA
Regular price $13,660.00
/
Tax included.

The Encharge 10™ all-in-one AC-coupled storage system, comprised of three base Encharge 3™ storage units, provides a total usable energy capacity of 10.1kWh and twelve embedded grid-forming microinverters. Connect multiple Encharge 10 storage systems to maximize backup potential for whole home backup.

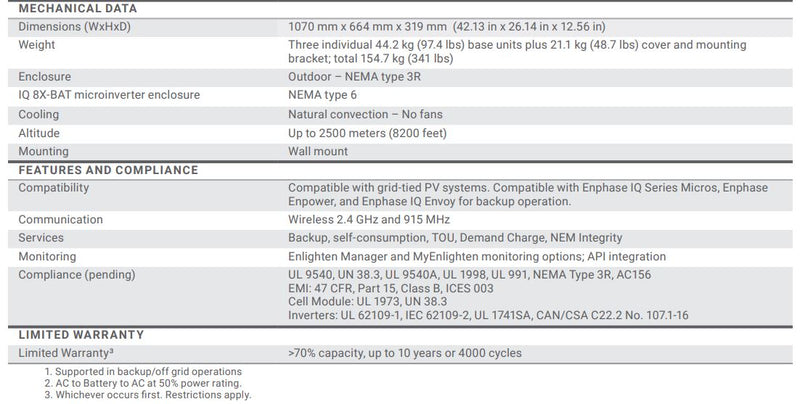

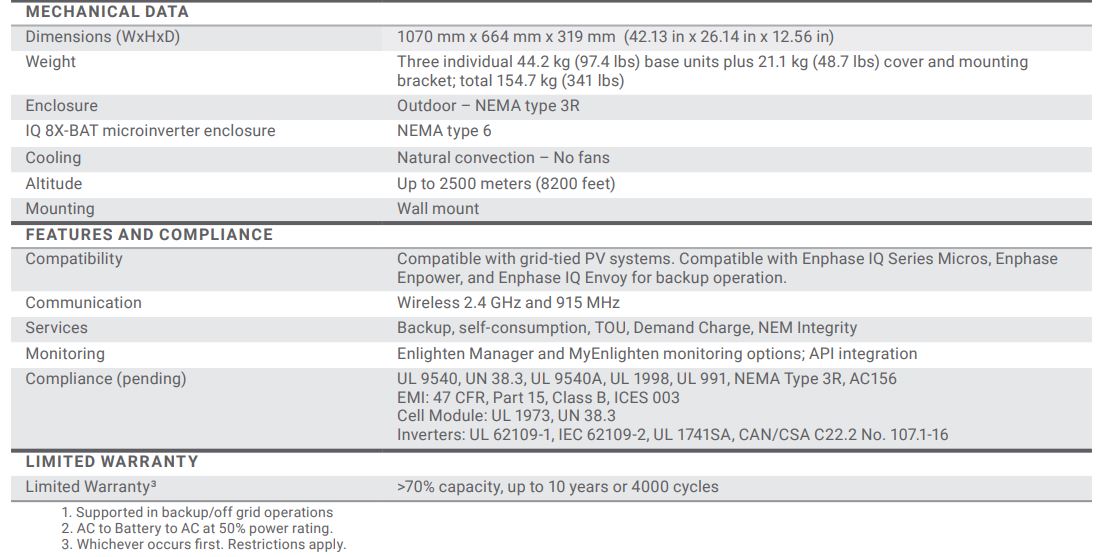

Technology Lithium Iron Phosphate (LFP) Battery
Dimensions 43.13 x 26.14 x 112.56 Inches
Weight 97.4 lbs
Weight w/ Cover & Mounting Bracket 116 lbs
Enclosure Outdoor - NEMA 3R
Cooling Natural Convection  - No Fans
Mounting Wall Mount
Compatibility Grid-Tied PV Systems, Enphase IQ Series Micros, Enphase Enpower, and Enphase IQ Envoy for Backup Operation
Communication Wireless 2.4 GHz and 915 MHz
Services Back-up, Self-Consumption, TOU, Demand Charge, NEM Integrity
Monitoring Enlighten Manager and MyEnlighten Monitoring Options; API Integration

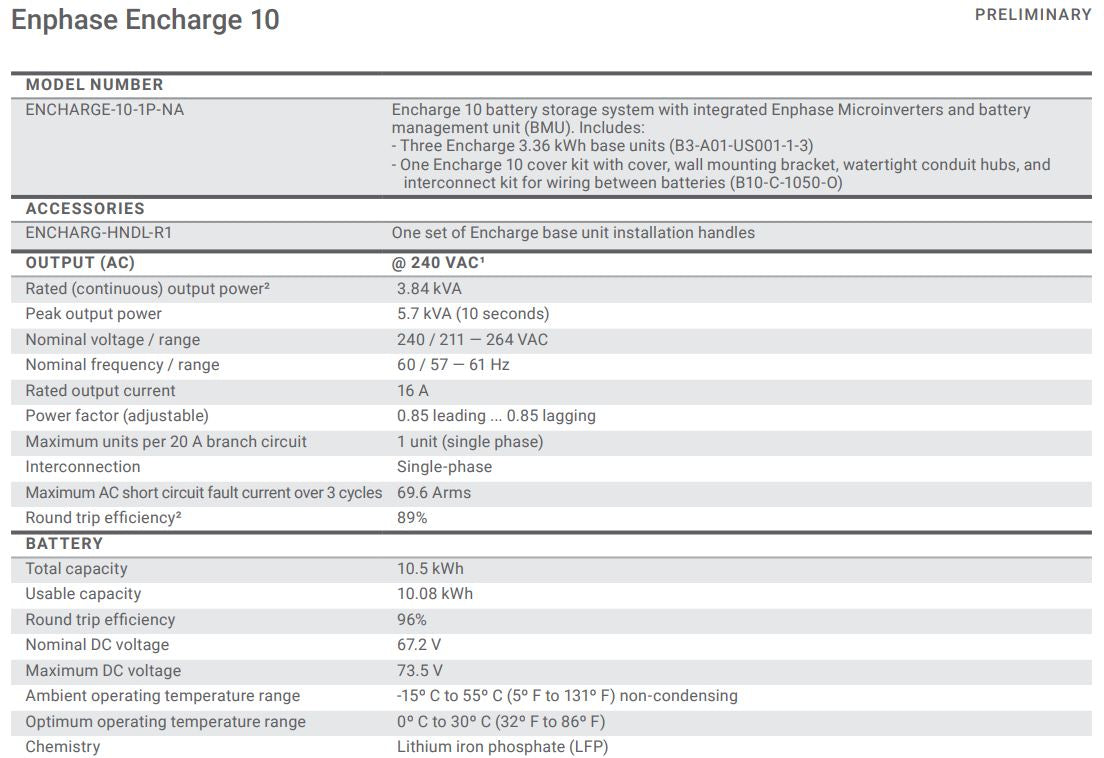

Electrical Information
Output (AC)
Rated (Continuous) Output Power 3.84 kVA
Peak Output Power 5.7 kVa (10 Seconds)
Nominal Voltage / Range 240/211 - 264 VAC
Nominal Frequency / Range 60/57 - 63 Hz
Rated Output Current 16 Amps
Power Factor (Adjustable) 0.85 Leading ... 0.85 Lagging
Max. Units per 20 A Brach Circuit 1 Unit (Single Phase)
Round Trip Efficiency 89%
Battery
Total Capacity 10.5 kWh
Usable Capacity 10.08 kWh
Round Trip Efficiency 96%
Max. DC Voltage 73.5 Volts
Ambient Operating Temperature -15º C to 55º C (5º F to 131º F) Non-Condensing
Optimum Operating Temperature 0º C to 30º C (32º F to 86º F)
Chemistry Lithium Iron Phosphate (LFP)
