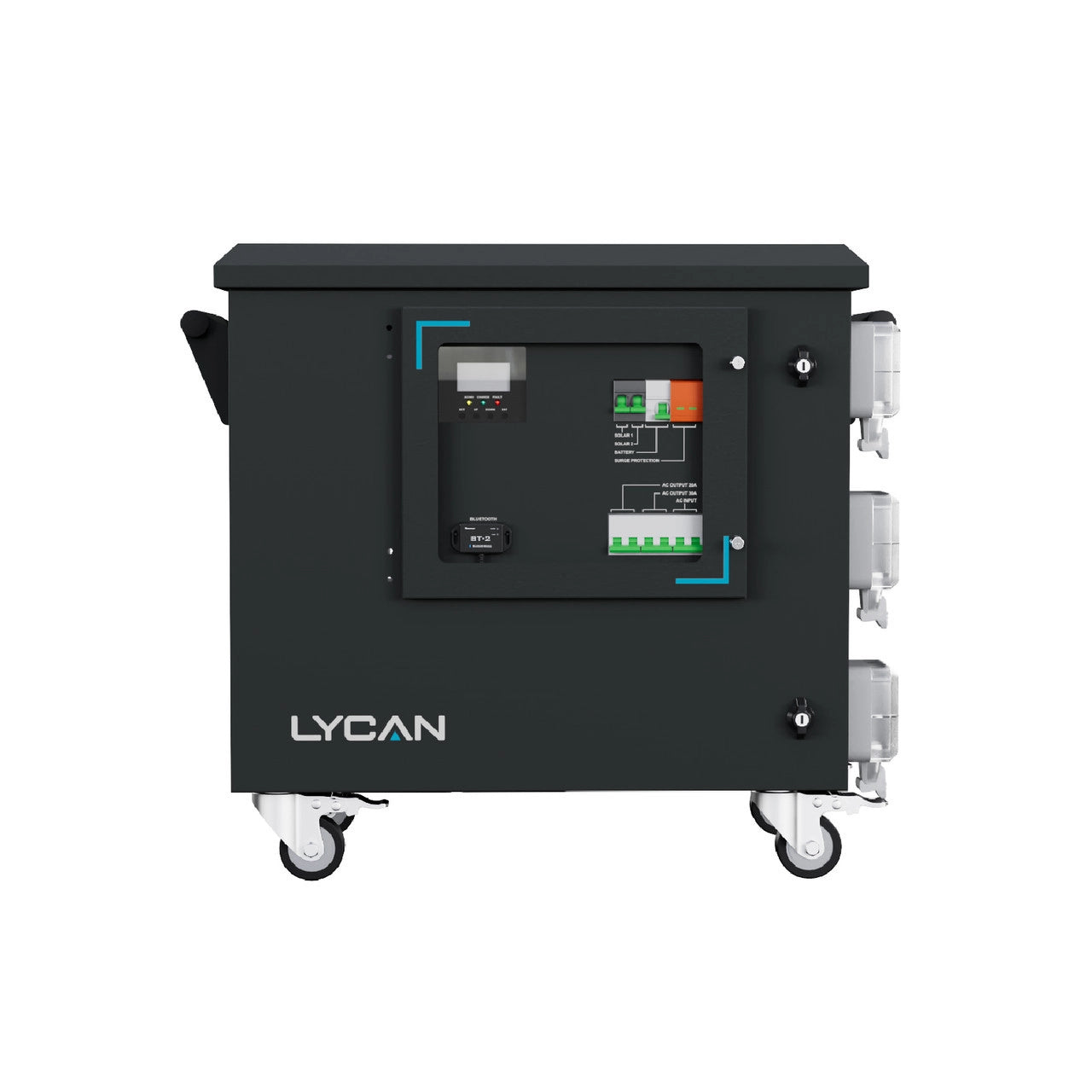

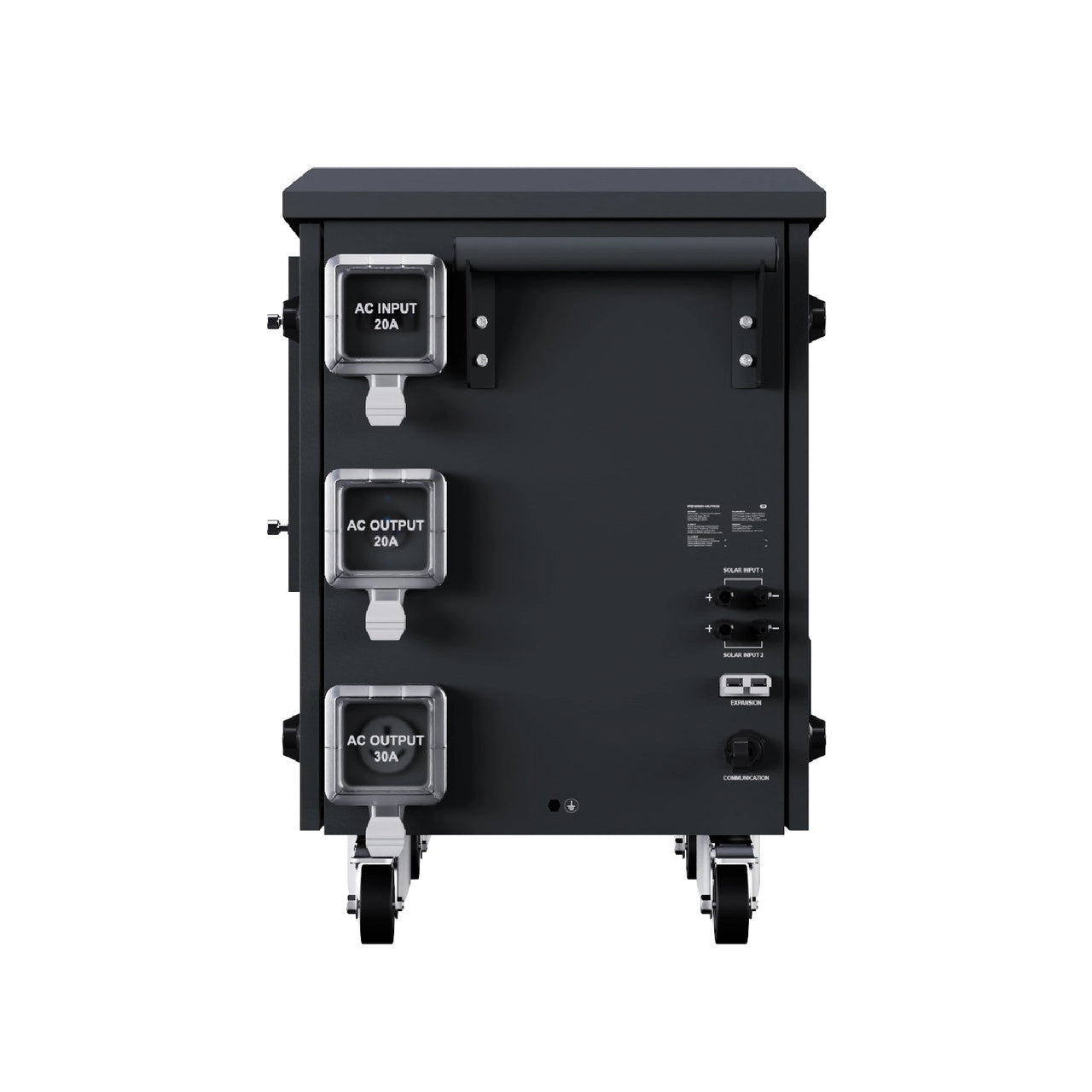

Lycan 5000 Power Box
SKU: RPB4835OA-48LFPA12S-US
The Renogy LYCAN 5000 Power Box is an all-in-one energy storage system specially designed to supply power during emergencies, power outages, or to provide power for off-grid homes. With a 4.8kWh capacity and a 3500W pure sine wave AC output, the LYCAN can deliver reliable power to most home appliances. Connecting LYCAN to both solar panels and AC outlets can further shorten the charging time to 1 hour from 0% to 80%.
RENOGY LYCAN |
|
GENERAL |
|
Model: RPB4835OA-48LFPA12S |
Dimension: 32.9 x 20.0 x 28.5 inch / 835 x 508 x 724 mm |
Weight: 264.6 lbs. / 120 kg |
Protection Rating: IP55 |
Cooling Method: Fan |
Operating Temperature Range: 14°F~122°F / -10°C~50°C |
Operating Relative Humidity Range: 5%~95% |
Expansion Connector: Anderson 120A Connector, RJ45 Female Connector |
Expansion Capability: 19.2KWh |
Bluetooth Module: DC Home APP. Communication Range 82 ft. / 25 m |
Self Consumption: 25W (Power Saving Mode) |
Enclosure Security: Keyed Cam Lock |
Installation Environment: Indoor/Outdoor |
|
| BATTERY | |
Battery Type: Lithium Iron Phosphate |
Nominal Battery Voltage: 48VDC |
Rated Battery Capacity: 100Ah |
Rated Battery Energy: 4.8KWh |
Cycle Life: 4500 Cycles (80% DOD, 80% EOL, 0.2C, 25°C) |
|
| POWER OUTPUT | |
Rated AC Output Voltage: 120VAC |
Rated AC Output Frequency: 50Hz/60Hz (Adjustable) |
Rated Output Power: 3500W |
Peak AC Output Power: 7000W |
| POWER INPUT | |
Rated AC Input Voltage: 110VAC/120VAC |
Rated AC Input Frequency: 50Hz/60Hz |
Maximum AC Bypass Current: 20A |
Maximum Solar Input Power: 4400W |
Maximum Battery Charge Current (Solar): 80A |
Maximum Battery Charge Current (Total): 100A |
| WARRANTY | |
Lycan: 3 Year Material and Workmanship Warranty |
|
| ACCESSORIES | |
Handle: 1 |
Handle Installation Screws (4): 4 X M8 x 1.25 x 20 mm |
IEC C19 to NEMA 5-20P Power Cable: 10ft., 12AWG |
Keys: 2 |
| CERTIFICATIONS | |
48V 50Ah Smart Lithium Iron Phosphate Battery: UN38.3, MSDS. FCC, PSE, CE |
48V 3500W Solar Inverter Charger: FCC, RoHS |
