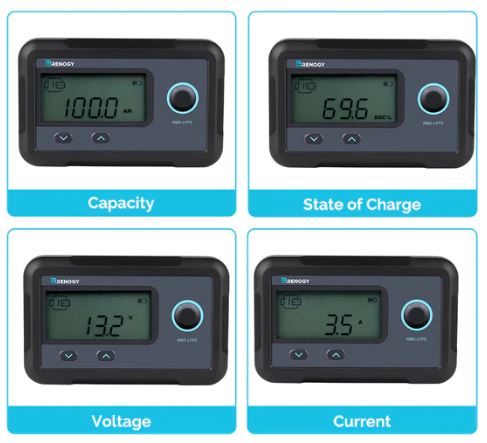

The Renogy Monitoring Screen for Smart Lithium Battery Series is a high precision meter designed for Smart Lithium Iron Phosphate Batteries in off-grid energy storage systems. Instead of measuring the current flowing in/out of the battery bank using a shunt, it can communicate directly with the battery management system (BMS) and obtain more accurate state of charge (SoC) readings compared to traditional battery monitors. Other battery bank information including voltage, current, capacity, remaining time, warning code, and number of paralleled batteries are also available on the monitoring screen to help users avoid abnormal conditions and extend the lifetime of battery bank.
Note: The monitoring screen is ONLY compatible with the Renogy Smart Lithium Iron Phosphate Batteries sold on renogy.com after April 15th 2020.
MECHANICAL SPECIFICATIONSCommunication Port: RJ45 (RS485 Protocol)
Display: Backlit LCD
User Interface: 2 Front Panel Menu Buttons, 1 Power Button
Mounting System: Wall Mount

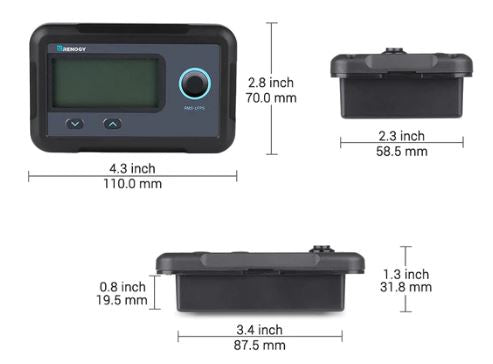

Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm
Weight: 0.14 lbs / 62 g
Supply Voltage: 12VDC
Supply Current: 30mA
Power Consumption: <1W
Operating Temperature Range: -4°F~113°F / -20°C~45°C
Voltage Accuracy: ±0.1V
Current Accuracy: ±0.1A
