The Smart Flower
Price includes complete installation
Smartflower is a revolutionary solar energy system that follows the sun from sunrise to sunset. Beneath its elegant design is a remarkably intelligent system; fully integrated with smart features that produce up to 40% more power. There’s no better way to showcase your commitment to sustainability than with a Smartflower.
Catch every last ray of sunlight
The smart system is the core of Smartflower’s brilliance. Every morning at sunrise, Smartflower automatically unfolds. The dual-axis system allows Smartflower’s solar panels to follow the sun across the sky throughout the day, always maintaining
the optimal 90° angle to the sun. This makes Smartflower produce up to 40% more
power than a conventional solar system and capable of producing 4,000-6,400 kWh/year,
The world’s most intelligent solar system
Simple.
Our certified Smartflower technicians can set it up in just a few hours, providing you with immediate energy independence.
Efficient.
Smart tracking helps Smartflower stay at the optimal angle to the sun throughout the day for 40% more power.
Independent.
Self-cleaning and convection cooling keep Smartflower running at maximum efficiency.
Elegant.
Unique and powerful features packaged in an award-winning design.

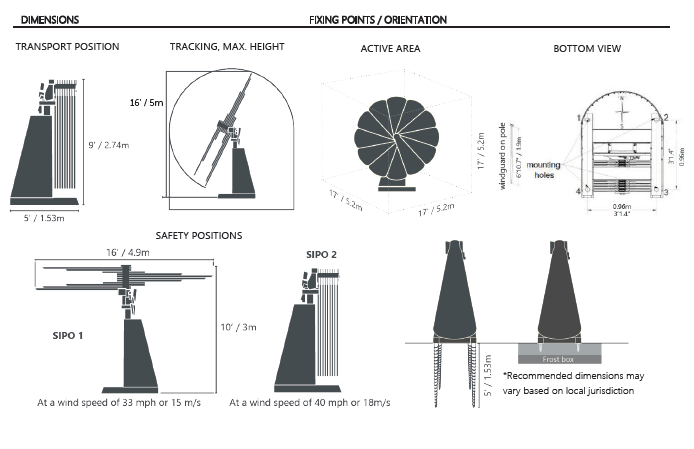

Smartflower Technical Data
Nominal output |
2.5 kWp * |
Output with 2-axis tracking |
4,000-6,500 kWh / a** |
| SYSTEM | |
Panel Type |
Glass / Backsheet |
| Panel Power Output Warranty | 25 years |
| Panel Product Warranty | 10 years |
| Cell type | Monocrystalline PERC |
| Inverter | Integrated with unit |
| System Weight | 1,550 lb | 703 kg |
| System Warranty | 2 years |
| System self-consumption per year | Approx. 400 kWh |
| Agency Approval | UL 3703, UL 1703, UL 1004, CEC, CSA, CE, FCC Class B |
| APPLICATION AREA | |
| Humidity | 0 – 95% (non condensing) |
| Shipping Dimensions | |
| Vertical Packaging | 1650 x 1190 x 2680 |
| Horizontal Packaging (special order) | 2819 x 1168 x 1854 |
| Maximum altitude (Primo) | 13,123 ft. | 4000 m |
| Maximum altitude (Symo) | 7,874 ft | 2400 m |
| Electrical Connections | |
| Up to 100 ft (Primo 3.8) | 4 x 12 AWG (L1, L2, N, PE) |
| Up to 100 ft (Primo 3.0) | 3 x 2.5-16mm (L1, N, PE) |
| Up to 100 ft (Symo 3.0) | 5 x 2.5 -16mm (L1, L2, L3, N, PE) |
| From 100 Ft onwards | Accommodate for voltage drop |
| The grid connection must be secured with 20A (16A for Primo 3.0 and 10A for Symo 3.0) circuit breaker. |
Local standards must be followed |
| Wind guard incl. 32 ft / 9.75m cable length. | |
| Network / LAN cable recommended (CAT 6e or CAT7), RJ45 connector. | |
| *If using a 208 VAC connection, please contact Smartflower before installation | |
| Smartflower Technical Data Sheet |
