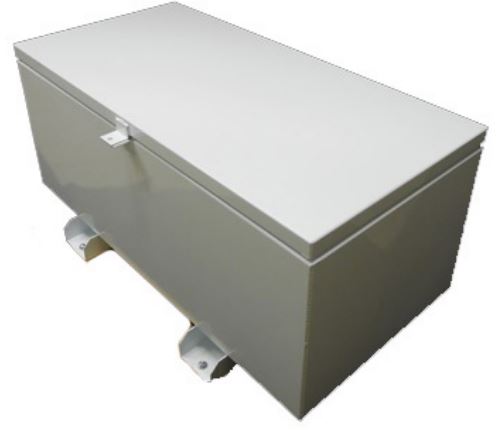

SunWize T-4X8D Battery Enclosure - NEMA3R, 4-battery, top-opening
The SunWize Power & Battery T-4X8D aluminum enclosure features a white powder-coated finish and a NEMA3R rating for indoor or outdoor use. The T-4X8D enclosure can mount on any flat surface. It also features a hinged, pad-lockable door and passive cooling ventilation. Two left side ½” electrical knockouts.
The T-4X8D enclosure can hold a variety of battery sizes with plenty of space left over for controls equipment on its backplate. The side-mounted backplate measures 15” x 6.5”
and the optional top-mounted backplate measures 17.0” x 17.0”.
20.5″H × 48.3″W × 23.8″D
Two rear 1/2” electrical knockouts
NEMA3R aluminum, powder-coated finish
Hinged, pad-lockable doors with dust filters, and a gasketed door
|Battery Group Size||8D or 4D|
|Enclosure Style||Top Opening|
|Finish||White Powder Coated|
|4D Battery Qty||4|
|8D Battery Qty||4|
|L16 Battery Qty||8|
