SOLARIA POWERXT-365R-AC 365W BLACK

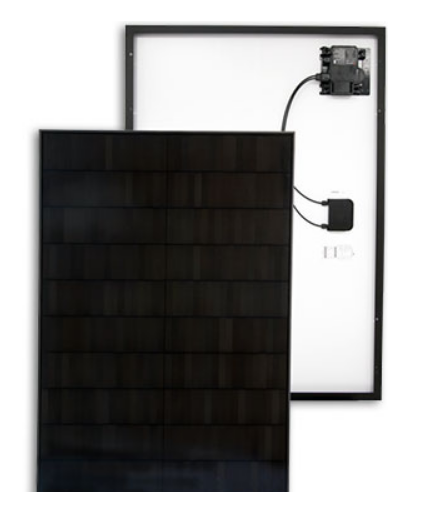

The Solaria PowerXT AC Panel combines the latest cutting-edge IQ7+ microinverter technology from Enphase with the premium high efficiency and superior aesthetics of Solaria solar panels. The PowerXT AC panel is an elegant product that reduces installation time by combining the inverter, panel, and monitoring. Achieving 20% efficiency, Solaria PowerXT AC solar panels are one of the highest power AC panels in the residential solar market. Compared to conventional panels, Solaria PowerXT panels have fewer gaps between the solar cells and are manufactured with black back sheet and frames, giving them a striking appearance and higher efficiency.
Higher Efficiency, Higher Power
Solaria PowerXT AC panels achieve up to 20% efficiency; conventional panels achieve 15%– 17% efficiency. Combined with Enphase IQ7+ microinverter, the Solaria PowerXT AC Panel is one of the highest power and most efficient AC panels available.
Easy to Install
The integrated Enphase IQ7+ microinverter reduces installation costs due to fewer
balance of system components, improved two-wire cabling, and compliance with NEC
2014 & 2017 rapid shutdown requirements.
Smart Grid Ready
Meets CA Rule 21 and complies with advanced grid support, voltage, and frequency ride-through requirements. Remotely updates to respond to changing grid requirements and is configurable for varying grid profiles.
Improved Aesthetics
Compared to conventional panels, the Solaria PowerXT AC Panel has a more uniform
appearance and superior aesthetics.
Durability and Reliability
Industry-leading 25-year warranty with a million hours of microinverter testing.
PID Resistant
Solaria PowerXT panels are PID resistant. This ensures stable and predictable energy production over time.
| Performance at STC (1000W/m2, 25° C, AM 1.5) | |
| Solaria PowerXT- | 365R-AC |
| Max Power (Pmax) | 365 Watt |
| Efficiency | 20.2 % |
| Open Circuit Voltage (Voc | 48.0 |
| Short Circuit Current (Isc) | 9.58 |
| Max Power Voltage (Vmp) | 39.9 |
| Max Power Current (Imp) | 9.16 |
| Power Tolerance | -0/+3 |
| AC Output Data: Enphase IQ7+Microinverter | |
| Peak Output Power (VA) | 295 VA |
| Max Continuous Power | 290 VA |
| Nominal Voltage | 240 V |
| Max Continuous Current | 1.21 A |
| Nominal Frequency | 60 Hz |
| Extended Frequency Range | 47-68 Hz |
| Peak Efficiency | 97.5% |
| Power Factor / Adjustable | 0.85 leading...0.85 lagging |
| Max Branch Circuit | 20 A |
| Max Panels/Circuit | 13 |
| Operating Temperature | -40 to +65 C |
| Features | |
| Communications | Power Line |
| Monitoring | Enlighten Manager |
| Compatible w/Enphase Q Envoy | |
| Disconnecting Means | Approved by UL for AC and DC load break as required byNEC article 690 |
| Mechanical Characteristics | |
| Cell Type | Monocrystalline Silicon |
| Dimensions (L x W x H) | 63.8" x 43.9" x 1.57" 1621mm x 1116mm x 40mm |
| Weight | 22 kg / 48 lbs |
| Glass Type / Thickness | AR Coated, Tempered / 3.2mm |
| Frame Type | Black Anodized Aluminum |
| DC Cable Type / Length | Q DC / 815(+), 740mm |
| AC Cable Type / Length | Q AC / 2000mm |
| Connector Type | MC4 |
| Junction Box | IP67 / 4 diodes |
| Front Load | 5400 Pa / 113 psf* |
| Rear Load | 3600 Pa / 75 psf* |
| Certifications / Warranty | |
| Certifications | UL 1703/UL1741/CEC CAN/CSA-C22.2 |
| NEMA | 3R |
| Fire Type (UL 1703) | Type 1 |
| Warranty | 25 Years |
| Packaging | |
| Stacking Method | Horizontal / Palletized |
| Panels/ Pallet | 25 |
| Pallet Dims (L x W x H) | 65.7" x 45.3" x 48.4" 1668mm x 1150mm x 1230 mm |
| Pallet Weight | 615 kg / 1360 lbs |
| Pallets / 40-ft Container | 28 |
| Panels / 40-ft Container | 700 |
