SolarEdge's single-phase inverter with HD-Wave technology, winner of the prestigious 2016 Intersolar award and the renowned 2018 Edison Award, breaks the mold of traditional inverters.

Using a novel power conversion technology that is based on a distributed switching and powerful DSP processing, the single-phase inverter is able to synthesize a clean sine wave that leads to a dramatic reduction in the magnetic and heavy cooling elements. This small and lightweight inverter enables simplified shipping and storing and one-person installation. The record-breaking 99% efficiency allows more energy production for an improved ROI.

Features

• Specifically designed to work with power optimizers
• Built-in module-level monitoring
• Highly efficient - 99% CEC weighted efficiency
• Up to 155% DC/AC oversizing allowed
• Longer strings (up to 6,000W per string on SE7600H)
• Integrated Arc Fault protection and Auto-Rapid Shutdown per NEC 2014/2017
• Faster commissioning with rapid pairing and 4 button touch panel
• Utilizes thin-film capacitors vs. electrolytic capacitors -minimal heat loss, more reliable
• Outdoor and indoor installation
• Standard 12 Year Warranty (extendable to 20 or 25 years - Click Here to purchase Extended Warranty)

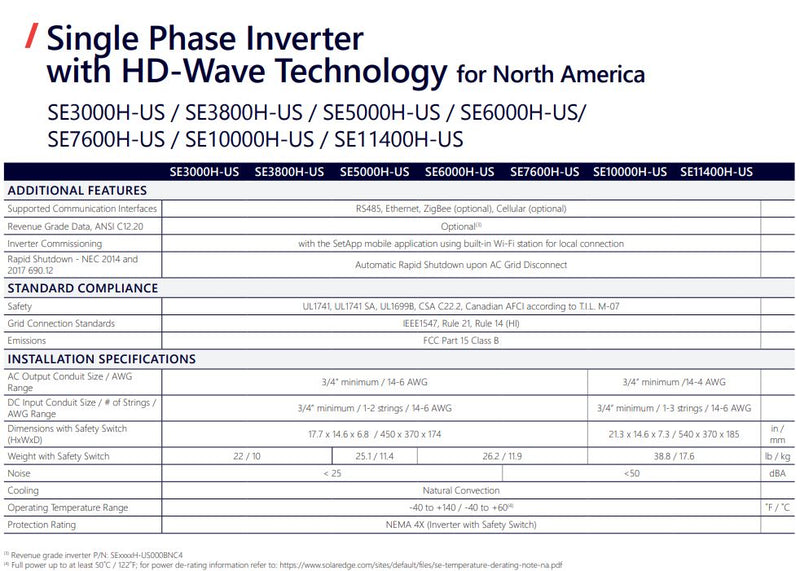

Technology: Single Phase String Inverter
Dimensions: 21.30 x 14.60 x 7.30 inches
Weight: 38.80 lbs
Noise: < 50 dBA
Cooling: Natural Convection
AC Output Conduit Size: 3/4" Minimum / 14-6 AWG
DC Output Conduit Size: 3/4" Minimum / 1-3 Strings / 14-6 AWG
Protection Rating: NEMA 4X (Inverter with Safety Switch)

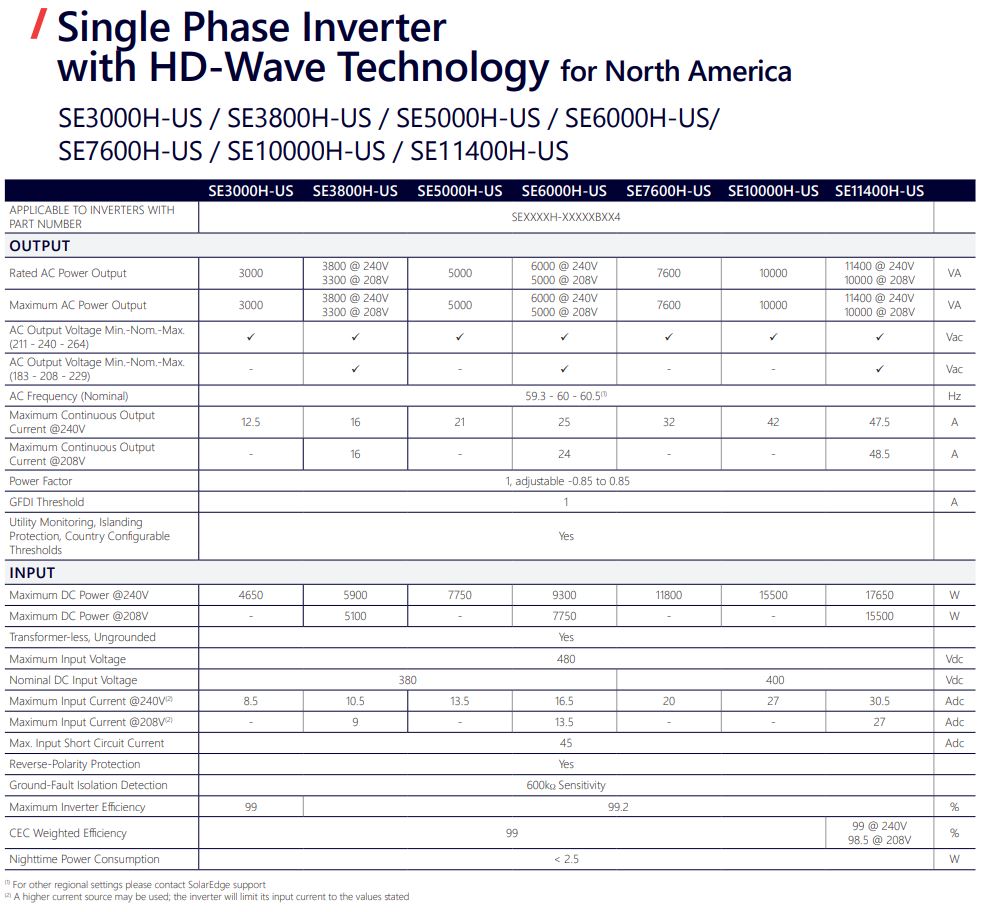

Electrical Information

Output
Rated AC Power Output: 10000VA
Maximum AC Power Output: 10000VA
AC Output Voltage: Minimum: 211VAC; Nominal: 240VAC; and Maximum: 264VAC
AC Frequency (Nominal): 59.3 - 60 - 60.5 Hz
Maximum Continuous Output Current @240V: 42.00 Amps
GFDI Threshold: 1
Utility Monitoring, Islanding Protection, County Configurable Set Points: Yes

Input
Maximum DC Power: 15500 Watts
Transformer-Less Ungrounded: Yes
Maximum Input Voltage: 480VDC
Nominal DC Input Voltage: 400VDC
Maximum Input Current @240V: 27.00 ADC
Maximum Input Short Circuit Current: 45 ADC
Reverse-Polarity Protection: Yes
Ground-Fault Isolation Detection: 600kΩ Sensitivity
Maximum Inverter Efficiency: 99.2%
CEC Weighted Efficiency: 99%
Night-Time Power Consumption: < 2.5 Watts
