Regular price $482.00
Tax included.

Models: SR961s / SR962s

Intelligent and Efficient Solar Water Heater Control

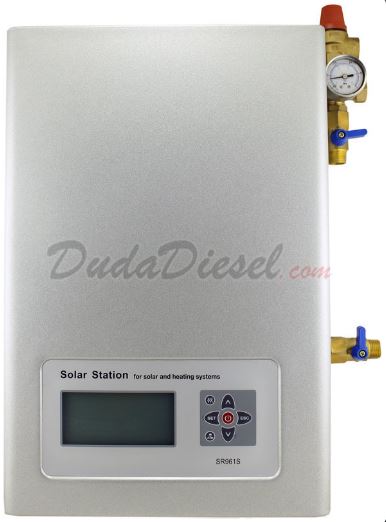

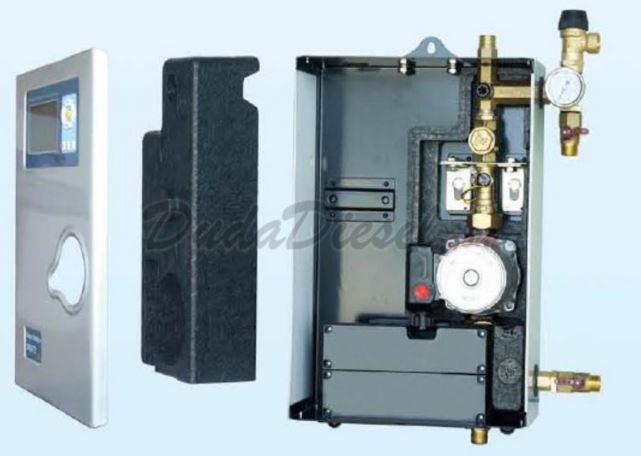

The SR961s/SR962s solar water heater working station utilizes an efficient design and intelligent controller for high-performance control of your solar water heater system. The station comes complete with a pressure gauge, charging/draining ports that utilize a check valve to ensure one-way flow during charging/operation, a connection for an expansion tank, efficient and reliable wilo pump (made in Germany), insulation cover, and a sleek metal enclosure.

Enjoy years of operation with efficient control of the circulation pump. This unit consumes less than 4 watts during operation. (The national average cost to operate this unit is no more than 30 cents a month!) Digital speed control of the pump allows for the most efficient use of your pump's electrical power. When high pumping speeds are needed, it can circulate quickly to obtain heat. When heating is average, the pump levels out to a nice slow speed for efficient and even operation.

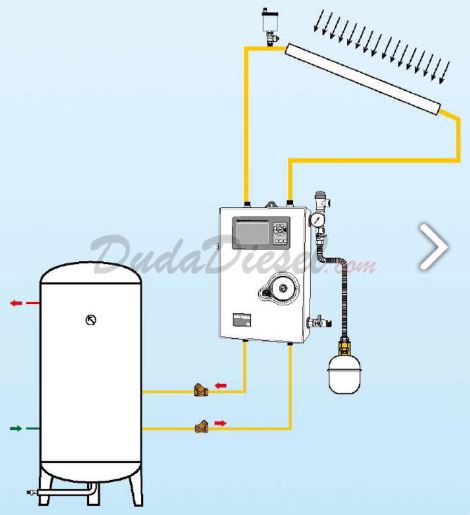

The SR962s model has a two pipe system. The 2nd pipe is for the return from the solar collector, which has an additional sensor for detecting the temperature of the fluid returning from the collector.


 SR961s/SR962s Technical Data
420mm (16.5")
280mm (11")
140mm (5.5")
Distance between flow/return
160mm (6.2")
Max Pressure
10 Bar (145 psi)
Max Temperature
130°C (266°F)
Pipe Connections
2 x G1/2 (SR961s)
4 x G1/2 (SR962s)
Safety Valve Pressure
6 Bar (87psi)
Connector for Expansion Tank
G1/2, male
Type of Pump
Wilo RS 15/16
Max Flow Rate
2.5 t/h (11 gpm)
*Max Pump Head
5.5m (18 ft)
Max Operation Pressure
10 Bar (145 psi)
Power Supply
110v AC 50/60 Hz or 220v AC 50/60Hz
Ball Valves
Flow Meter
0.1~20 L/min
Flushing Connections
Thermal Insulation
Front Cover Material
Pipe Sensor Types
NTC10 K, B=3950
 *Much more head can be obtained in a closed loop, especially with fluid pressure built into the system


Manufacturer's Specifications
