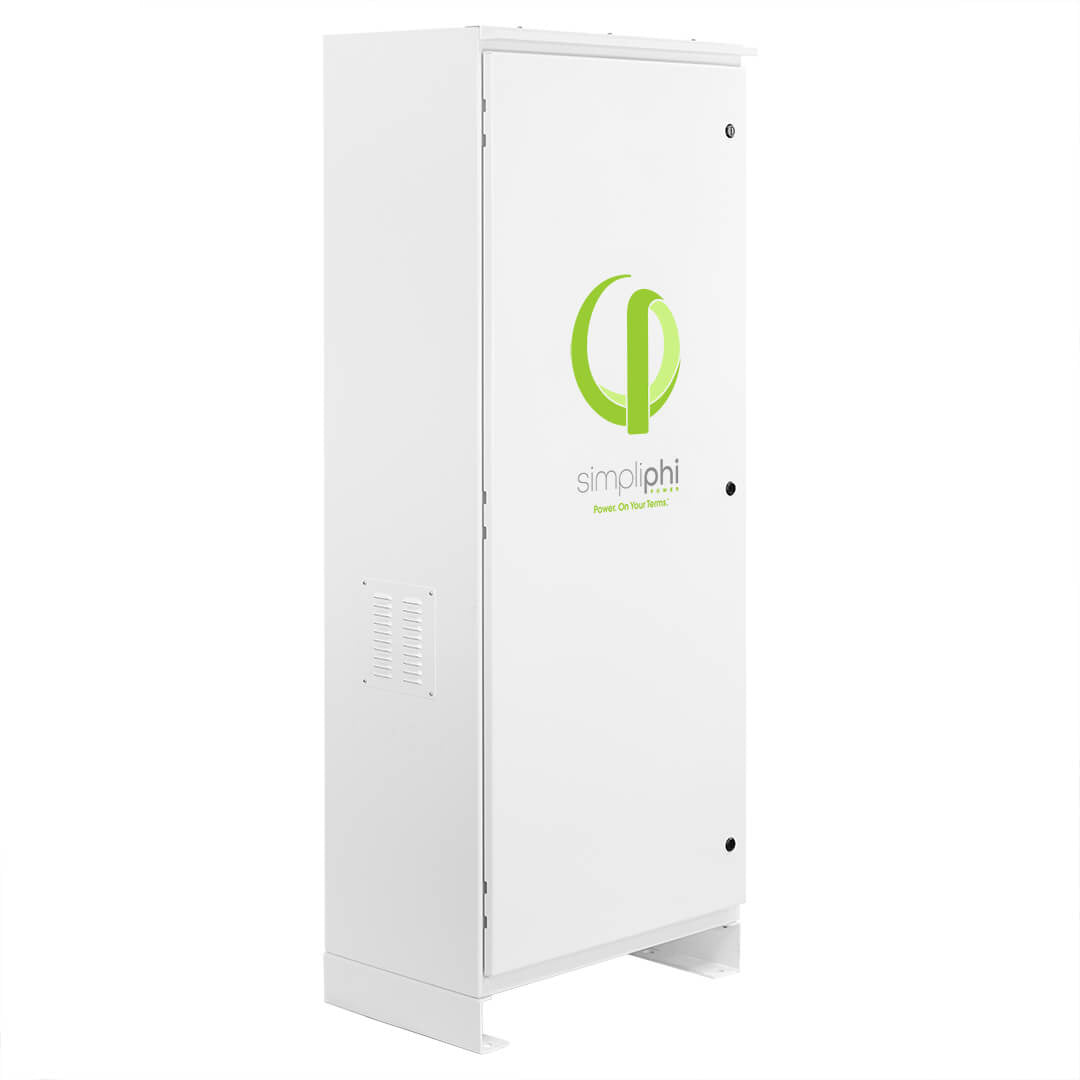

SIMPLIPHI, ACCESS WITH SCHNEIDER XW+ 6848, 120/240VAC, 3 PHI 3.8, LFP BATTERIES (LITHIUM IRON PHOSPHATE)

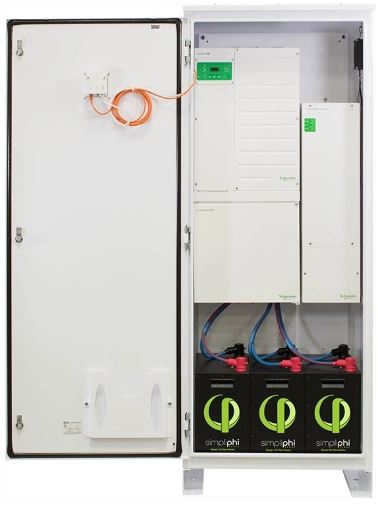

SIMPLIPHI, ACCESS WITH SCHNEIDER XW+ 6848, 120/240VAC, 3 PHI 3.8, LFP BATTERIES (LITHIUM IRON PHOSPHATE), 1 MPPT 80/600 CHARGE CONTROLLER, 3R ENCLOSURE, UL-1973, A-3PHI-CC-SCH
A fully integrated energy storage & management system that allows for solar PV power to be self-consumed in a DC-coupled system, curtailing PV production to prevent the export of power to the grid. Compatible with both string inverters and micro-inverters in an AC-coupled system, providing a backup power source.
SimpliPhi Power designs and manufactures efficient, non-toxic and enduring energy storage and management systems that utilize lithium ferro phosphate (LFP). Based in California, SimpliPhi combines non-hazardous LFP chemistry with its proprietary cell and battery architecture, power electronics, battery management system (BMS) and manufacturing methods to create safe, reliable, durable and highly scalable on-demand power solutions. Available for the residential, commercial, military and emergency response markets, SimpliPhi storage solutions have been rigorously tested and passed operational performance requirements by the U.S. Army and Marine Corps. Integral to all SimpliPhi solutions is a proprietary management system that further optimizes the life-cycle, round-trip efficiency rate, performance and durability of its batteries. SimpliPhi PHI 3.8 kWh 48V 60 Amp batteries are Certified to UL 1973 Standard.
Full Package Description:
SimpliPhi, AccESS with Schneider XW+ 6848, 120/240Vac, 3 Phi 3.8, LFP Batteries (Lithium Iron Phosphate), 1 MPPT 80/600 Charge Controller, 3R Enclosure, UL-1973, A-3PHI-CC-SCH
| SPECIFICATIONS | ACCESS 1.0 (x3 PHI 3.8) | ACCESS 2.0 (x4 PHI 3.8) |
General |
||
Dimensions |
29.5” W x 76”H (w/feet) x 20” D /<br>75 cm W x 193 cm H x 51 cm D |
29.5” W x 76”H (w/feet) x 20” D /75 cm W x 193 cm H x 51 cm D |
Weight |
600 lbs. (272.16 kg.) w/o batteries |
600 lbs. (272.16 kg.) w/o batteries |
Enclosure Rating |
NEMA 3R Outdoor Rated |
NEMA 3R Outdoor Rated |
Mounting |
Free-standing or Pad-mounted |
Free-standing or Pad-mounted |
Inverter |
||
Schneider Electric |
Conext XW Pro |
Conext XW Pro |
Application |
On or Off-Grid |
On or Off-Grid |
AC Connections |
1 Grid Port, 1 Generator Port |
|
AC Output |
48 A (120 VAC) / 27 A (240 VAC), 60 Hz |
1 Grid Port, 1 Generator Port |
Rated Output Power |
6.8 kW Continuous |
48 A (120 VAC) / 27 A (240 VAC), 60 Hz |
Max Output Charging Current |
140 ADC |
6.8 kW Continuous |
CEC Weighted Efficiency |
92.5% |
92.5% |
Battery |
||
SimpliPhi Power |
(x3) PHI 3.8 kWh-48V |
(x4) PHI 3.8 kWh-48V |
UL Rating |
ETL Certified to UL 1973 Standard |
ETL Certified to UL 1973 Standard |
Rated kWh Capacity @ C/2 |
11.4 kWh |
15.2 kWh |
Max Combined Output Power |
5.7 kW DC |
7.6 kW DC |
Max Combined Charge Current |
112.5 ADC |
150 ADC |
Charging Temperature |
32°F to 120°F (0°C to 49°C) |
32°F to 120°F (0°C to 49°C) |
Depth of Discharge |
Up to 100% DoD |
Up to 100% DoD |
Round Trip Efficiency |
98% |
98% |
Cycle Life |
10,000+ cycles (@ 80% DoD) |
10,000+ cycles (@ 80% DoD) |
Warranty Period |
10 years |
10 years |
Solar (select models) |
||
Schneider Electric Charge Controller |
Conext MPPT 80 600 |
Conext MPPT 80 600 |
Max Connected PV Power |
4.8 kW |
4.8 kW |
Max Charge Current |
80 ADC |
80 ADC |
Max Operating PV Array Voltage |
195 to 550 VDC |
195 to 550 VDC |
Max Open Circuit PV Array Voltage |
600 VDC |
600 VDC |
System Monitoring |
||
Set Up/Monitor (no internet) |
System Control Panel (SCP) |
System Control Panel (SCP) |
Battery Monitor |
Conext Battery Monitor |
Conext Battery Monitor |
Internet Connected Monitor/Command |
ComBox or Gateway |
ComBox or Gateway |
Options |
||
Conext Automatic Generator Star |
Conext AGS |
Conext AGS |
Schneider Electric Charge Controller |
Conext MPPT 80 600 |
Conext MPPT 80 600 |
..
