Side of Pole Mount, Easy Mount - Heavy-duty 27.5″ aluminum mount for 2″ – 10″ poles

SKU:
Side of Pole Mount, Easy Mount - Heavy-duty 27.5″ aluminum mount for 2″ – 10″ poles
Side of Pole Mount, Easy Mount - Heavy-duty 27.5″ aluminum mount for 2″ – 10″ poles
Side of Pole Mount, Easy Mount - Heavy-duty 27.5″ aluminum mount for 2″ – 10″ poles
Side of Pole Mount, Easy Mount - Heavy-duty 27.5″ aluminum mount for 2″ – 10″ poles

Side of Pole Mount, Easy Mount - Heavy-duty 27.5″ aluminum mount for 2″ – 10″ poles

SKU:
Regular price $0.00
/
Tax included.

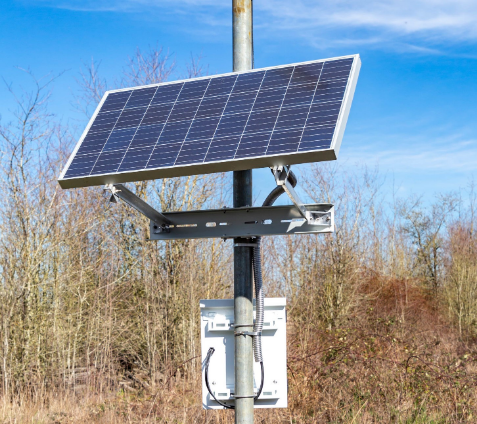

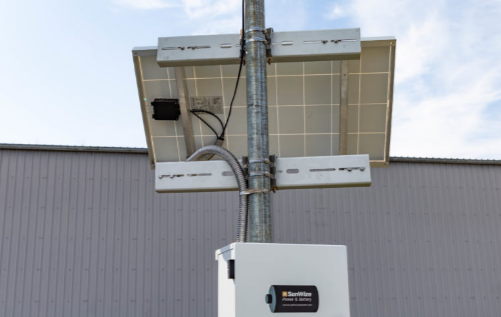

SunWize has released our latest-generation of Side of Pole Mounts for industrial applications. SunWize solar mounts are weather resistant and provide strength and durability in extreme environments. This latest generation includes the Easy Mount Bracket. This bracket is the latest evolution in our Side of Pole mount technology.

Quality and Reliability
Universal slotted design fits 40W to 160W PV Modules
• Heavy duty aluminum provides strength and durability
• Stainless steel fastener hardware ensures long life

Features
• Pole saddle brackets

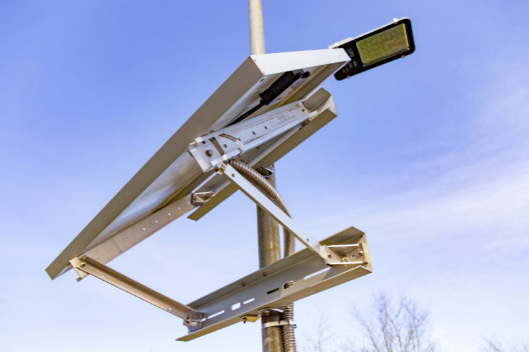

• Adjustable tilt angle between 25° to 90°
from horizontal

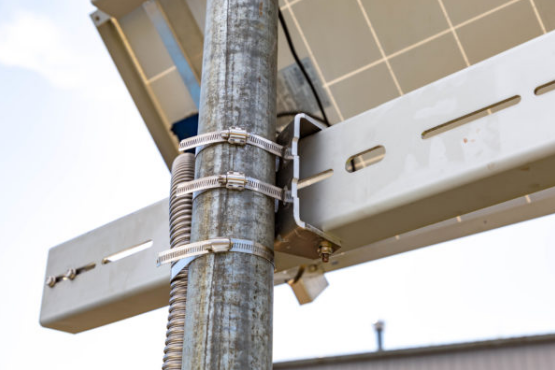

• Adjustable band clamps
• Easy-mount bracket for quick installation

These USA made Side of Pole mounts include the Easy Mount Solar Bracket, designed to reduce installation time. This latest generation bracket replaced four-pole adapter kits in our previous lineup, reducing installation time, and increasing ease of adjustment.

Installation Features
• Easier to adjust
• Less required inventory
• Shorter installation time
• Reduced number of parts

Part # 240047
 Rail Length (inches) Pipe Size (sch40) Weight (lbs)
27.5 8-10  23



 Finish Mill-Finish
Mounting Type Side of Pole
Warranty 1 Year
Mounting Pole Dia 2"-6" Sch. 40, 8"-10" Sch. 40



When properly installed the mounts provide a stable base for the PV array in high wind zones. Mounts can be fastened to a pole, on the ground, a wall or roof depending on the style chosen. Adjustable tilt mounts can be positioned to an appropriate angle to maximize seasonal solar radiation. Fixed position mounts cannot be adjusted. All Sunwize brand mounts are of aircraft grade structural members in heavy gauge-mill finish aluminum supplied with type stainless steel fasteners.





 310110-SF-SOP-Mount-Manual.pdf
SWPB-27.5-SoP-042020_datasheet.pdf
