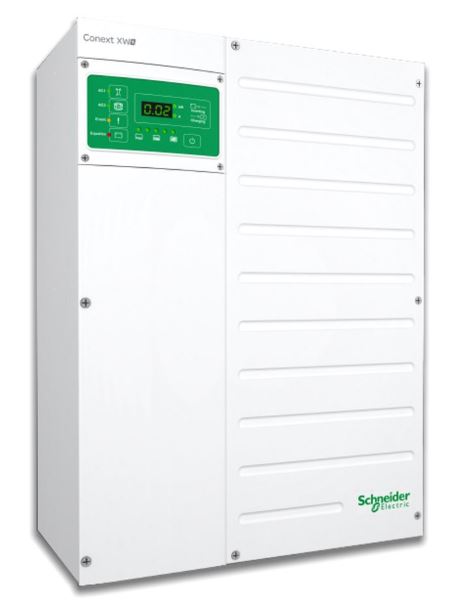

SCHNEIDER ELECTRIC CONEXT XW+ 6848 INVERTER/CHARGER 48V 120/240 VAC

SKU: XANXW6848
SCHNEIDER ELECTRIC CONEXT XW+ 6848 INVERTER/CHARGER 48V 120/240 VAC
SCHNEIDER ELECTRIC CONEXT XW+ 6848 INVERTER/CHARGER 48V 120/240 VAC
SCHNEIDER ELECTRIC CONEXT XW+ 6848 INVERTER/CHARGER 48V 120/240 VAC

SCHNEIDER ELECTRIC CONEXT XW+ 6848 INVERTER/CHARGER 48V 120/240 VAC

SKU: XANXW6848
Regular price $2,595.00
/
Tax included.



ConextTM XW+ is an adaptable single-phase and three-phase inverter/charger system with grid-tie functionality and dual AC power inputs. Compatible solar charge controllers, monitoring, and automated generator control modules enable further compatibility.

From a single Conext XW+ unit to clusters up to 76.5 kW, the Conext XW+ is a scalable system that allows for the integration of solar capacity as required. Adaptable and scalable, the Schneider Electric Conext XW+ system is a complete solution for grid-interactive and off-grid, residential and commercial, solar and
backup power applications.

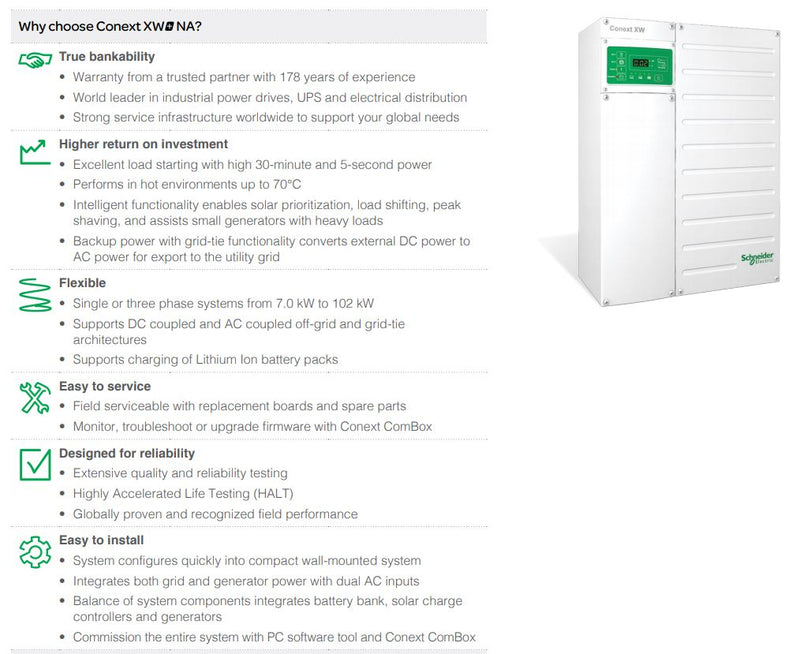

FEATURES:

  • Excellent load starting with high 30-minute and 5-second power
  • Improved battery management including support for Lithium-Ion technology
  • Superior balance of system integration with battery bank, charge controller, and generators, further simplifies installation
  • Supports DC coupled and AC coupled off-grid and grid-tie architectures
  • Intelligent functionality enables solar prioritization, load shifting, peak shaving, and assists small generators with heavy loads
  • Backup power with grid-tie functionality converts external DC power to AC power for export to the utility grid
  • Monitor, troubleshoot or upgrade firmware with Conext ComBox for XW+. For the XW Pro, the Conext Gateway is required.
  • System configures quickly into compact wall-mounted system
  • Integrates both grid and generator power with dual AC inputs
  • UL 1741-SA listing for PRO unit only
  • Peak efficiency 95.7%
  • 5 Year Warranty XW+/ 10 Year Warranty XW Pro

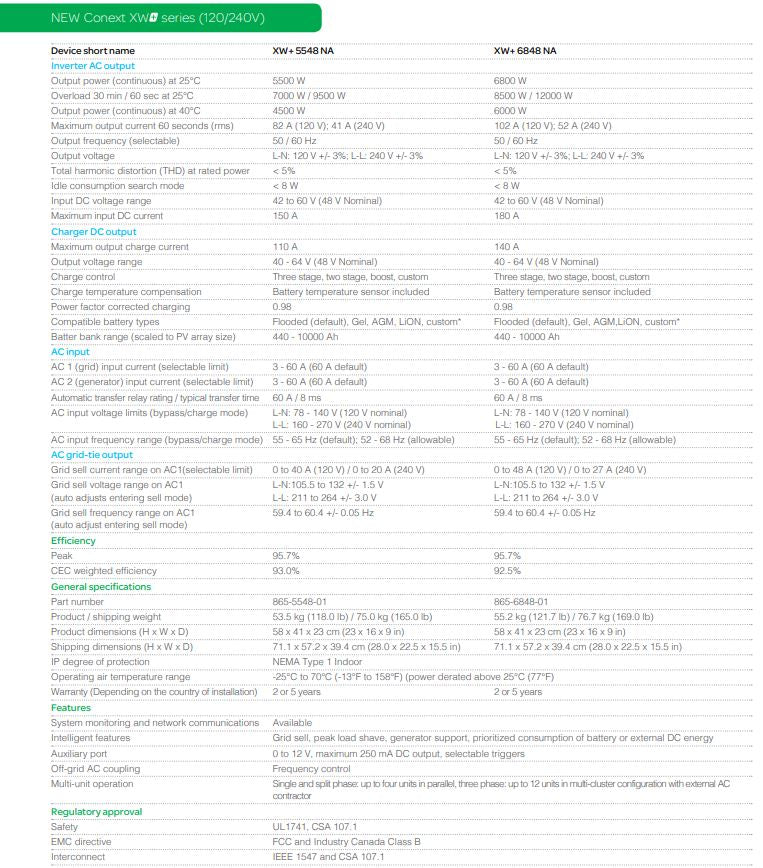

Electrical Information
Inverter AC Output 6848 XW+
Output power (continuous) at 25 °C 6800 W
Overload 30 min / 60 sec at 25 °C 8500 W / 12000 W
Output power (continuous) at 40 °C 6000 W
Output frequency (selectable) 50 / 60 Hz
Output voltage 120/240
Input DC voltage range 42 to 60 V (48 V Nominal)
Maximum output charge current 140A
Output voltage range 40 - 64 V (48 V Nominal)
Charge control Three stage, two stage, boost, custom
Maximum input DC current 180A
Charge temperature compensation Battery temperature sensor included
Compatible battery types Flooded (default), Gel, AGM, LiON
Battery bank range (scaled to PV array size) 440 - 10000 Ah
AC Input for 6848 XW+
AC 1 (Grid) Input Current - Selectable 3 - 60A
AC 2 (Generator) Input Current - Selectable  3 - 60A
AC Input Voltage (Nominal) 120/240 Vac 230 Vac 120/240 Vac 230 Vac 120/240 Vac
AC Input Frequency Range 52 - 68 Hz
Other  Specifications for 6848 XW+
Shipping Weight 169 lbs/ 77 kg
Shipping Dimensions 28.0 x 22.5 x 15.5 in
IP degree of protection NEMA Type 1 Indoor
Operating air temperature range -25 °C to 70 °C
Warranty 5 Years
Configuration Single or three phase systems from from 7.0 kW to 76.5 kW
Safety Certifications UL1741, CSA 107.1
Interconnect IEEE 1547 and CSA 107.1
Monitoring/Configuration Conext ComBox or Conext Gateway
Peak Efficiency 95.7%



 Conext-XW-120-240V_Datasheet_V2.pdf
Conext-XW_USA-Warranty.pdf
Conext-XW-NA_Manual_V2.pdf
Conext_XW_BoM_for_1-2-3_Inverters.pdf
Conext-XW-NA_OwnersGuide_V2.pdf
