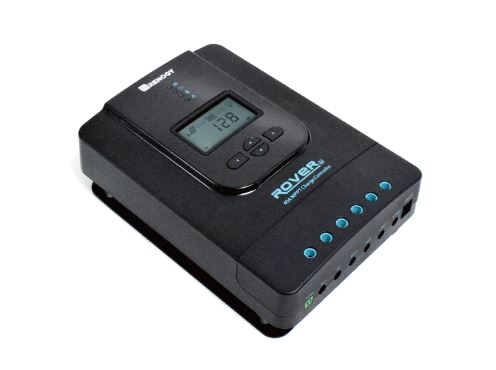

Meet the newly redesigned 40A Rover MPPT Charge Controller. This smart charge controller is capable of conveniently self-diagnosing itself in the event of an error and can be used with the Bluetooth Module, Renogy BT-1. By pairing the Rover with the BT-1 and the Renogy BT app through Bluetooth, users can monitor and adjust their solar system straight from their phones. The Rover was also built tough with a die-cast aluminum exterior which allows for safe heat dissipation and general protection from wear and tear.
KEY FEATURES
- Automatically detects 12V or 24V DC system voltages. Compatible with various Deep Cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.

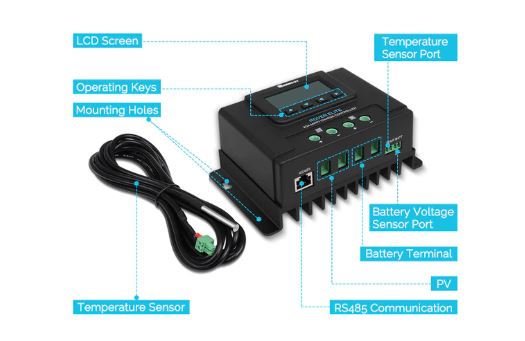

- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port to communicate with BT-1 Bluetooth module.
PACKAGE INCLUDES
- Rover Li 40 Amp MPPT Charge Controller
- Remote Temperature Sensor
- Option: BT-1 Bluetooth Module
Specifications - ROVER 40 AMP MPPT SOLAR CHARGE CONTROLLER
Rated Battery Current: 40ARated Load Current: 20A
Max. PV Input Short Current: 50A
Max. Battery Voltage: 32V
Max Solar Input Voltage: 100VDC
Charge circuit voltage drop: ≤ 0.26V
Discharge circuit voltage drop: ≤ 0.15V
Working Temperature: -35°C to +45°C
Max Terminal Size: 8AWG
Rated Load Current: 10% to 90% NC
Overall Dimension: 9.37 x 6.81 x 2.85 in
Net Weight: 4.41 lb.
OPTIONS: BT-1 BLUETOOTH MODULE (additional price)
Model: BT-1
Input Voltage: 5V-12V
Standby Power Consumption: 0.04W
Operating Power Consumption: 0.05W
Communication Range: ≤15m
Serial Baud Rate: Fixed Baud Rate 9600bps
Cable Length: 5.00 m (16.4 ft)
Dimensions: 2.6 X 2.01 X 0.61 In
Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in)
Operation Temperature: -20°C to 75°C (-4°F to 167°F)
Protection Grade: IP67
Weight: 120 g (4.2oz)
WARRANTY INFORMATION
Accessories 1-year material warranty
