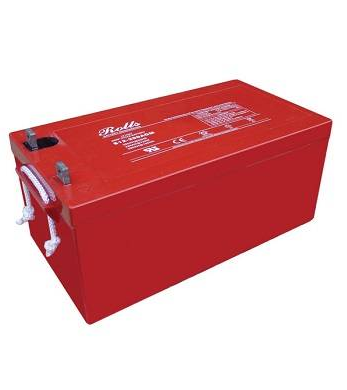

Rolls AGM VRLA DEEP CYCLE BATTERY 12V — 290Ah

SKU:
Rolls AGM VRLA DEEP CYCLE BATTERY     12V — 290Ah
Rolls AGM VRLA DEEP CYCLE BATTERY     12V — 290Ah

Rolls AGM VRLA DEEP CYCLE BATTERY 12V — 290Ah

SKU:
Regular price $810.00
/
Tax included.

Rolls premium S12-290AGM deep cycle lead acid batteries have earned a reputation of reliability and dependability in the railroad, marine, motive power and renewable energy markets. Dual container construction, high-density polyethylene materials, and unique “resistox” plate design provide a life expectancy that is among the longest in the battery industry. The S12-290AGM and other deep cycle batteries also have the highest recycling rating of any consumer product, ultimately reducing the environmental impact by both producers and consumers.



Features
• 12V AGM deep cycle lead-acid batteries
• 290Ah at C/100 | Group Size: 8D
• Terminals: LT
• Sealed AGM construction with ABS case and cover
• Self-regulating pressure release valves
• Low self-discharge rate, only 3%/month

Manufacturer ID # S12-290AGM Battery

 Charge
Charge Voltage Range 14.7V @ 25°C (77°F)
Float Voltage Range
Recommended Charge Current Capacity (String) 50 A
Maximum Charge Current (String) 80 A
Self-Discharge Rate Less than 2% per month at 25°C
(77°F)
Internal Resistance 1.8 mΩ
Capacity
Cold Crank Amps (CCA) 0°F / -17°C 1525
Marine Crank Amps (MCA) 32°F / 0°C 1830
Reserve Capacity (RC @ 25A) 578 Minutes
Reserve Capacity (RC @ 75A) 145 Minutes



  40°C 25°C 0°C -15°C
Capacity Affect by Temperature (104°F) (77°F) (32°F) (5°F)
102% 100%  85% 65%



 Hour Rate Capacity / AMP Hour Current / AMPs
@ 100 Hour Rate 290 AH 2.9 A
@ 20 Hour Rate 260 AH 13 A
@ 10 Hour Rate 234 AH 23.4 A
@ 5 Hour Rate 214 AH 42.8 A



 Specifications
Weight 74 kg 163 lbs
Length 52.1 cm 20.51"
Width 26.9 cm 10.59"
Height Inc. Term 24.5 cm 9.65"
 Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process, battery components & electrolyte levels.



 Rolls_12_Volt_S12-290AGM-RE_data_sheet.pdf
Warranty
AGM S-Series
Renewable Energy Applications 36 months
Marine & RV Applications 24 months
Other Applications 12 months
