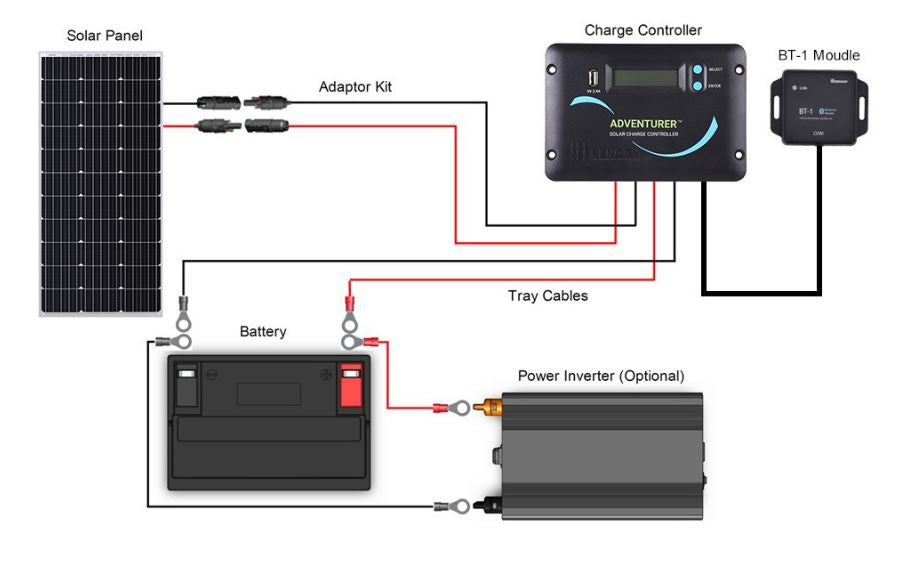

Taking a trip in your RV can create lifetime memories. Don't let traditional gas powered generators or power hookups slow you down. Renogy 100 Watt 12 Volt Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low watt electrical equipment without a power hookup. Renogy RV Solar Kits are carefully arranged to meet your RV needs. This kit includes a 100W 12V Monocrystalline Solar Panel, an Adventurer 30A PWM Charge Controller, a 30ft 10AWG MC4 Adapter Kit, a 16ft 10AWG Tray Cable, a BT-1 Bluetooth Module and one Renogy Cable Entry Housing.

The Adventurer 30A PWM Charge Controller is specifically designed for RV applications as it allows for aesthetically clean flush mounting on walls and is negative-grounded for battery compatibility. It also features an LCD screen for displaying system operation information and allows for full control of parameter settings. The controller comes equipped with a fully comprehensive self-diagnostic system and electronic protection functions to prevent damage from installation mistakes or system faults.

Newly added BT-1 Bluetooth Module enables user to pair the charge controller with our smartphone app Renogy BT. The APP allows you to view system performance in real time and make parameter changes right from your smartphone!

KEY FEATURES
Efficient
High solar cell efficiency : Monocrystalline 21%
Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
Reliable
EL tested solar modules; no hot-spot heating guaranteed
Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
TPT back sheet ensures smooth performance over a long period of time
IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Intuitive
Sealed, Gel, Flooded and Lithium battery charging algorithm ready 4-Stage battery charging process for a rapid, efficient, and safe battery charging
Remote monitoring and control via Bluetooth
Safe
The Renogy Adventurer is equipped with multiple electronic protections: reverse current, overcharging, short-circuit and reversed polarity
Pre-drilled holes on the back of the panel allow for fast and secure mounting
Expandable
With the Renogy Adventurer 30A PWM Flush Mount Charge Controller, you can expand your system up to a maximum of 400W. The Renogy 100W Monocrystalline Expansion Kit is the perfect solution for future expansion

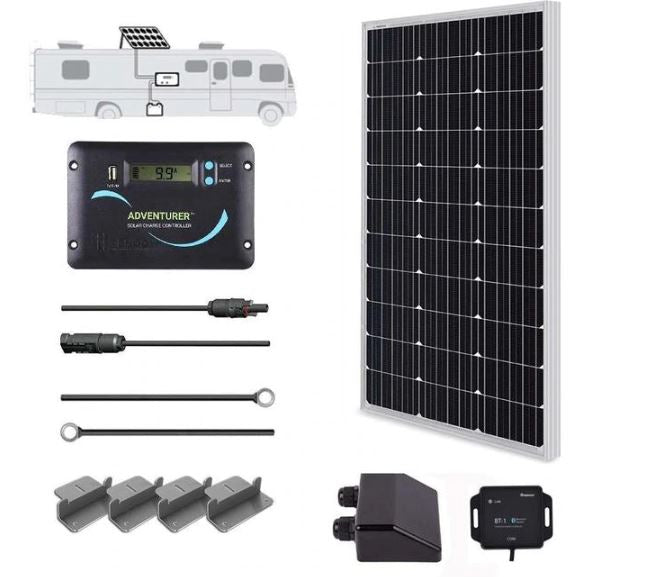

PACKAGE INCLUDES

• 100W Mono Solar Panel
• Renogy Adventurer-30A PWM Charge Controller
• Renogy 16ft 10AWG Tray Cables
• Renogy 30ft 10AWG MC4 Adaptor Kit
• Cable Entry Housing
• Mounting Z Brackets (Set)
• Renogy BT-1 Bluetooth Module

RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

• Maximum Power: 100W
• Maximum System Voltage: 600V DC
• Open-Circuit Voltage (Voc): 21.6V
• Short-Circuit Current (Isc): 6.24A
• Optimum Operating Voltage (Vmp): 17.9V
• Optimum Operating Current (Imp): 5.72A
• Dimensions: 42.2 X 19.6 X 1.38 inches
• Weight: 16.5lbs

RENOGY ADVENTURER - 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER WITH LCD DISPLAY

Nominal Voltage: 12 VDC
Rated Charge Current: 30A
Max. PV Input Voltage: 25 VDC
Max. PV Input Power: 400W (12V)

CABLE ENTRY HOUSING

Material: UV-resistant ABS Plastic
Weight (each component): 7.9 oz.
Recommended Adhesive: Sikaflex 252 or alike
Dimensions (l x w x h): 4.7 x 3.9 x 2.0 in
Cable Gland Diameter Range: 6mm – 12mm

RENOGY 30FT 10AWG MC4 ADAPTOR KIT (A PAIR)

Length: 30ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

MOUNTING Z BRACKETS (SET)

RENOGY BT-1 BLUETOOTH MODULE

Model: BT-1
Standby Power Consumption: 0.04W
Communication Range: ≤15m
Dimensions: 2.6 X 2.01 X 0.61 In
