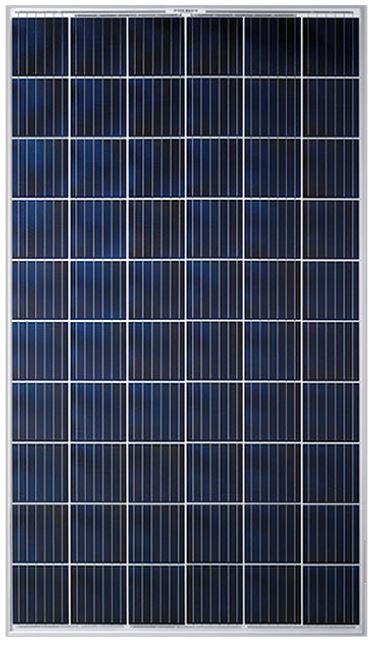

Q CELLS 345 WATT POLY SOLAR PANEL 24 Volt 72 cell
These high-performance Hanwha modules are the ideal solution for all applications thanks to its innovative cell technology Q.ANTUM. Q CELL technology includes a Power Reflector on the back side of the module, allowing the cells to capture more wattage and power than it otherwise would - therefore boosting the overall efficiency and output
-Q CELL technology offers anti-PID/anti-LID, hot spot protection, and traceable quality
-Low electricity generation costs - higher yield per surface area, and lower BOS costs due to higher power classes and an efficiency rate of up to 19%
-Optimal yields in all weather- excellent low light and temperature behavior
-Salt-mist corrosion test in accordance with IEC 61701, severity 6
-High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind (4000 Pa) loads
-25 year linear performance warranty and 12 year product warranty
-Engineered in Germany
| Nominal Max Power (Pmax) | 345 Watts |
| Max Power Voltage (Vmp) | 37.93V |
| Max Power Current (Imp) | 9.10A |
| Open Circuit Voltage (Voc) | 46.58V |
| Short Circuit Current (Isc) | 9.59A |
| Module Efficiency | 17.3% |
| Fire Rating | C (IEC) / TYPE 1 (UL) |
| Temperature Coefficient (Pmax) | -0.37%/°C |
| Operating Temperature | -40° to 85°C (-40° to 185°F) |
| Maximum System Voltage | 1500V |
| Maximum Series Fuse Rating | 20A |
| Cell Type | Polycrystalline Q.ANTUM solar cells |
| Cell Arrangement | 72 (6 x 12 cells) |
| Dimensions | 78.5 in × 39.4 in × 1.38 in (1994 mm × 1000 mm × 35 mm) |
| Weight | 50.7 lbs (23kg) |
| Connector Cables | MC4-EVO2 |
| Static Wind/Snow Load | 2400 Pa/ 5400 Pa |
| Frame | Silver |

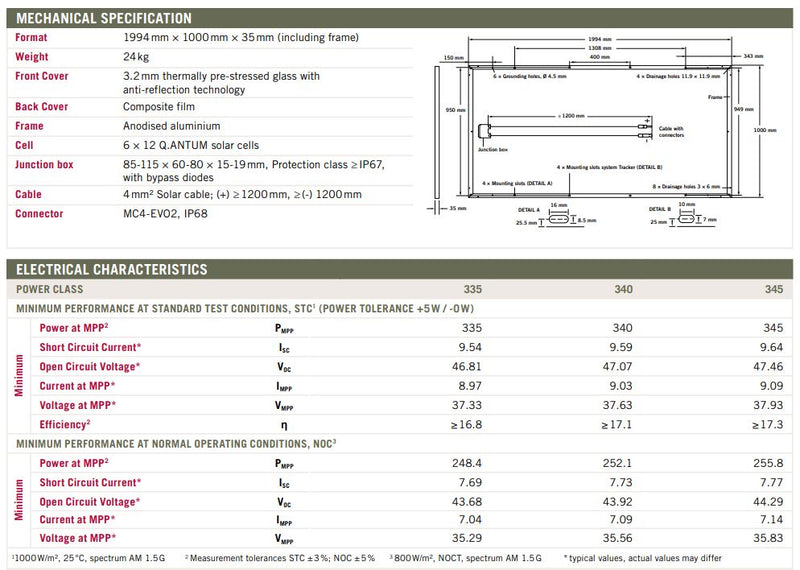

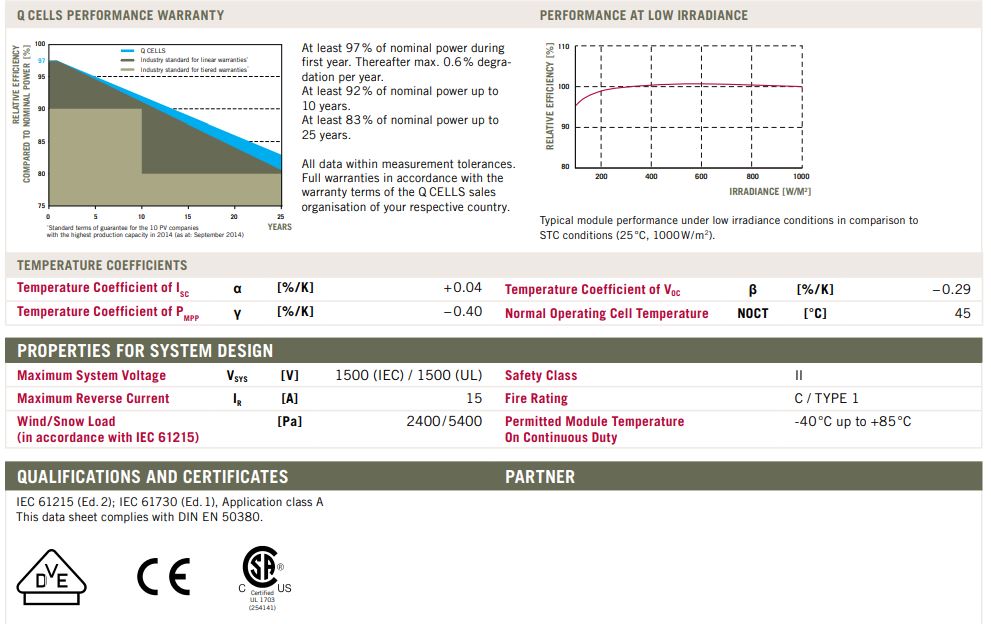

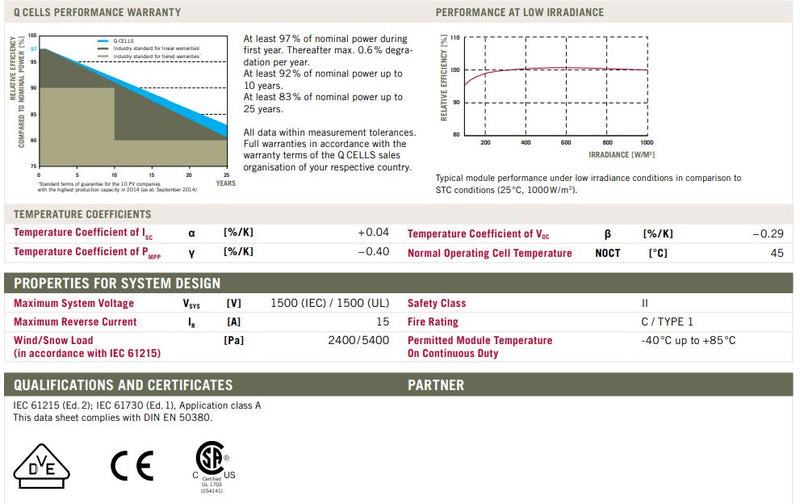

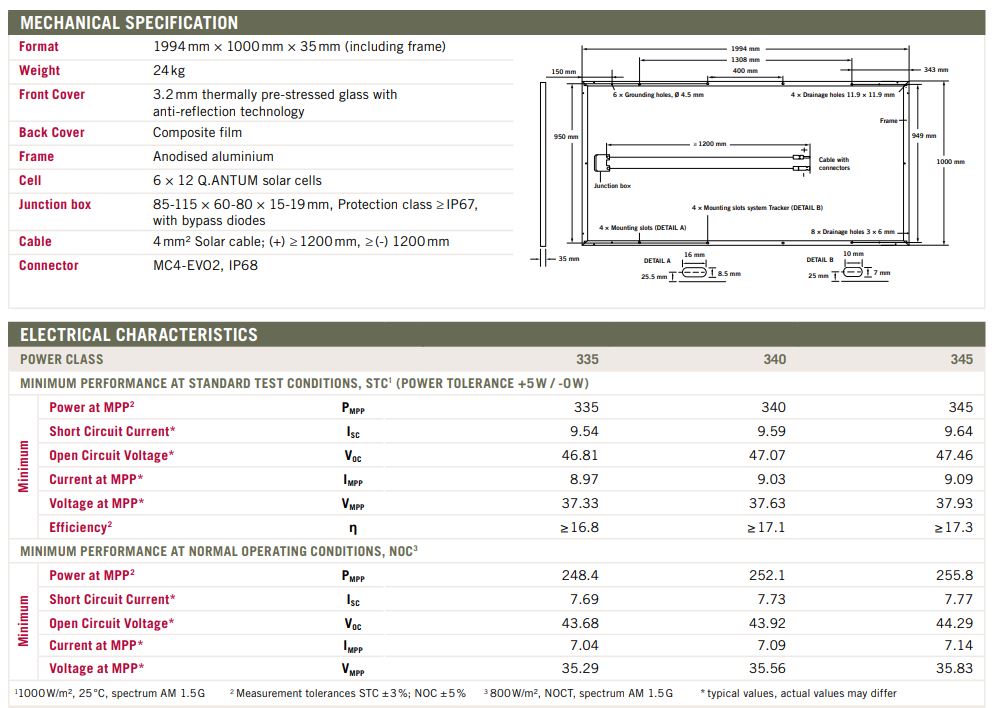

| Manufacturer Product Specifications |
