PR Express Control Panel PWM ProStar 30A w/ Meter - for stand alone PV systems

SKU:
PR Express Control Panel PWM ProStar 30A w/ Meter - for stand alone PV systems

PR Express Control Panel PWM ProStar 30A w/ Meter - for stand alone PV systems

SKU:
Regular price $565.75
/
Tax included.

SunWize PR Express Panel MPPT 230054 is a prewired aluminum control panel for our Power Ready Express systems. It has all of the necessary switchgear to hook up a charge/load controller to a solar array, battery bank, and load. SunWize Charge controllers have ratings between 6A and 40A are available in standard power ready express control panel configurations. The MPPT versions can use the power from the solar array more efficiently than the standard PR Express control panels and have additional features.

SunWize Power & Battery PR Express Control Panels are prewired aluminum panels for stand-alone PV systems. This control panel has all of the necessary switchgear to
hook up the charge/load controller to a solar array, battery bank and load. The 25A MPPT controller can support solar arrays up to approx. 350W at 12VDC and 700W at 24VDC.

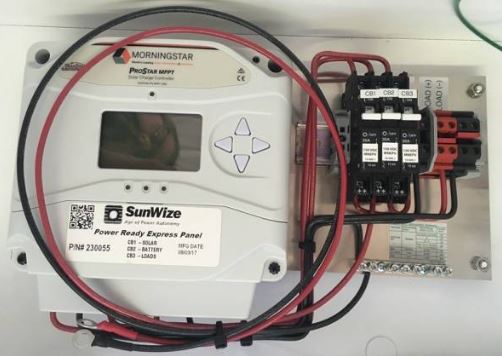

The control panel consists of an aluminum backplate; a charge controller; two load terminals; and breakers for the array, battery, and load. All breakers are sized to match the rating of the charge controller.

MPPT FEATURES:
Increases solar array production 3-5%
• Advanced lighting controls
• Load high voltage disconnect
• Remote data retrieval and access
• Optional digital meter display
• Customizable programming
• 5-year charge controller warranty



Other FEATURES:

Compatible with VRLA, Li-Ion, NiCD
and other advanced batteries
• Up to 256 days onboard data logging
• Pre-wired, fully assembled, QC tested
• Two (2) load connections
• Separate breakers for the array,
battery and load

Warranty - 1 year

 Key Information
Nominal DC Voltage 12/24
Charge Current (Amps) 025
Charge Controller Type MPPT
LVD Yes
Max Operating Temp 50°C
Min Operating Temp 30°C







 Accessories
Charge Controller Accessories DIN-1, Din Stainless Rail Clips, EMC-1, Ethernet Communications Adapter, Hub-1, Meterhub, MSC, PC Meterbus Adapter, PS-MPPT-WB, Wire Box, RM-1, Remote Meter 30' Cord, RSC-1, Communications Adapter EIA-485/RS-232, RTS, Remote Temperature Sensor, UMC-1, USB Meterbus Adapter





...
