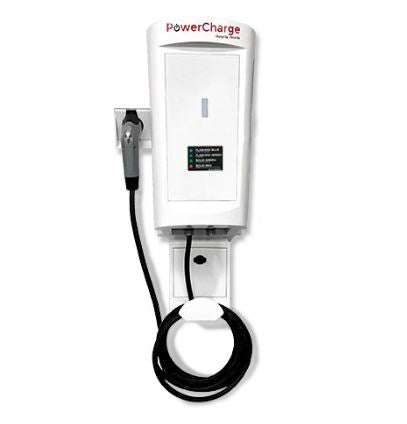

PowerCharge™ Pro-Series (P20) EV Charging Station - Single Port- Wall Mounted - Ideal for Parking Garages

SKU:
PowerCharge™ Pro-Series (P20) EV Charging Station - Single Port- Wall Mounted - Ideal for Parking Garages

PowerCharge™ Pro-Series (P20) EV Charging Station - Single Port- Wall Mounted - Ideal for Parking Garages

SKU:
Regular price $1,940.00
/
Tax included.
 SWS #3030

The PowerCharge™ Pro Series Open Access can be tailored to suit your electric vehicle charging needs. The P20SW delivers 30 Amps of charging power, which will provide 20 miles of range for every hour of charge.

Charge up your EV with a single dedicated charge port. Wall-mount stations are the right fit for parking garages or other applications with a wall close to the designated parking space(s). Best of all, they are a lower cost option in both the equipment and installation.







 PRO SERIES - Specifications
INPUT VOLTAGE 208/240 VAC Single Phase
INPUT CURRENT 16A, 30A, 40A, 70A**
INPUT POWER CONNECTIONS Line1, Line2, Earth Required Service Panel Breaker,
16A/20A, 30A/40A, 40A/50A, 70A/100A** (Current/Breaker)
Dual station requires (2) circuit feeds
ELECTRICAL OUTPUT 16A, 30A, 40A, 70A** Available
OUTPUT CHARGING POWER 3.3kW, 7.2 kW, 9.6kW, 16.8kW**
OUTPUT VOLTAGE 208/240 VAC
OUTPUT CHARGING CONNECTOR SAE J1772, 18ft Cable
USER INTERFACE/CONVENIENCE* Color touchscreen display and payment process
RFID* Contactless RFID Card Reader
GROUND FAULT DETECTION 20mA CCID with automatic retry at 15-min. intervals, totaling 3 tries
PLUG-OUT DETECTION Power terminated per SAE J1772 specifications
POWER MEASUREMENT* Revenue grade energy metering available
LOCAL AREA NETWORK* 4G/LTE, CAT 5/6 (standard), Wi-Fi b/g/n (optional)
WIDE AREA NETWORK* TCP/IP, WiFi b/g/n, Zigbee, ICP IP/Internet, GPR
SAFETY COMPLIANCE ETL Listed for US and Canada;
Complies with UL 2594, UL 2231-1, UL 2231-2
Surge Protection 6kV at 3000 VAC
EMC COMPLIANCE FCC Part 15 Class A
OPERATING TEMPERATURE -30°C to +55°C
OPERATING HUMIDITY 90% RH, non-condensing
TERMINAL BLOCK
TEMPERATURE RATING
+100°C
ENCLOSURE NEMA 3R
SMART GRID* Utility Automated Demand Response, SEP 1.X and SEP 2.0
WEIGHT (APPROXIMATE) 90lbs Wall Mount | 130lbs Pedestal Mount



PowerCharge-Pro-Series_-_data_sheet_-_manual PDF
