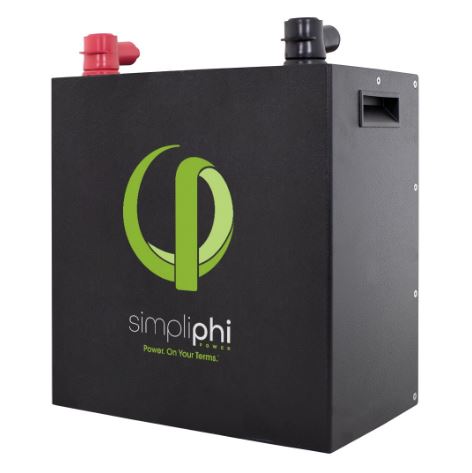

Simpliphi - PHI 3.8™ BATTERY 48Volt

SKU: PHI-3-8-48-60
Simpliphi - PHI 3.8™ BATTERY 48Volt

Simpliphi - PHI 3.8™ BATTERY 48Volt

SKU: PHI-3-8-48-60
Regular price $2,489.00
/
Tax included.
Item#SWS453

The PHI 3.8™ kWh 60 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, light- weight and scalable for installations that range from kWh to MWh. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.

Simple
• Full range of kWh, Ah and voltage options
• Energy and power in one battery
• Drop-in replacement for existing lead acid
battery banks
• On- or off-grid
• No thermal monitoring, cooling, fire
suppression or ventilation equipment required
• No maintenance

Practical
• Stores electricity from solar, wind, diesel/
gas generators, the grid or any combination
• Modular and scalable — seamlessly add
more capacity if energy needs grow
• Install in small spaces
• Indoor and outdoor use in all climates

Reliable
• 10-year warranty
• High efficiency rate — more usable power for you
• Provides primary or back-up power for on- or
off-grid homes and businesses
• Delivers multiple charge/discharge cycles per day
• Operates in broad temperature range of
-4 to 120 degrees F
• Proven in the field for 9+ years

Safe
• Environmentally benign and non-toxic Lithium
Iron Phosphate (LFP)
• No Cobalt -
no hazards
• No risk of overheating
or fire
• No fumes or off-gassing





Description
Lithium Ferro Phosphate (LFP)
The safest Lithium Ion chemistry available
No cobalt, risk of thermal runaway or fire
OCPD
Built-in accessible 80 Amp DC breaker On/Off switch
BMS
Built-in Battery ManagemDescriptionent System
COMPATIBILITY
Compatible with all industry standard inverters and charge controllers
Battery bank-to-inverter output sizing must adhere to a 2:1 ratio:
battery quantity = (inverter kWAC rating ÷ inverter efficiency)
÷ battery MAX Continuous Discharge Rate in kWDC
MAINTENANCE
Maintenance-free
No ventilation, cooling or thermal regulation required



 Specifications
PHI 3.8™
24V
48V
DC Voltages – Nominal
25.6VDC
51.2VDC
Amp-Hours
151 Ah
75 Ah
Rated kWh Capacity @ C/2
3.8 kWh DC @ 100% DOD
3.04 kWh DC @ 80% DOD
3.8 kWh DC @ 100% DOD
3.04 kWh DC @ 80% DOD
MAX Discharge Rate (10 minutes)
60 Amps DC (1.53 kW DC)
60 Amps DC (3.07 kW DC)
MAX Continuous Discharge Rate
45 Amps DC (1.15 kW DC)
37.5 Amps DC (1.92 kW DC)
MAX Continuous Charge Rate
45 Amps DC (1.15 kW DC)
37.5 Amps DC (1.92 kW DC)
DC Voltage Range1
24 VDC to 28 VDC
48 VDC to 56 VDC
Depth of Discharge1
up to 100%
up to 100%
Operating Efficiency
98%
98%
Charge Temperature1
32° to 120°F (0° to 49°C)
32° to 120°F (0° to 49°C)
Operating Temperature1
-4° to 140°F (-20° to 60°C)
-4° to 140°F (-20° to 60°C)
Storage Temperature1
6 months: 14° to 77° F (-10° to 25° C)
3 months: -4° to 113° F (-20° to 45° C)
6 months: 14° to 77° F (-10° to 25° C)
3 months: -4° to 113° F (-20° to 45° C)
Self-Discharge Rate
<1% loss per month
<1% loss per month
Cycle Life
10,000+ (@80% DOD)
10,000+ (@80% DOD)
Memory Effect
None
None
Warranty Period
10 Years
10 Years
Weight
78.24 lbs (35.5 kg)
78.24 lbs (35.5 kg)
Dimensions
13.5 x 14 x 8 in. (15.5” H w/terminals) / 0.88 ft3
(34.3 x 35.6 x 20.3 cm / 0.025 m3)
13.5 x 14 x 8 in. (15.5” H w/terminals) / 0.88 ft3
(34.3 x 35.6 x 20.3 cm / 0.025 m3)
 1. Max operating conditions. Refer to warranty for recommended conditions.

All specifications listed are typical/nominal and subject to change without notice.
UN 3480, Lithium Ion battery contained in equipment, 9, II
UL, CE, UN/DOT and RoHS compliant components – UL Certified
Designed and manufactured in California, USA

 Manufacturer's Product Specifications
simpliphi-power-phi-batteries-product-brochure.pdf
simpliphi-power-phi-3-8-kwh-60-amp-specification-sheet.pdf

..
