Light Commercial Kilowatt Hour Meter, 3-Phase 120-277V, Watt Hour Meter

Light Commercial Kilowatt Hour Meter, 3-Phase 120-277V, Watt Hour Meter

Light Commercial Kilowatt Hour Meter, 3-Phase 120-277V, Watt Hour Meter

Regular price $455.75
Tax included.

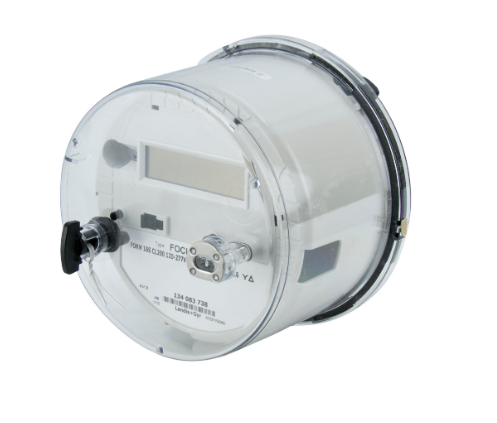

Light Commercial Kilowatt Hour Meter, 3-Phase, 120-277 Volt Auto-Ranging Power Supply Suitable for Both 277/480V, 4W, WYE and 240/480V 4-Wire Delta Services, 7 Jaw. Active Energy and Digital Multiplication Measurement, Non-Volatile Memory, 9-Digit LCD, Display Scroll Sequence Programmable (Factory or End User).

The FOCUS® AX Polyphase meter provides a cost-efficient alternative for light
commercial metering applications that do not require all of the functionality of the S4e meter. As an addition to the FOCUS family of meters, the AX Polyphase brings the same proven solid-state performance utilities have come to expect from FOCUS meters, in an economical and AMI-ready platform for commercial and industrial applications.

A single circuit board design, mounted at the front of the meter allows room for modular AMI communications or a KYZ output board. Highly accurate load performance and the use of field-proven Digital Multiplication Measurement Technique ensure reliability and dependability during the entire life of the meter.

The FOCUS AX Polyphase meter is available for both self-contained and transformer-rated meter forms and includes the ASIC, nonvolatile memory, selectable metrics, flexible display functionality, an optional KYZ output, configuration port, and a customer program option.

General Specifications
Active Energy “kWh-only” meter
Digital Multiplication Measurement Technique
Non-Volatile Memory
Designed for 20+ years life
Meets ANSI standards for performance
Utilizes ANSI protocol (between meter and AMI device)
9-Digit LCD
Display scroll sequence programmable (factory or end user)
Configuration Port – cover does not have to be removed
Operating Temperature -40C to +85C under cover
Nominal Voltage 120V or 277V  Auto Ranging Power Supply
Operating Voltage 80% to 120% of Vn
Frequency 60Hz +/- 5%
Humidity 5% to 95% relative humidity, non condensing
Starting Load (Watts) Class 20 - 0.005 Amp (0.6W)
Class 100 - 0.030 Amp (3.6W)
Class 200 - 0.050 Amp (12W)
Class 320 - 0.080 Amp (19.2W)
Voltage Burden < 1.8W Max
Load Performance Accuracy Accuracy Class 0.2%
Exception: Form 36S 0.5%
Reactive energy 0.5%
Display Options Energy Metrics: -+kWh, -kWh, Net kWh, and added kWh (Security)
Metric Energy Display Format – 4x1, 4x10, 5x1, 5x10, 6x1 or 6x10
AMI Platform Modular
Selectable Meter Multiplier Up to 4096 as result of PT ratio • CT ratio
Applicable Standards ANSI C12.1 for electric meters
ANSI C12.10 for physical aspects of watt hour meters
ANSI C12.18 Protocol specifications for ANSI Type 2 Optical Port
ANSI C12.19 Utility Industry End Device Data Tables
ANSI C12.20 for electricity meters, 0.2 and 0.5 accuracy classes
CAN3-C17-M84 Canadian specifications for approval of type of electricity meters
