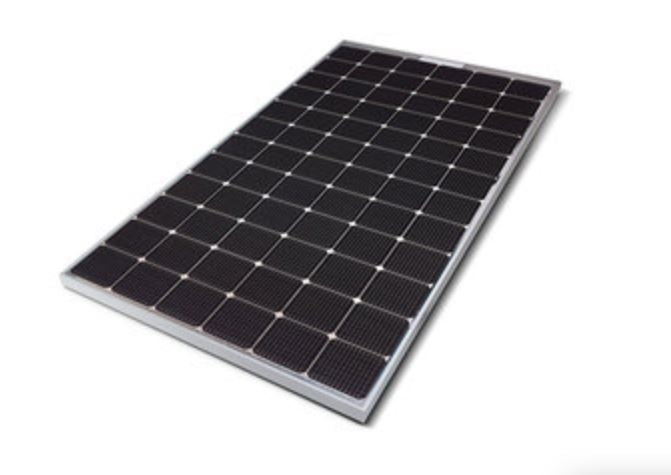

LG NeON2 LG405N2W-V5 405w Mono 72 Cell
THE NeON® 2 72 CELL - 405W - THE PANEL OF THE FUTURE AVAILABLE TODAY

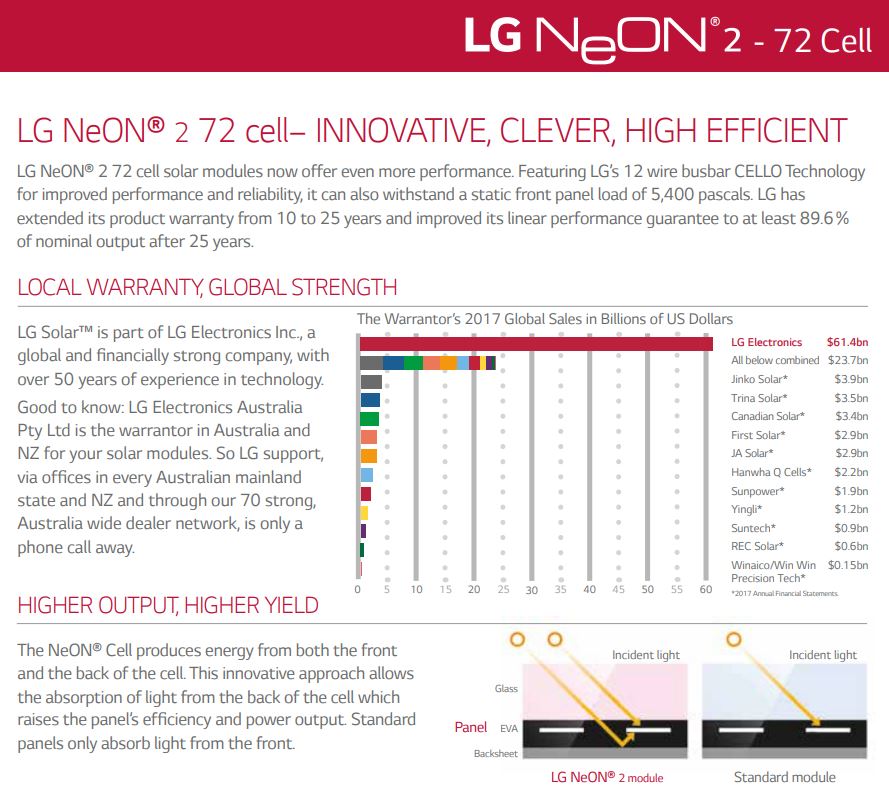

The new LG NeON® 2 72 cell has seen many improvements, from longer warranties and higher efficiency to more busbars. This panel is ideal for commercial systems or solar farms seeking an efficient use of space and a high quality panel with great output efficiency.
The new NeON® 2 with 72 cells adopts the award winning CELLO Technology replacing 3 busbars in each cell with 12 thin wires to enhance power output.
More Power per Square Meter
LG NeON® 2’s 405W are a similar physical size to many
conventional 320W 72 cell panels. This means with the LG NeON® 2 405W you get 26% more electricity per square metre than a 320W panel. So you can install
more kW of solar on your roof with the LG NeON® 2.
Improved 25 Year Performance Warranty
The initial degradation of cells has been improved from -3% to -2%, in the 1st year and the annual rate of degradation has fallen from -0.7%/year to -0.35%/ year
thereafter. This brings an 89.6% warranted output at 25 years, compared to 80.2% for many competing panels.

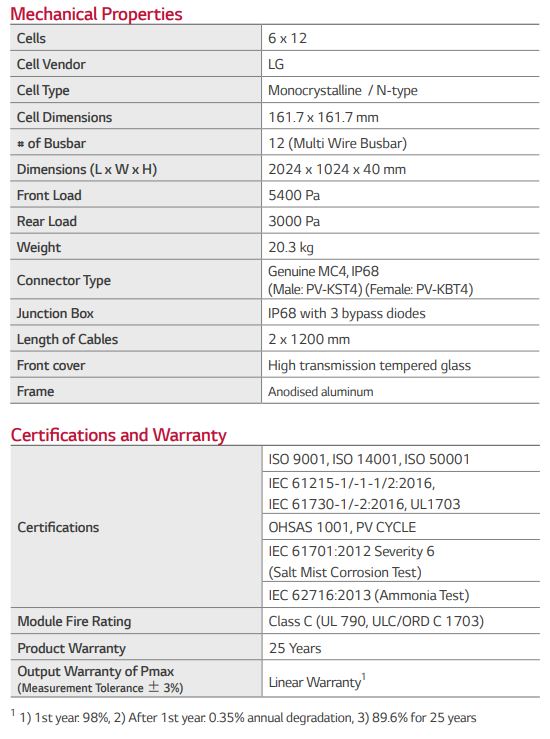

| Manufacturer: | LG Solar |

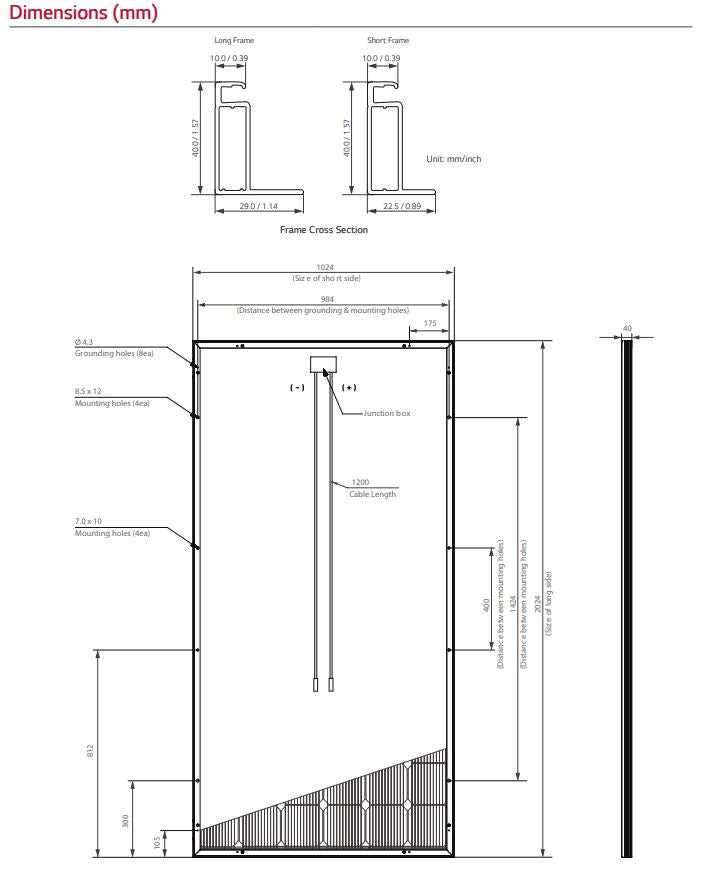

| Dimensions: | 76.69 x 40.31 x 1.57 inches |
| Weight | 44.75 lbs |
| Cells: | 72 (6 x 12) |
| Cell Type | Monocrystalline / N-Type |
| Connector Type | MC4 / MC |
| Cables | 1200 mm x 2 Ea |
| Glass | Tempered Glass with AR Coating |
| Backsheet Color | White |
| Frame | Anodized Aluminum |
| Operating Temperature | -40°C to +90°C |

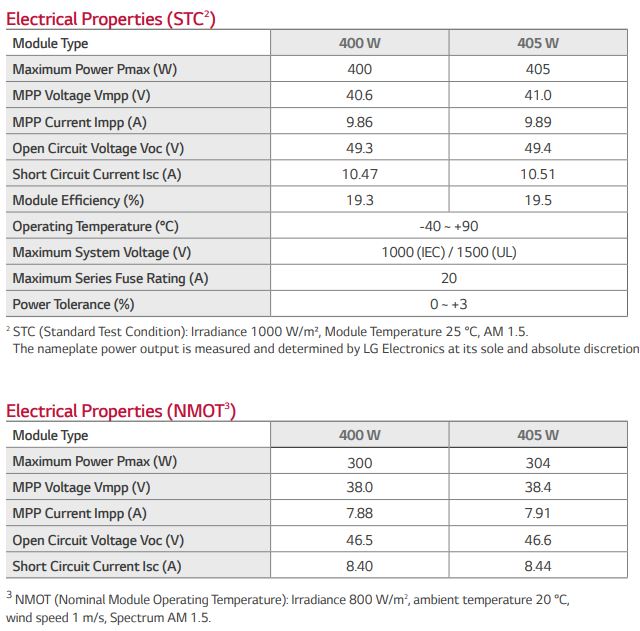

| Electrical Data | |
| Nominal Maximum Power (Pmax) | 405 Watts |
| MPP Voltage (Vmpp | 41.0 Volts |
| MPP Current (Impp) | 9.89 Amps |
| Open Circuit Voltage (Voc) | 49.4 Volts |
| Short Circuit Voltage (Isc) | 10.51 Amps |
| Module Efficiency | 19.5% |
| Warranty | 25 Year Product Warranty |
| Production Guarantee | 25 Year Linear Performance Warranty |
| Manufacturer Information | |
| LG_Solar_Installation_Guide.pdf | |
| LG_Solar_Warranty.pdf | |
| LG_Solar_Installation_Guide.pdf |
