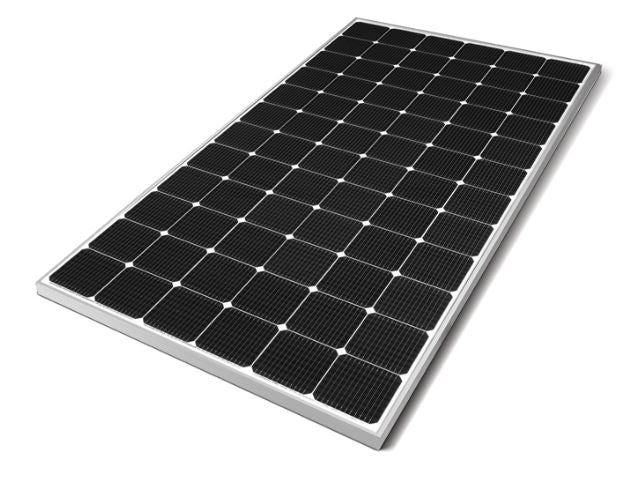

The LG NeON® 2 BiFacial is designed to absorb sunlight both from the front and the rear sides of its NeON® cell by using a transparent backsheet. The dual faces of the cell result in higher energy generation.
Enhanced Performance Warranty - LG offers a 25-year product warranty for the LG NeON2, including labor, in addition to an enhanced performance warranty.
Bifacial Energy Yield - LG NeON2 BiFacial modules use highly efficient bifacial solar cells, "NeON" applied Cello technology. Through Cello technology, the modules can achieve up to 30% more energy than standard PV modules.
The panels perform better on sunny days thanks to its improved temperature coefficient. Under weak sunlight conditions the panels perform well and increase efficiency.
Warranty: 25 Year Product Warranty
Performance Guarantee: 25 Year Linear Performance Warranty
|Certifications and Safety Ratings|

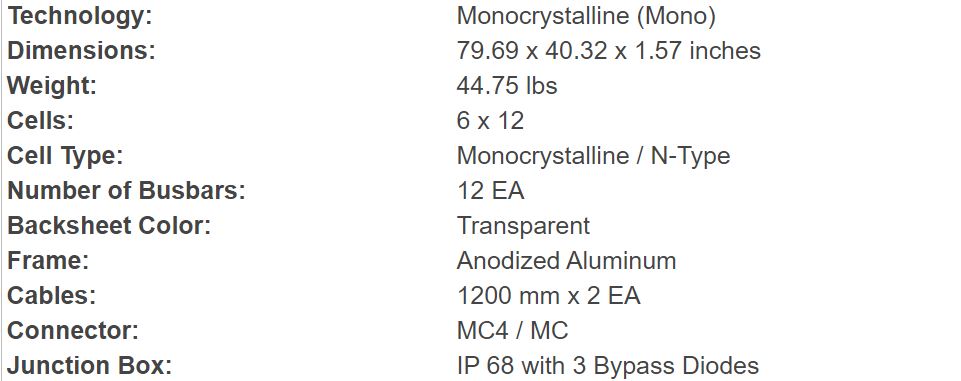

|Dimensions||79.69 x 40.32 x 1.57 inches|
|Cells||6 x 12|
|Cell Type||Monocrystalline / N-Type|
|Number of Busbars||12 EA|
|Cables||1200 mm x 2 EA|
|Connector||MC4 / MC|
|Junction Box||IP 68 with 3 Bypass Diodes|

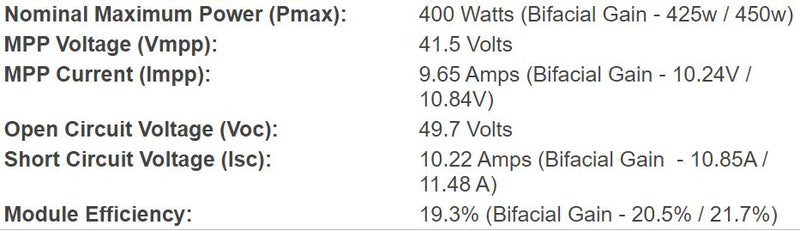

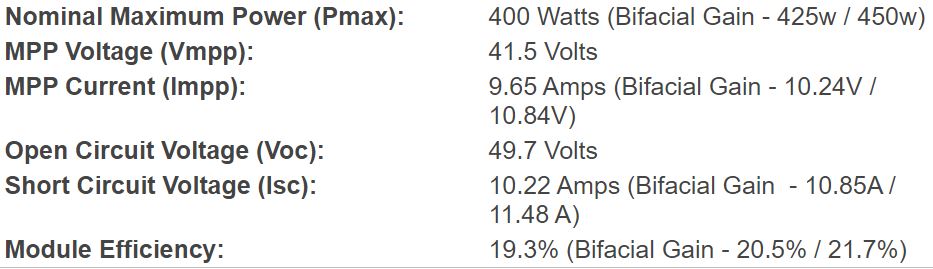

|Nominal Maximum Power (Pmax)||400 Watts (Bifacial Gain - 425w / 450w)|
|MPP Voltage (Vmpp)||41.5 Volts|
|MPP Current (Impp)||9.65 Amps (Bifacial Gain - 10.24V / 10.84V)|
|Open Circuit Voltage (Voc)||49.7 Volts|
|Short Circuit Voltage (Isc)||10.22 Amps (Bifacial Gain - 10.85A / 11.48 A)|
|Module Efficiency||19.3% (Bifacial Gain - 20.5% / 21.7%)|
|Manufacturer Product Data|
|LG_Solar_Installation_Guide 400w bifacial.pdf|
