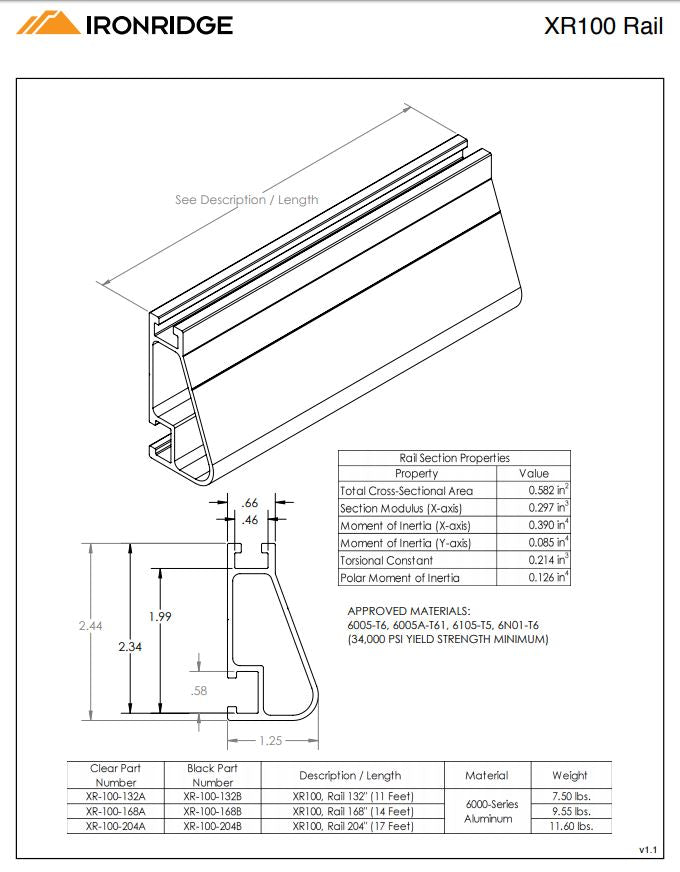

Model ID: XR-10-168B

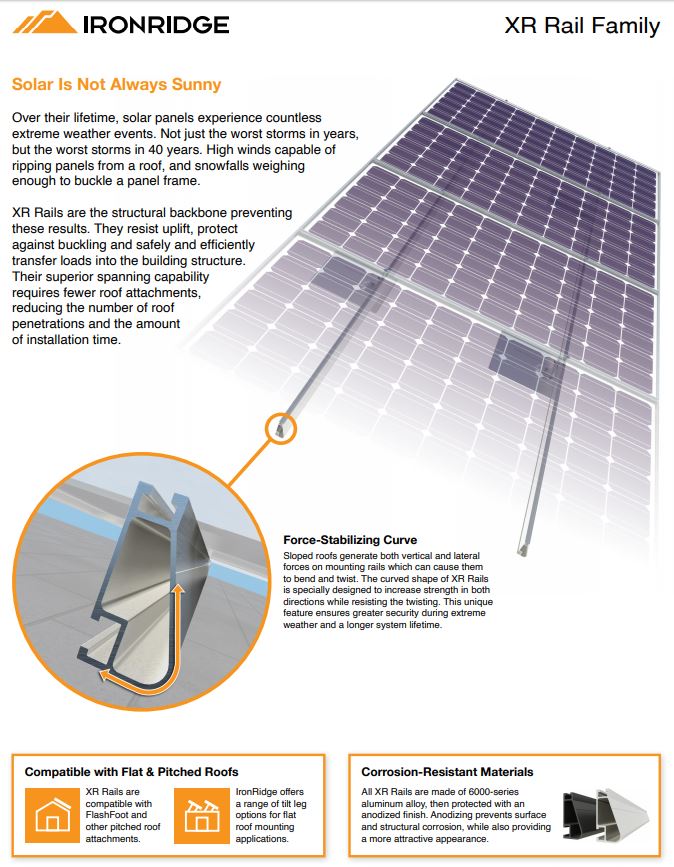

XR Rails are the structural backbone of IronRidge pitched, flat and ground-based arrays. Their signature curve helps them to resist uplift, protect against buckling and safely and efficiently transfer loads into the building structure.
Their superior spanning capability requires fewer roof attachments, reducing the number of roof penetrations and the amount of installation time. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail to match.

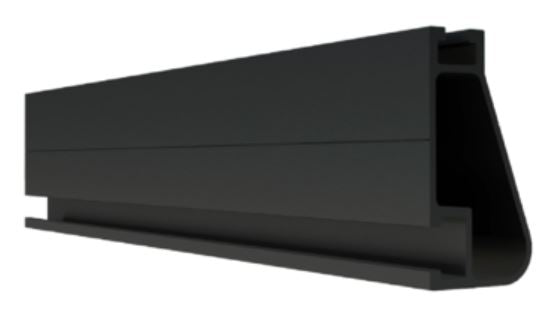

XR100 is the ultimate residential mounting rail. It supports a range of wind and snow conditions, while also maximizing spans up to 8 feet.
- 8’ spanning capability
- Heavy load capability
- Clear & black anodized finish
- Internal splices available
Multiple lengths of rail can be spliced and bonded. The internal splice bars do not interfere with clamping or mounting locations, and offer a seamless appearance. Made with extruded 6000 series aluminum. 12-14 x 5/8” self-drilling screws are included.
