Product Line: XR Series / Model ID: XR-100-132A

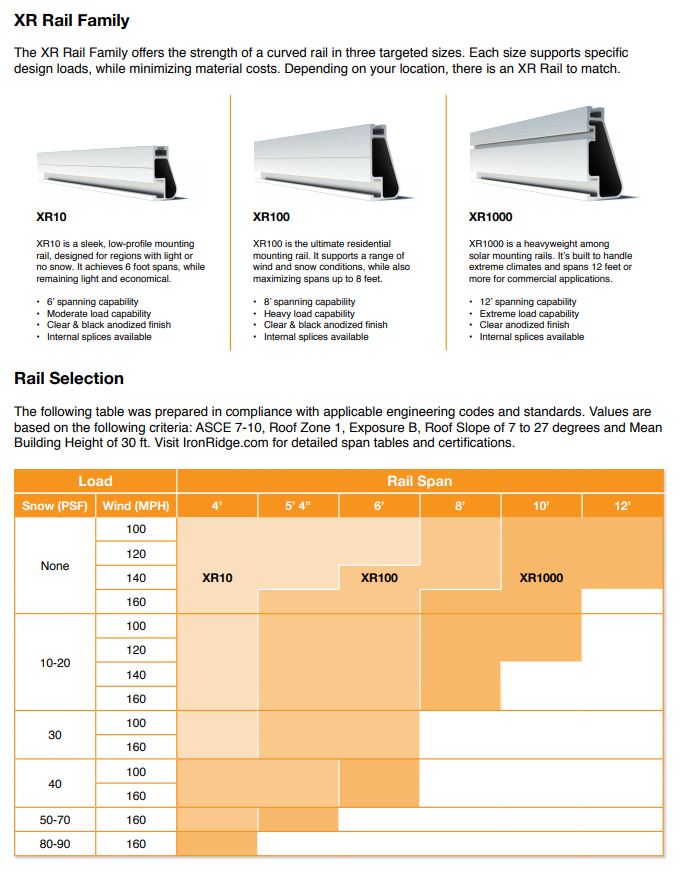

The XR Rail Family offers the strength of a curved rail in three targeted sizes. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail to match. XR1000 is a heavyweight among solar mounting rails. It’s built to handle extreme climates and spans 12 feet or more for commercial applications. XR100 is the ultimate residential mounting rail. It supports a range of wind and snow conditions, while also maximizing spans.
Sloped roofs generate both vertical and lateral forces on mounting rails which can cause them to bend and twist. The curved shape of XR Rails is specially designed to increase strength in both directions while resisting the twisting. This unique feature ensures greater security during extreme weather and a longer system lifetime.

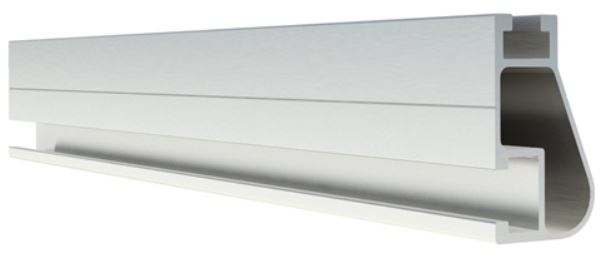

The XR100 series is the ultimate residential mounting rail. It supports a range of
wind and snow conditions, while also maximizing spans up to 8 feet.
- Clear & black anodized finish Internal splices available Curved profile of rail increases strength in all directions
- Compatible with flat and pitched roofs
- Corrosion-resistant - rails are made of marine-grade aluminum alloy, then protected with an anodized finish
- The XR100 is available in 3 lengths- 11', 14', and 17' - and 2 finishes - Clear and Black
- Heavy load capability
- 8’ spanning capability
