IRONRIDGE XR-10-204A 17' CLEAR XR10 RAIL

SKU: SLR-210-1000Z
IRONRIDGE XR-10-204A 17&
IRONRIDGE XR-10-204A 17&

IRONRIDGE XR-10-204A 17' CLEAR XR10 RAIL

SKU: SLR-210-1000Z
Regular price $34.00
/
Tax included.
Model: XR-10-204A

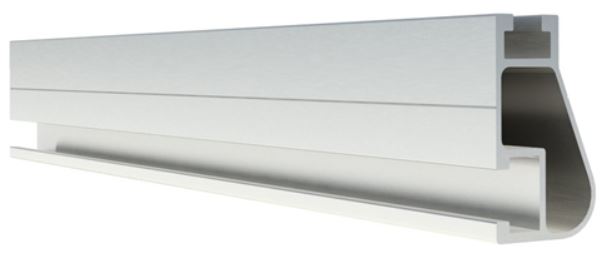

17 inch Clear XR10 Rail

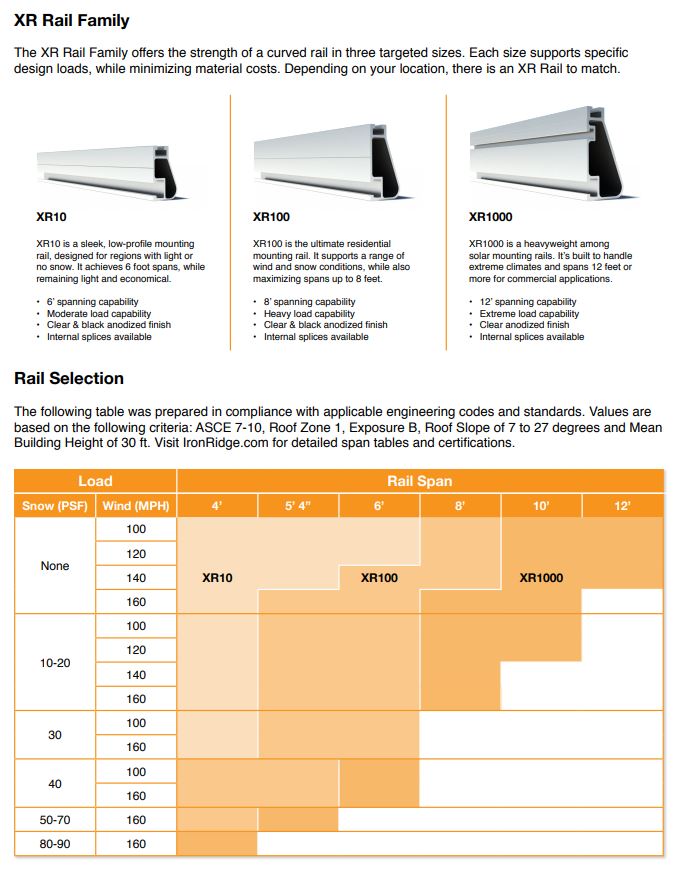

The XR Rail Family offers the strength of a curved rail in three targeted sizes. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail to match. XR1000 is a heavyweight among solar mounting rails. It’s built to handle extreme climates and spans 12 feet or more for commercial applications. XR100 is the ultimate residential mounting rail. It supports a range of wind and snow conditions, while also maximizing spans. XR10 is a sleek, low-profile mounting rail, perfectly matched to regions with light or no snow. It achieves 6 foot spans, while also staying light and economical.

25 Year Limited Product Warranty

Features
4' to 6' spanning capability
Light to moderate load capability - up to 30 PSF snow load
Curved profile of rail increases strength in all directions
Compatible with flat and pitched roofs
Corrosion-resistant - rails are made of marine-grade aluminum alloy, then protected with an anodized finish
The XR10 is available in 3 lengths- 11', 14', and 17' - in Clear finish only
