Product Line: XR Series / Model ID: XR-10-168M

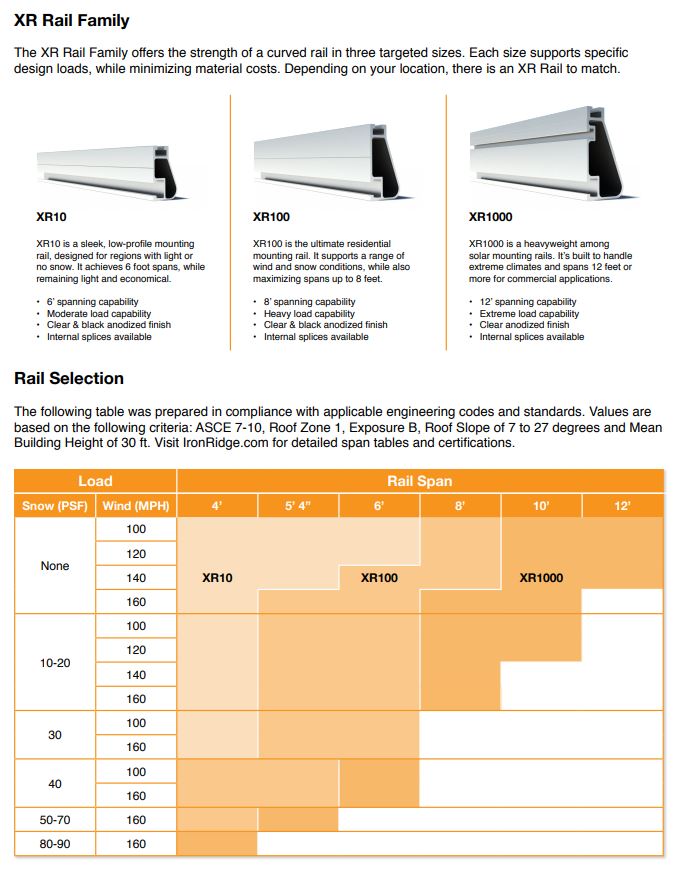

The XR Rail Family offers the strength of a curved rail in three targeted sizes. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail to match. XR1000 is a heavyweight among solar mounting rails. It’s built to handle extreme climates and spans 12 feet or more for commercial applications. XR100 is the ultimate residential mounting rail. It supports a range of wind and snow conditions, while also maximizing spans.

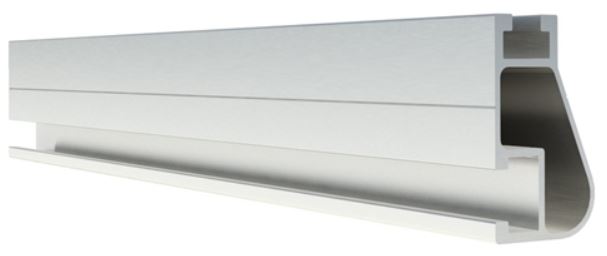

The new XR10 is a sleek, low-profile residential mounting rail - perfectly matched to regions with light or no-snow. It supports up to 6' spans while also staying light and economical. XR Rails are available in three targeted sizes: XR10, XR100 & XR1000. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail to match your design needs.
4' to 6' spanning capability
Light to moderate load capability - up to 30 PSF snow load
Curved profile of rail increases strength in all directions
Compatible with flat and pitched roofs
Corrosion-resistant - rails are made of marine-grade aluminum alloy, then protected with an anodized finish
The XR10 is available in 3 lengths- 11', 14', and 17' - in Clear finish only
