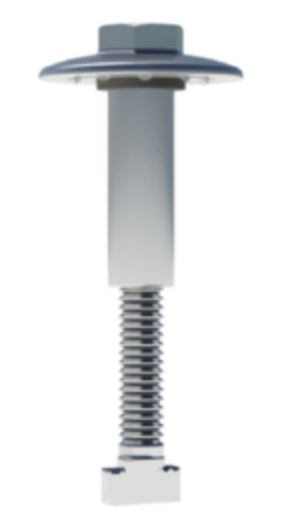

IronRidge Universal Fastening Object (UFO)
Universal Fastening Objects bond modules to rails.
• Fully assembled & lubed
• Single, universal size
• Clear and black finish
IronRidge has created a new and improved mid clamp/end clamp solution - the UFO! UFO stands for 'Universal Fastening Object', meaning it works with the majority of solar panel frames, 30 - 48 mm high. It arrives assembled, lubricated, and has integrated grounding. No longer is there a need for separate grounding hardware. This new clamp bonds the solar panels directly to the IronRidge XR Rails. The new re-designed T-bolt allows the clamp to stand on it's own inside the rail, allowing for one person operation. And it magically transforms from a grounded mid clamp to a grounded end clamp by simply adding a stopper sleeve.
Model # UFO-CL-01-A1
Pre-assembled, free standing and auto aligning allows for one person operation and saves tremendously on installation costs
New diagonal T-bolt is bigger and makes 30% more contact area within the rail track, improving the pull-out resistance
360-degree bonding washer meets the new UL-2703* requirements - the standard for solar mounting systems
Universal sizing fits 30- 48 mm solar panel frame heights, eliminating the need for many different clamp sizes
