ENPHASE MICROINVERTER IQ7PLUS-72-2-US -60-Cell and 72-Cell PV Modules - 235Watt-440Watt

SKU: IQ7PLUS-72-2-US
ENPHASE MICROINVERTER IQ7PLUS-72-2-US -60-Cell and 72-Cell PV Modules - 235Watt-440Watt
ENPHASE MICROINVERTER IQ7PLUS-72-2-US -60-Cell and 72-Cell PV Modules - 235Watt-440Watt
ENPHASE MICROINVERTER IQ7PLUS-72-2-US -60-Cell and 72-Cell PV Modules - 235Watt-440Watt

ENPHASE MICROINVERTER IQ7PLUS-72-2-US -60-Cell and 72-Cell PV Modules - 235Watt-440Watt

SKU: IQ7PLUS-72-2-US
Regular price $155.00
/
Tax included.

The high-powered smart grid-ready Enphase IQ 7 Micro and Enphase IQ 7+ Micro achieve the highest system efficiency. Part of the Enphase IQ System, the IQ 7 and IQ 7+ Micro integrate seamlessly with the Enphase Envoy-S, and the Enphase Enlighten monitoring and analysis software.

Enphase Energy micro inverters do all of the inverting of power at the solar panel level - DC power going in and AC power coming out. Another big benefit is panel-level monitoring. You'll be able to remotely see which panel is not producing and trouble-shoot your system much easier. In addition, if one panel is having production issues, it will not affect the rest of the panels in your system, like a string inverter system would. Micro inverters - because of the way they are designed - automatically fulfill 2014 and 2017 NEC Rapid Shutdown requirements, as when the grid goes down, the micro inverter automatically shuts off.


The IQ 7 and IQ 7+ Micro extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty.

Technology: Micro-Inverter
Dimensions: 8.34 x 6.89 x 1.19 Inches
Weight: 2.38 lbs
Connector Type: MC4 (or Amphenol H4 UTX with Additional Q-DCC-5 Adapter)
Cooling: Natural convection - No Fans
Approved for Wet Locations: Yes
Pollution Degree: PD3
Enclosure: Class II Double-Insulated
Environmental Category / UV Exposure Rating: Outdoor - IP67
Communication: Power Line Communication (PLC)
Monitoring: Enlighten Manager and MyEnlighten Monitoring Options. Compatible with Enphase IQ Envoy
Compliance (Pending): AS 4777.2, RCM, IEC/EN 61000-6-3, IEC/EN 62019-1, IEC/EN 62109-2
Ambient Temperature Range: -40°C to +65°C
Relative Humidity Range: 4% to 100% (Condensing)

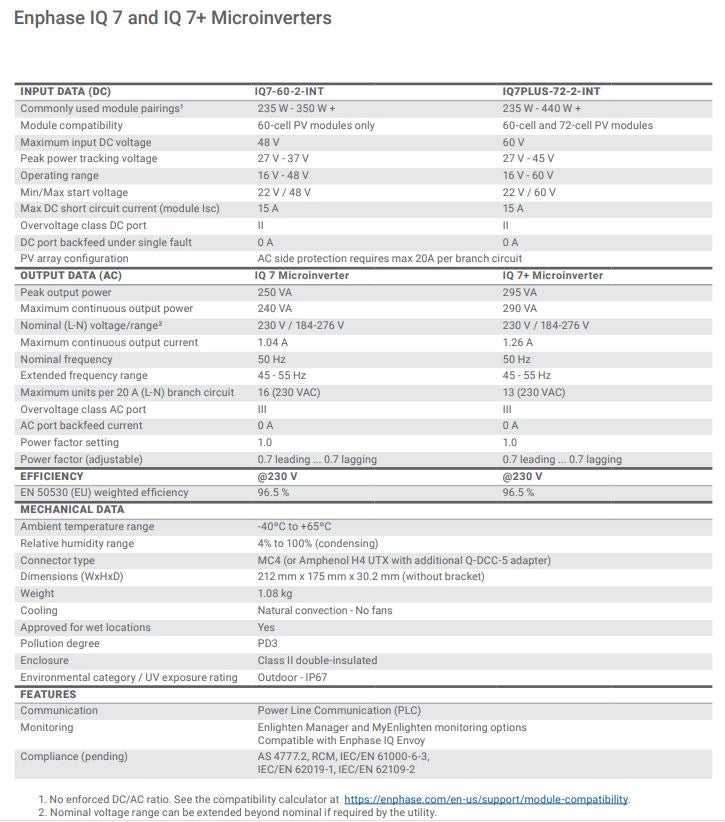

Electrical Information

Input Data
Commonly Used Module Pairings: 235W to 440W+
Module Compatibility: 60-Cell and 72-Cell PV Modules
Maximum Input DC Voltage: 60 Volts
Peak Power Tracking Voltage: 27V-45 Volts
Operating Range: 16V-60 Volts Min / Max Start Voltage: 22 V / 60 Volts
Max DC Short Circuit Current (Module Isc): 15 Amps
Overvoltage Class DC Port: II
DC Port Backfeed Under Single Fault: 0 Amps
PV Array Configuration: AC Side Protection Requires Max 20A per Branch Circuit

Output Data (AC)
Peak Output Power: 295 VA
Maximum Continuous Output Power: 290 VA
Nominal Voltage / Range: 230V / 184-276V
Nominal Output Current: 1.26 Amps
Nominal Frequency: 50 Hz
Extended Frequency Range: 45-55 Hz
Maximum Units per 20 A (L-N) Branch Circuit: 13 (230 VAC)
Overvoltage Class AC Port: III
AC Port Backfeed Current: 0 Amps
Power Factor Setting: 1.0
Power Factor (Adjustable): 0.7 Leading ... 0.7 Lagging
Efficiency: 96.5%
