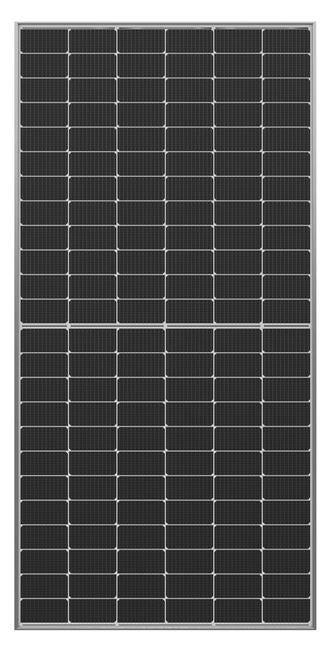

Q.PEAK DUO L-G8.2-425 Watt
The Q.Peak Duo panel technology features a higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.4 %. With innovative all-weather technology, the panel realizes optimal yields, whatever the weather with excellent low-light and temperature behavior.
Long-term yield security with Anti LID Technology, Anti PID Technology¹, Hot-Spot Protect and Traceable Quality Tra.Q™. Its high-tech aluminum alloy frame is certified for high snow (5400 Pa) and wind loads (4000 Pa).
Q.ANTUM TECHNOLOGY: LOW LEVELISED COST OF ELECTRICITY
Higher yield per surface area, lower BOS costs, higher
power classes, and an efficiency rate of up to 20.5%.
INNOVATIVE ALL-WEATHER TECHNOLOGY
Optimal yields, whatever the weather with excellent
low-light and temperature behaviour.
ENDURING HIGH PERFORMANCE
Long-term yield security with Anti LID Technology, Anti PID
, Hot-Spot Protect and Traceable Quality Tra.Q™.
EXTREME WEATHER RATING
High-tech aluminium alloy frame, certified for
high snow (5400Pa) and wind loads (2400Pa).
A RELIABLE INVESTMENT
Inclusive 12-year product warranty and 25-year
linear performance warranty2.
STATE OF THE ART MODULE TECHNOLOGY
Q.ANTUM DUO combines cutting edge cell separation
and innovative 12-busbar design with Q.ANTUM Technology.
APT test conditions according to IEC/TS 62804-1:2015, method B (−1500V, 168h)
Q CELL technology offers anti-PID/anti-LID, hot spot protection, and traceable quality
Low electricity generation costs - higher yield per surface area, and lower BOS costs due to higher power classes and an efficiency rate of up to 19%
Optimal yields in all weather- excellent low light and temperature behavior
Salt-mist corrosion test in accordance with IEC 61701, severity 6
High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind (4000 Pa) loads
25-year linear performance warranty and 12-year product warranty
Engineered in Germany
FEATURES HALF-CELL MODULES:
More power and stability through half cell technology and 6 busbar design
Cell interconnection with wires increases the internal reflection therefore reducing shading by up to 75%
Improved shade tolerance through independent upper and lower parts of the module results in improved output under partly shady conditions
|Q.PEAK DUO BLK-G8-2|
|Nominal Max Power (Pmax)||425 Watts|
|Max Power Voltage (Vmp)||41.39V|
|Max Power Current (Imp)||10.27A|
|Open Circuit Voltage (Voc||49.09V|
|Short Circuit Current (Isc)||10.78A|
|Fire Ratin||C (IEC) / TYPE 1 (UL)|
|Temperature Coefficient (Pmax)||-0.39%/°C|
|Operating Temperature||-40° to 85°C (-40° to 185°F)|
|Maximum System Voltage||1500V|
|Maximum Series Fuse Rating||20A|
Q.ANTUM solar half cells
|Cell Arrangement||72 (6 x 24 half cells)|
|Dimensions||81.9 in X 40.6 in x 1.38 in ( 2080 mm x 1030mm x 35 mm)|
|Weight||55.1 lbs (25kg)|
|Static Wind/Snow Load||2400 Pa/ 5400 Pa|
