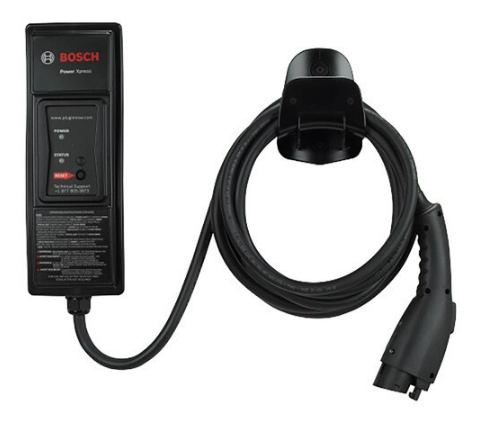

Bosch EV810 Series Waterproof Adjustable EV Charging Station
Weatherproof design for any environment - Commercial charging solutions
The weatherproof Bosch EV810 uses a fully-sealed enclosure to provide reliable charging in any condition. An adjustable power output ranges from 12 - 32 amps to help you find the most efficient charge for your electric vehicle and existing wiring. A convenient plug-in option and wall mounting plate allows for the EV810 to be easily moved. The Level 2 240V American made Power Xpress lets you choose between 12 - 32 amps of power, and can charge compatible EVs up 5 times faster than a standard 110V outlet.
The compact and durable design of the Bosch EV810 will withstand nearly any environment while taking up minimal space. Inside and out, the EV810 is versatile, reliable, and efficient.InstallationBosch EV810 is built to exceed NEMA 4X standards, making it weatherproof and ideal for indoor or outdoor installation, charging safely in any environment. Bosch recommends working with an experienced electrician to install your new charging station. Once installed, simply plug in your EV810 charger and start charging.
Charge Anywhere
The EV810 is built to withstand rain, sleet, snow, ice and heat, all while delivering a reliable, safe, and fast charge. Industry-leading NEMA 4X weatherproofing means you can safely charge indoors or out.
| Specifications | Single Pedestal | Dual Pedestal |
| Adjustable Amperage | 12-32 Amps | 12-32 Amps x2 |
| Voltage | 96-264 VAC | 96-264 VAC x2 |
| Cord Length | 23 ft | 23 ft x2 |
| Weight | 125 lbs | 150 lbs |
| Dimensions | Diameter 7.2" Height 58" |
Diameter 7.2" Height 68" |
| Input Current |
30 Amps | 30 Amps x2 |
| Breaker Size | 40 Amps | 40 Amps x2 |
| Temperature Rating |
-40°F to +122°F (-40°C to +50°C) |
-40°F to +122°F (-40°C to +50°C) |
| Enclosure | NEMA Type 4X; rain, sleet, snow, ice, cold, and heat resistant |
NEMA Type 4X; rain, sleet, snow, ice, cold, and heat resistant |
| Input/Output Powe |
7.2 kW | 7.2 kW x 2 |
The EV810 charging station is wind, rain, snow, sleet, ice, cold, and heat resistant, making it ideal for indoor or outdoor installation. It meets or exceeds NEMA 4X, NEC 625, SAE J1772 standards, and is ETL and cETL listed.
| EV810 Wall Mount Specifications | |
| Adjustable Amperage |
12-32 Amps |
| Voltage | 96-264 VAC |
| Cable length | 18 ft |
| Weight | 14 lbs |
| Dimensions | 14"L x 5"W x4"D |
| Input/Output Power |
7.2 kW |
| Wall Plug | 6-50P |
| Enclosure | NEMA 4X Type 4; rain, sleet, snow, ice, dust, cold, and heat resistant |
| Mounting | Wall or Pedestal |
