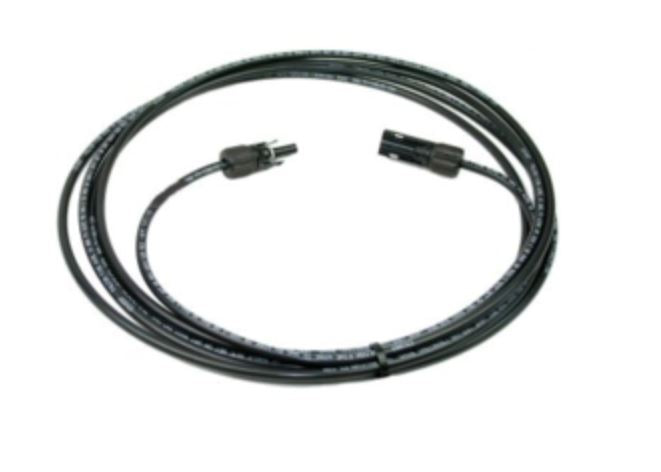

Amphenol Helios 30' H4 CONNECTOR CABLE #10 Gauge AWG
The Helios H4 meets NEC 2008 standards "as is", with no additional components needed. With a 25-year UV and ozone resistance, the connectors meet waterproof IP67 standards and withstand hydrolysis, oil, chemicals, abrasion, corrosion, and extreme temperature. The components are compatible with each other and are ready for field assembly with no small parts to lose. The RoHS compliant Helios H4 connectors are engineered to meet UL, TUV, IEC/CEI, NEC, and DIN V.
Specifications
| Amphenol solar H4 connector extension | |
| Rated current | 32A(2.5mm, AWG14), 40A(4.0mm, AWG12), 44A(6.0mm, AWG10), 65A(10.0mm, AWG8) |
| Rated voltage | 6kV for 1 minute, 10kV impulse (1.2/50µS)(IEC) |
| Typical contact resistance | 0.25m Ω |
| Contact material | Copper, tin plated |
| Contact system | Machined/cold formed contact with RADSOK® insert |
| Insulation material | PC |
| Locking mechanism | Snap-lock, special unlock tool required to un-mate as required by NEC2008 |
| Cable strain relief | Compression gland with ratcheting gland nut |
| Degree of protection | IP68 (1 meter, 1 hour) mated |
| Safety class | II (IEC61140 |
| Pollution degree | 2 (IEC60664) |
| Overvoltage category | III (IEC60664) |
| Flame class | UL94-V0 |
| Ambient temperature range | -40°C --- +90°C |
