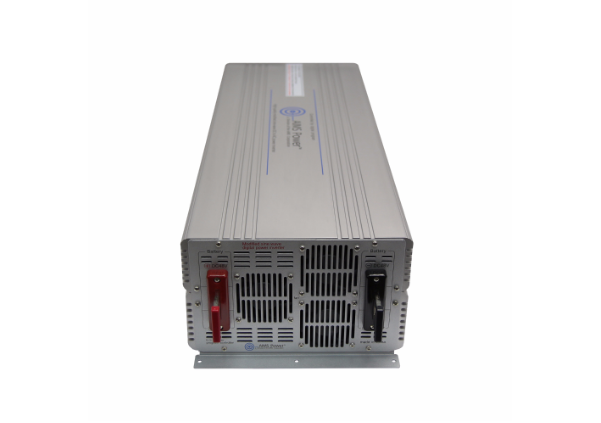

7000 Watt Power Inverter 48Vdc to 240Vac Industrial Grade 50/60 hz (modified)

SKU:
7000 Watt Power Inverter 48Vdc to 240Vac Industrial Grade 50/60 hz  (modified)
7000 Watt Power Inverter 48Vdc to 240Vac Industrial Grade 50/60 hz  (modified)

7000 Watt Power Inverter 48Vdc to 240Vac Industrial Grade 50/60 hz (modified)

SKU:
Regular price $1,185.00
/
Tax included.
 Catalog # 559



At 7000 watts and up to 14000 watts for 9 seconds, 48 VDC the AIMS Power Industrial Grade Modified Sine Wave Power Inverter promises to be a complete solution for any power need you present. From recreation to industrial applications or off-grid home and solar power needs, this 7000 watt modified sine wave inverter delivers enough durable power for high end equipment that requires substantial electricity powering items that require 240 VAC. This digitally outputted and phase corrected inverter is the recommended power solution for clean reliable output without noise or distortion.

Delivering an incredible 7000 watts of continuous power this utility-grade inverter was designed to reproduce the quality of electricity provided by power companies to create a stable AC power source. This inverter supplies ample power to run large pumps compressors power tools multiple appliances job sites and even a small house! It has PWM programming which corrects any fluctuation in voltage or frequency caused by battery fluctuation or sudden surges in power usage. It also has a longer than average surge time (9 seconds when over 7000 watts).



Features:

  • 7000W max continuous power
  • Modified sine wave
  • Power switch LED is also a self test light - Green
  • Overload fail LED - Red
  • Over Temperature LED indicator
  • Over Load LED indicator
  • 1 ac receptacles universal 240 volt
  • Direct connect terminal block for full load applications
  • On/off switch
  • Over Temperature protection
  • Over Load protection
  • Thermally controlled fan
  • DC volt Meter - Input meter
  • Percent load usage LED bar
  • Externally located re-settable circuit breakers
  • ac output short circuit protection
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor
 Specifications
Continuous output power 7000 Watts
Surge power capability (peak power) 14,000 Watts
The surge duration is electronically controlled and permits up to 9 seconds while the output is between 7000 and 14,000 watts. During this time the buzzer will sound until the inverter electronically shuts down.
dc input / operating voltage 42-60 Volts
Output voltage 240 Volts ac +/- 10%
Output wave form modified sine wave with phase correction
Output frequency 50/60 Hz +/- 1 Hz
Battery low voltage alarm 42 +/- 0.5 Volts
Battery low voltage shutdown 41.5 +/- 0.5 Volts
High input voltage protection 60 +/-0.5 volts
No load current 0.18 A (fan off) 0.66 A (fan on)
Start up AC amps 58
Continuous AC amps 29
Full load efficiency 90%
Auto Cooling Fan Start at 107 degrees F
Full load maximum operating temperature 154 degree F
AC Output Socket Type single Type 240 volt plug

Internal fuse protection
Product size (D x W x H) 21.26” X 8.43” X 5.35”
Weight 31 lbs



User Manual and Warranty Info PDF
