The AIM Power 5000 Watt Pure Sine Inverter - 24 volt 50/60 hz

The AIM Power 5000 Watt Pure Sine Inverter - 24 volt 50/60 hz
The AIM Power 5000 Watt Pure Sine Inverter - 24 volt 50/60 hz
The AIM Power 5000 Watt Pure Sine Inverter - 24 volt 50/60 hz

The AIM Power 5000 Watt Pure Sine Inverter - 24 volt 50/60 hz

Regular price $1,265.00
Tax included.
 Catalog # 557

 5000 Watt Pure Sine Inverter - Industrial Grade - 24 VDC 50 & 60 hz

AIMS Power is proud to bring you this new 5000 Watt Pure Sine Power Inverter, designed for harsh environments, which has been completely overhauled and now boasts a dual GFCI outlet and is FCC certified. This product also includes a thermally controlled fan, allowing for increased efficiency and less noise. It will continue to put out stable, pure sine power and maintain output voltage, even as you battery bank voltage decreases. High output performance is achieved through a DSP (Digital Signal Process) drive. This inverter is ideal for running nonlinear loads (such as variable speed motors and small compressors). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves, medical equipment, any with a circuit board and cordless drill battery chargers. An external battery voltage sensor will allow you to monitor your battery capacity and power consumption.

Packed with 5000 watts of power, this inverter can be used for off-grid home back up power systems, solar, boat, work vehicles and RVs. We designed this inverter to be more efficient operating at 24 VDC at higher loads.



  • 5000 Watt continuous power
  • 10000 Watt surge for 0.5 second
  • 24 Volt DC input
  • Pure sine wave
  • 60hz or 50hz switch
  • Highly efficient - improved ouptut at low voltage

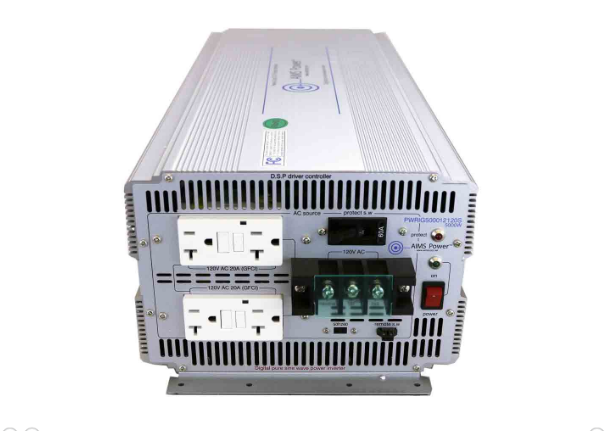

  • 2 - GFCI Dual Outlet
  • Direct connect AC Terminal Block

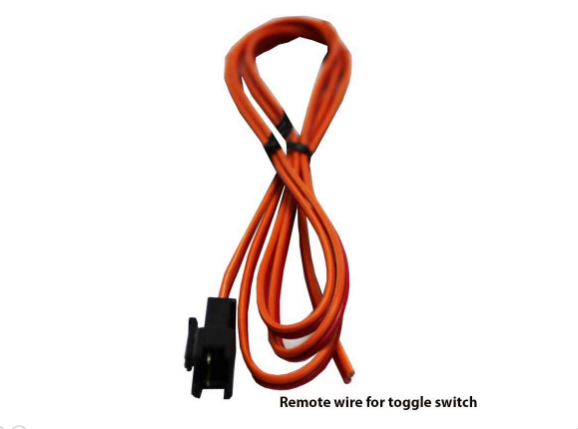

  • Connector and cable for remote on/off switch
  • Isolated ground & neutral
  • Short circuit protection (GFCI and AC Breaker)
  • On/off switch
  • 5 Function Protection LED indicator
  • AC Breaker
  • DC volt meter included

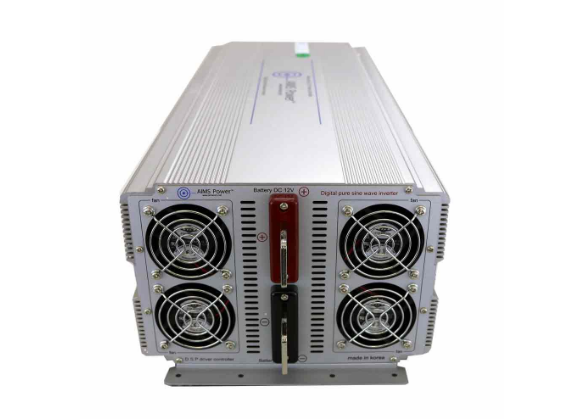

  • Dual cooling fans thermally controlled
  • Instruction manual
  • 1 year tech support
  • 1 Year Warranty Parts and Labor replacement



DC Input Voltage 26.4V (21V-30V)
Output Voltage no load 120Vac +/- 3%
Continuous 5000 Watts
Surge 10000 Watts
Efficiency @ full load 91%
No Load Current (Fan Off) 1.3A 24V
No Load Current (Fan On) 2.2A 24V
Low Battery Shut Down 20.0V
Low Battery Return on Power 22.4V
High Battery Shut Down 31.7V
High battery return on Power 30.0V
Frequency Selection 50/60hz
Over Temperature Protection -25ºC - 79ºC
Cooling Fan on Temperature 40ºC
GFCI Outlets rated at 20A per block.
Dimensions (inches) 23.75 x 8.88 x 6.25
Weight 27lbs


 5000 Watt Pure Sine 24 Volt - Manual / Warranty Info.
