4.8 KW, 48 VOLT MONOCRYSTALLINE SOLAR KIT with 100AH SMART LFP BATTERY and UNIRAC 315168M Rail 14' Light Rail

SKU:
4.8 KW, 48 VOLT MONOCRYSTALLINE SOLAR KIT with  100AH SMART LFP BATTERY and UNIRAC 315168M Rail 14&
4.8 KW, 48 VOLT MONOCRYSTALLINE SOLAR KIT with  100AH SMART LFP BATTERY and UNIRAC 315168M Rail 14&
4.8 KW, 48 VOLT MONOCRYSTALLINE SOLAR KIT with  100AH SMART LFP BATTERY and UNIRAC 315168M Rail 14&
4.8 KW, 48 VOLT MONOCRYSTALLINE SOLAR KIT with  100AH SMART LFP BATTERY and UNIRAC 315168M Rail 14&
4.8 KW, 48 VOLT MONOCRYSTALLINE SOLAR KIT with  100AH SMART LFP BATTERY and UNIRAC 315168M Rail 14&
4.8 KW, 48 VOLT MONOCRYSTALLINE SOLAR KIT with  100AH SMART LFP BATTERY and UNIRAC 315168M Rail 14&

4.8 KW, 48 VOLT MONOCRYSTALLINE SOLAR KIT with 100AH SMART LFP BATTERY and UNIRAC 315168M Rail 14' Light Rail

SKU:
Regular price $13,900.00
/
Tax included.
The 4800 WATT 48 VOLT Monocrystalline Solar Kit system is readymade for running typical active home appliances. Working with multiple appliances for all day use, this kit is designed to provide you with ultimate luxury freedom and satisfaction in generating / using your own power to provide a sustainable lifestyle. Used solar as a primary power source, this kit will be prepared for emergencies, some social events, and support multiple people power consumption.

KEY FEATURES
Versatile
  • Ideal for off-grid systems such as medium remote cabins, medium remote homes, or even tiny houses.
  • Works with off-grid residential and commercial rooftop systems
  • The MidNite Classic allows you to stack multiple charge controllers, giving you more options for expansion
Safe
  • Newly added MidNite MNEDC- Quad houses included MNEDC100 breaker which acts as a DC disconnect for protection of your battery bank and charge controller
Efficient
  • Excellent performance in low-light environments
  • High Efficiency PERC Solar Cells, Black frame solar panel
  • With the MidNite Classic charge controller, you can monitor your system remotely through a user's local network or via midnitesolar.com

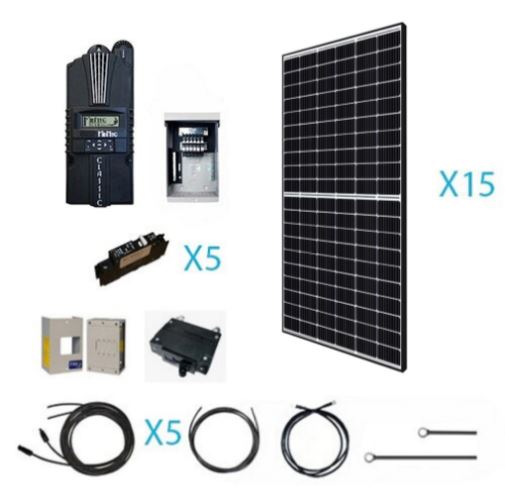

PACKAGE INCLUDES

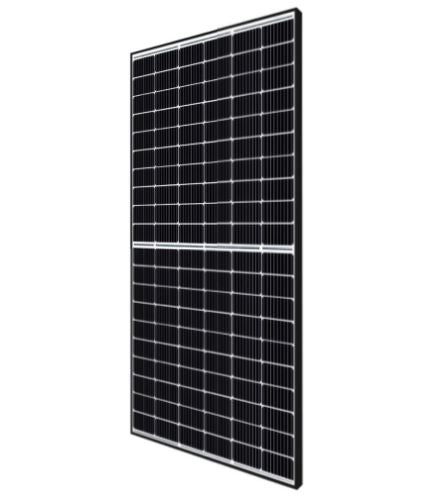

  • 320W Mono Solar Panel x 15

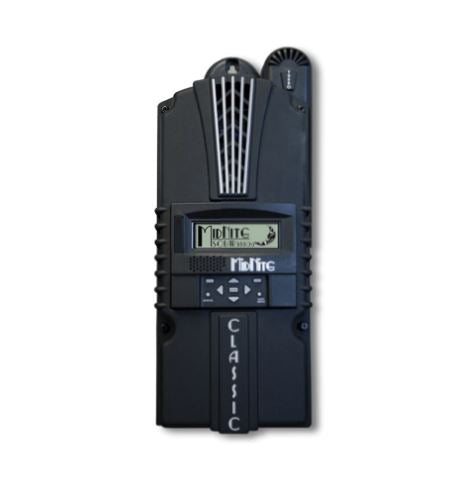

  • MidNite Classic MPPT Charge Controller-150 x 1

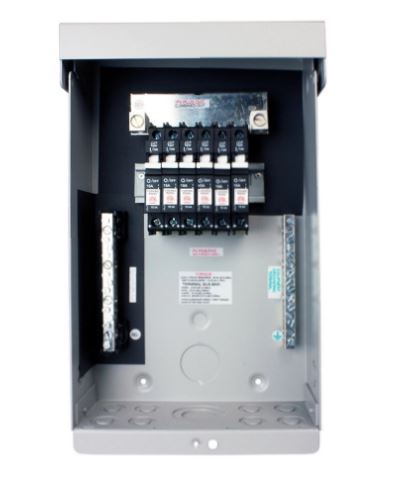

  • MidNite Solar Combiner Box MNPV6 x 1

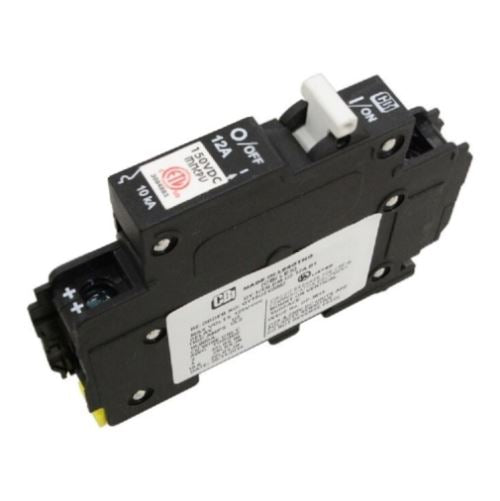

  • MidNite Solar 15A-150 Circuit Breaker x 5
  • MidNite Breaker MNEDC100 x 1
  • MidNite MNEDC- Quad Enclosure x 1
  • 8ft 8AWG Stranded and 40ft 10AWG AK (1 x Stranded / 5 x AK)
  • 4AWG Tray Cable and 4AWG THHN and 4AWG Double Ring (1 x THHN/ 1 x TC /1 x Ring)
  • Rail: UNIRAC 315168M Rail 14' Light Rail Mill x 8
  • Mid Clamp: Unirac 302030M, 30mm-51mm, Solar Mount Pro Series Universal Midclamp x 22
  • End Clamp: Unirac Solar Mount Preassembled End Clamp x 16
  • Grounding Lug: Unirac, Grounding Lug, Tin Plated Copper, 008002S x 4
  • Flashing: Unirac 004055M FLASHKIT PRO MILL x 30

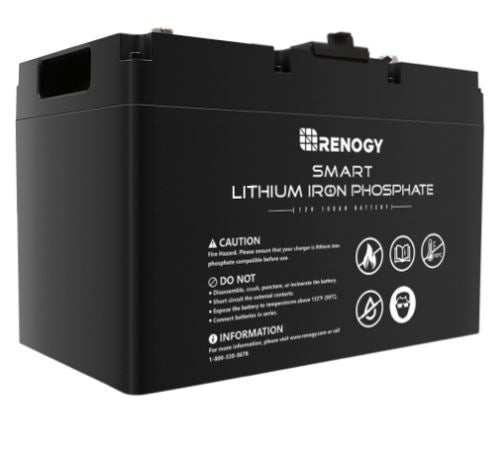

  • 100AH SMART LFP BATTERY x 3
  • Wiring: 4AWG Interconnect cables x 4



Specifications MIDNITE 150
Solar Panel Nominal Voltage: 12V - 72V
Max Power at STC: 320W Rated Charge Current: 96A @ 12V, 94A @ 24V, 86A @ 48V
Optimum Operating Voltage (Vmp): 33.3V Max. PV Input Voltage: 150 VDC
Optimum Operating Current (Imp): 9.61A Power Conversion Efficiency: 98% (Typical system)
Open Circuit Voltage: 40.1V Self-Consumption: 2.8W
Short Circuit Current: 10.14A Common Ground: Negative
Operating Temperature: -40°F to +185°F / -40°C to 85°C Dimensions: 14.9 x 6.0 x 4.0 in / 378.5 x 152.4 x 101.6 mm
Dimensions: 65.9 x 39.1 x1.38 in / 1675 x 992 x 35 Weight: 12 lbs / 5.45 kgs
Weight: 40.8 lbs / 18.5kg  Terminals: 4 AWG max
Certifications: ETL listed to UL1741 and CSA
MNEPV BREAKER MNPV6 COMBINER
Model: MNEPV Model: MNPV6

 Max. Input Voltage: 150 VDC

Max. Input Voltage: 150 VDC
Terminals: 14-6AWG
Max. # Circuit Breakers: 6 X 150VDC Breakers
# of Poles: 1 Terminals: 14-6AWG
Rating: 15A Size: 9.0 x 14 x 4 in / 228.6 x 355.6 x 101.6
Weight: 4 lbs / 1.8 kgs
MNEDC100 QUAD ENCLOSURE
Rating: 100A Enclosure: Aluminum General Purpose
Max. Input Volts: 150 VDC # of Breakers: up to 4 (5-100A)
Weight: 1 lb Dimensions: 4 x 9 x 5 in / 101.6 x 228.6 x 127 mm
Dimensions: 8.0 x 4.0 x 3.0 in / 203.2 x 101.6 x 76.2 mm Weight: 1.65 lbs / .75 kgs
Terminals: 1/4" stud terminals Environmental Rating: Type 1 (Indoor)
ADAPTOR KIT 8AWG THHN (PAIR)
Length: 40ft Length: 8ft
AWG: 10 AWG: 8
Rating Voltage: 600/1000V Rating Voltage: 600/1000V
Temperature: -40°F to +185°F / -40°C to 85°C Temperature: -40°F to +185°F / -40°C to 85°C
4AWG TRAY CABLE (1X16FT, 1X8FT) + DOUBLE RING (1X8FT)
Length: 16 ft
AWG: 4
Rated Voltage: 600/1000V
Temperature: -40°F to +185°F / -40°C to 85°C
WARRANTY INFORMATION
Panels 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
5-year material and workmanship warranty
Accessories 1-year material warranty



..
