2.5 KW, 48 VOLT MONOCRYSTALLINE SOLAR/Battery Kit - Ideal for remote off-grid power solutions

SKU:
2.5 KW, 48 VOLT MONOCRYSTALLINE SOLAR/Battery Kit - Ideal for remote off-grid power solutions
2.5 KW, 48 VOLT MONOCRYSTALLINE SOLAR/Battery Kit - Ideal for remote off-grid power solutions
2.5 KW, 48 VOLT MONOCRYSTALLINE SOLAR/Battery Kit - Ideal for remote off-grid power solutions
2.5 KW, 48 VOLT MONOCRYSTALLINE SOLAR/Battery Kit - Ideal for remote off-grid power solutions

2.5 KW, 48 VOLT MONOCRYSTALLINE SOLAR/Battery Kit - Ideal for remote off-grid power solutions

SKU:
Regular price $8,565.00
/
Tax included.

The Renogy 2500 WATT 48 VOLT Monocrystalline Solar Kit is the power solution for owners with tiny, mobile, small remote, and even semi-permanent installations where power needs are frequented and needed more than an ever so often weekend retreats. Featuring our new 320W panel, you get a little more power (2560W actual) for your needs. Occasionally used, this kit will allow you to power mid-tier luxury items and can be considered a primary power source in most cases or can provide autonomous backup power in case there is no sun. Rest assured this will serve great for emergency situations, gatherings, and even some events where power needs are needed more.

KEY FEATURES

Versatile

  • Ideal for off-grid systems such as medium remote cabins, medium remote homes, or even tiny houses.
  • Works with off-grid residential and commercial rooftop systems
  • The MidNite Classic allows you to stack multiple charge controllers, giving you more options for expansion

Safe

  • Newly added MidNite MNEDC- Quad houses included MNEDC100 breaker which acts as a DC disconnect for protection of your battery bank and charge controller

Efficient

  • Excellent performance in low-light environments
  • High Efficiency PERC Solar Cells, Black frame solar panel
  • With the MidNite Classic charge controller, you can monitor your system remotely through a user's local network or via midnitesolar.com

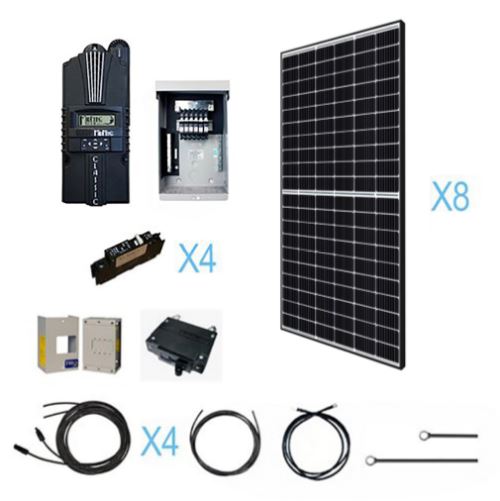

PACKAGE INCLUDES

  • Renogy 320W Mono Solar Panel x 8
  • MidNite Classic MPPT Charge Controller-150 x 1
  • MidNite Solar Combiner Box MNPV6  x 1
  • MidNite Solar 15A-150 Circuit Breaker x 4
  • MidNite Breaker MNEDC100 x 1
  • MidNite MNEDC- Quad Enclosure x 1
  • 8ft 8AWG Stranded and 40ft 10AWG AK (1 x Stranded / 4 x AK)
  • 4AWG Tray Cable and 4AWG THHN and 4AWG Double Ring (1 x THHN/ 1 x TC /1 x Ring)
  • 200AH AGM BATTERY x 8
  • Wiring: 4AWG Interconnect cables x 8
  • Rail: UNIRAC 315168M Rail 14' Light Rail Mill x 4
  • Mid Clamp: Unirac 302030M, 30mm-51mm, Solar Mount Pro Series Universal Midclamp x 12
  • End Clamp: Unirac Solar Mount Preassembled End Clamp x 8
  • Grounding Lug: Unirac, Grounding Lug, Tin Plated Copper, 008002S x 2
  • Flashing: Unirac 004055M FLASHKIT PRO MILL x 16



 Specifications
SOLAR PANEL MIDNITE 150
Max Power at STC: 320W Nominal Voltage: 12V - 72V
Optimum Operating Voltage (Vmp): 33.3V Rated Charge Current: 96A @ 12V, 94A @ 24V, 86A @ 48V
Optimum Operating Current (Imp): 9.61A Max. PV Input Voltage: 150 VDC
Open Circuit Voltage: 40.1V Power Conversion Efficiency: 98% (Typical system)
Short Circuit Current: 10.14A Self-Consumption: 2.8W
Operating Temperature: -40°F to +185°F / -40°C to 85°C Common Ground: Negative
Dimensions: 65.9 x 39.1 x1.38 in / 1675 x 992 x 35 Dimensions: 14.9 x 6.0 x 4.0 in / 378.5 x 152.4 x 101.6 mm
Weight: 40.8 lbs / 18.5kg Weight: 12 lbs / 5.45 kgs
Terminals: 4 AWG max
Certifications: ETL listed to UL1741 and CSA
MNEPV BREAKER MNPV6 COMBINER
Model: MNEPV Model: MNPV6
Max. Input Voltage: 150 VDC Max. Input Voltage: 150 VDC
Terminals: 14-6AWG Max. # Circuit Breakers: 6 X 150VDC Breakers
# of Poles: 1 Terminals: 14-6AWG
Rating: 15A Size: 9.0 x 14 x 4 in / 228.6 x 355.6 x 101.6
Weight: 4 lbs / 1.8 kgs
MNEDC100 QUAD ENCLOSURE
Rating: 100A Enclosure: Aluminum General Purpose
Max. Input Volts: 150 VDC # of Breakers: up to 4 (5-100A)
Weight: 1 lb Dimensions: 4 x 9 x 5 in / 101.6 x 228.6 x 127 mm
Dimensions: 8.0 x 4.0 x 3.0 in / 203.2 x 101.6 x 76.2 mm Weight: 1.65 lbs / .75 kgs
Terminals: 1/4" stud terminals Environmental Rating: Type 1 (Indoor)
ADAPTOR KIT 8AWG THHN (PAIR)
Length: 40ft Length: 8ft
AWG: 10 AWG: 8
Rating Voltage: 600/1000V Rating Voltage: 600/1000V
Temperature: -40°F to +185°F / -40°C to 85°C Temperature: -40°F to +185°F / -40°C to 85°C
4AWG TRAY CABLE (1X16FT, 1X8FT) + DOUBLE RING (1X8FT)
Length:16 ft
AWG: 4
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F / -40°C to 85°C
WARRANTY INFORMATION
Panels 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty
Accessories 1-year material warranty







..
