160 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

SKU: SKU: RNG-160DB-H
160 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL
160 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

160 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

SKU: SKU: RNG-160DB-H
Regular price $270.00
/
Tax included.

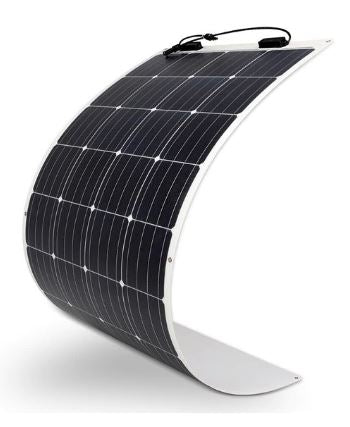

Meet the Renogy 160W Flexible Solar Panel, the culmination of cutting-edge technology and precision. This ultra-lightweight panel can achieve up to an incredible 248-degree arc of flexibility thanks to advanced solar cell technology and lamination techniques. At 6.2 pounds, this panel weighs 70% less than its standard counterpart and is less than 5% as thick. Easy to transport and install, this solar panel can be affixed to uneven surfaces, making it ideal for airstreams, campers, and boats. The ultra-lightweight design allows for incredibly simple storage, transport, and installation.

Mounting Recommendation: Modules may be mounted using silicon structural adhesive on the backside of the panel. For detailed installation methods, please consult a local contractor for guidance.

KEY FEATURES
Extremely Flexible
With a flex range of up to 248 degrees, this panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream
Ultra Lightweight
Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze
Super Thin Lamination
Discreet and thin, the Renogy 160W Lightweight Panel is only a tenth of an inch thick. Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup
Highly Durable
Rigorously tested, the 160W panel is designed to withstand extreme wind of up to 2400Pa and snow loads of up to 5400Pa

SPECIFICATIONS

Maximum Power at STC*  160 W
Solar Cells 36 Monocrystalline cells
Junction Box IP 68
Panel Dimensions: 59.2x26.5x0.08 In
Weight 6.2 lbs
Cables 12 AWG, 17.7 In(Negative Cable)  5.9 In(Positive Cable)
Cell Efficiency 21.0%
Optimum Operating Voltage (Vmp) 19.1 V
Optimum Operating Current (Imp) 8.38A
Open-Circuit Voltage (Voc) 23 V
Short-Circuit Current (Isc) 8.88A
Maximum System Voltage 600 VDC
Maximum Series Fuse Rating 20 A




WARRANTY

25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty

CERTIFICATION



Manufacturer Product Information


Warranty

..
