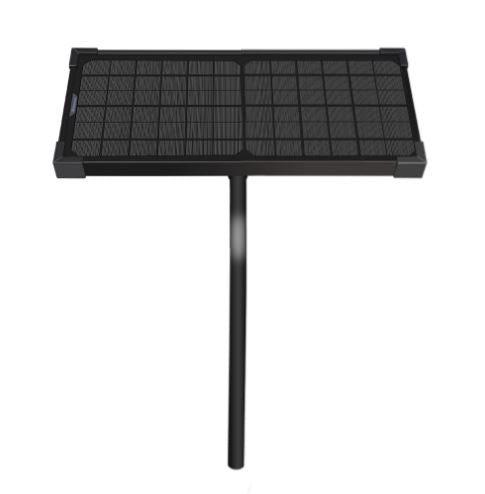

Looking to power an automatic gate system without access to shore power? Are you in need of a reliable backup solution? The Renogy 10 Watt Solar Panel Charger was specifically designed to power gate openers with the power of the sun! The 4-meter charging cable provide flexibility for optimal sunlight exposure. Renogy’s rugged design and weatherproof junction box can protect the 10 Watt Solar Panel Charger against the elements and decrease any chance of short-circuiting issues. For heavy duty applications, multiple solar panels chargers can be connected in parallel for increased performance. Decrease the chance of getting locked out with Renogy’s 10 Watt Solar Panel Charger!

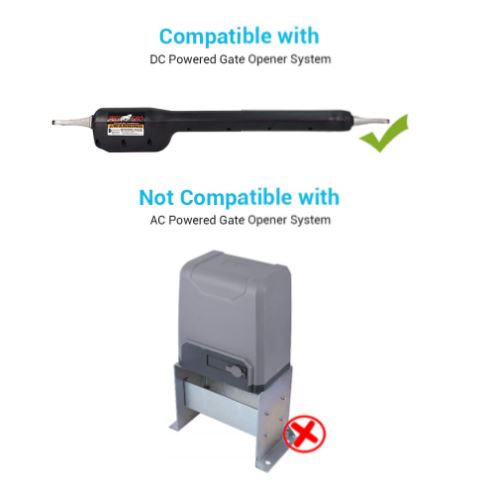

Note: If the control board of your gate opener system does not have DC or solar terminals, you may need a charge controller to connect the solar panel charger to your gate opener system.
- With highly efficient solar cells, Renogy’s 10 Watt Solar Panel Charger can keep the battery of your gate opener system fully charged under direct sunlight.

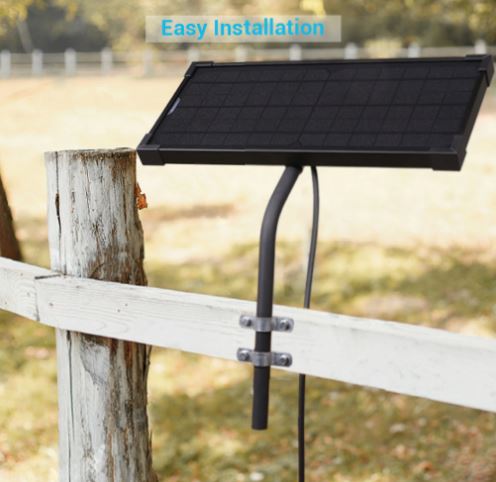

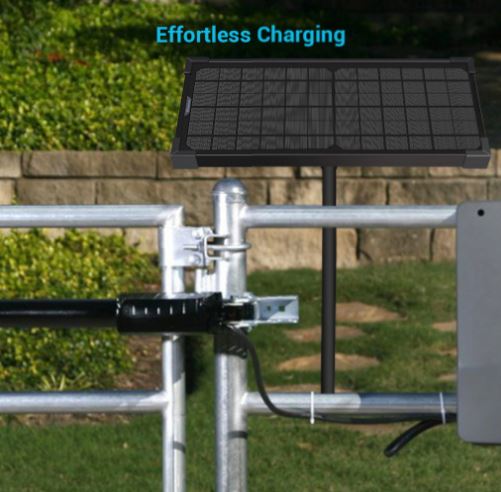

- Simply connect the Renogy 10 Watt Solar Panel Charger to the control board of your gate opener system and enjoy an effortless charging experience.

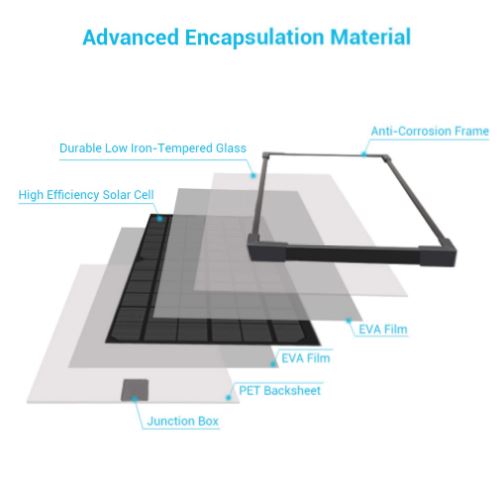

The rugged design and waterproof junction box ensures that Renogy’s 10 Watt Solar Panel Charger can withstand rough weather conditions.
|Short Circuit Current||0.61A|
|Open Circuit Voltage||21.6V|
|Optimum Operating Current||0.56A|
|Opitmum Operating Voltage||18V|
|Operating Temperature||-4 °F~167 °F / -20 °C~75 °C|
|Dimensions||16.7 x 7.5 x 1.0 inch / 425 x 190 x 25 mm|
|Wire Length||13.1 feet / 2m|
|Weight||2.84 lbs. / 1.29 kg|
|Wire AWG Size||16 AWG|
|Warranty||1 year material warranty|

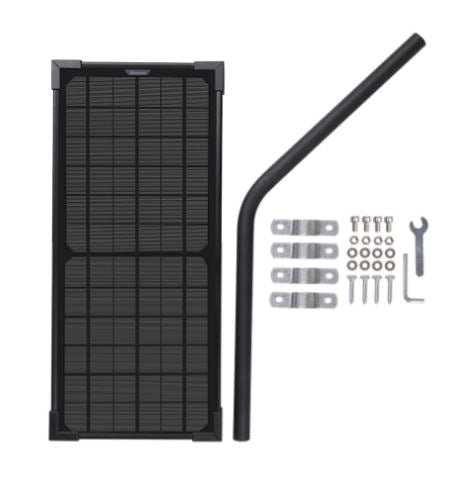

- 10W Solar Panel Charger X 1
- Hex Cap Screw X 4
- Pipe Clamp X 4
- Curved Pipe X 1
- Nut X 4
- Wood Screw X 4
- Hex Key X 1
- Wrench X 1
- User Manual X 1
