Renogy 50 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

SKU: RNG-50DB-H
Renogy 50 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL
Renogy 50 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

Renogy 50 WATT 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

SKU: RNG-50DB-H
Regular price $107.00
/
Tax included.
 Item#SWS354

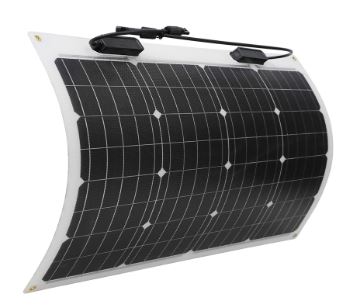

Traditional solar panels are rigid and often enclosed in tempered glass. The Renogy 50W Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of a van or vehicle, the Renogy 50W Lightweight Solar Panel is thin and capable of flexing up to 248 degrees. At 2.87 pounds, this flexible solar panel weighs only a quarter of its traditional 50W counterpart. Highly flexible, this lightweight panel can easily be installed on curved surfaces. This panel can also be used for other various applications, including providing power on a boat or teardrop trailer.

Mounting Recommendation: Modules may be mounted using silicon structural adhesive on the backside of the panel. For detailed installation methods, please consult a local contractor for guidance.

KEY FEATURES
Extremely Flexible
This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream
Ultra Lightweight
Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze
Super Thin Lamination
Hardly noticeable, the Renogy 50W Lightweight Panel laid flat is only a tenth of an inch tall making it ideal for a stealthy solar setup.
Highly Durable
Rigorously tested, the 50W panel was designed to withstand extreme wind of up to 2400 Pa and snow loads of up to 5400 Pa



Product Specifications
Maximum Power at STC* 50 W
Operating Temperature -40°F to 185°F
Optimum Operating Voltage (Vmp) 18.5V
Optimum Operating Current (Imp) 2.71A
Open-Circuit Voltage (Voc) 22.6V
Short-Circuit Current (Isc) 2.92A

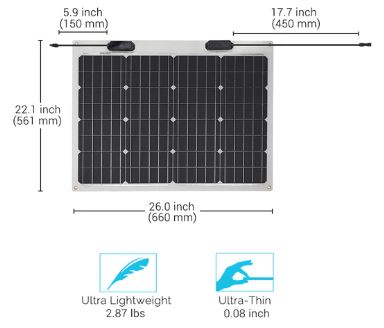

Dimensions 26.5 x 20.0 x 0.08 In
Weight: 2.87 lbs
Cables 12AWG
Cables Length 17.7In(Negative Cable), 5.9In(Positive Cable)


WARRANTY INFORMATION

25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty



 Manufacturer's Product Specifications

RNG-50DB-H_spec.pdf
Warranty.pdf



..
