Regular price $239.00
/
Tax included.


 Item#SWS359

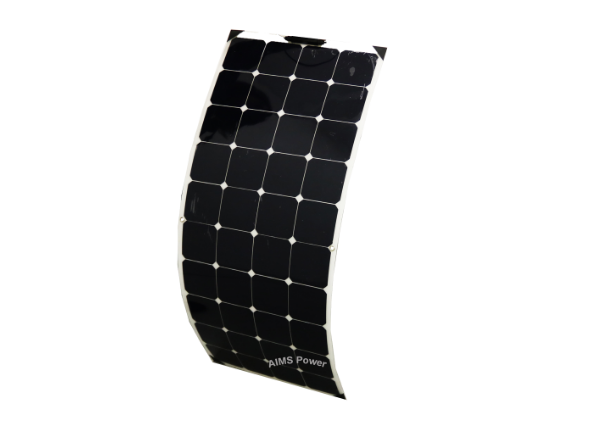

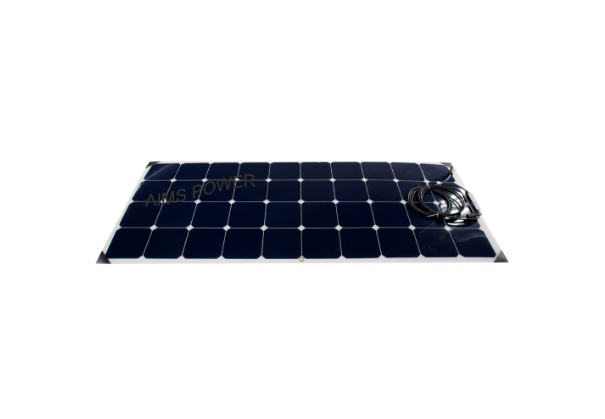

The AIMS Power flexible, bendable, thin solar panel is rugged, easy to install panel works with any application. Built for uneven and curved surfaces. No custom mounting needed. This versatile panel can be used in non-permanent or permanent applications. Easily slides into tight spaces for storage. Primarily used to charge batteries for back up power systems. Whether you want some extra power on your golf cart or a weekend camping trip, these panels will get the job done without the hassle of complicated mounting systems. Make sure to view our complete kits.

5 year warranty, 10 year 80% output

Features

  • Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest
  • Extremely durable and rugged
  • Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, sewn to heavy duty material such as sun shades

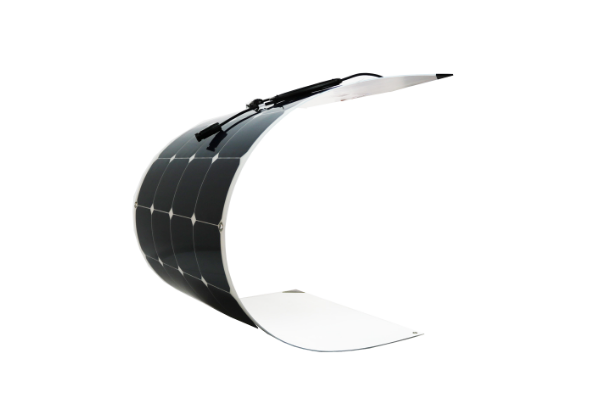

  • Up to 90⁰ degree bend (more degree of bend with the 130 watt model vs. 60 watt, smaller panels have less bend)
  • Weather resistant. Appropriate for outdoor use.

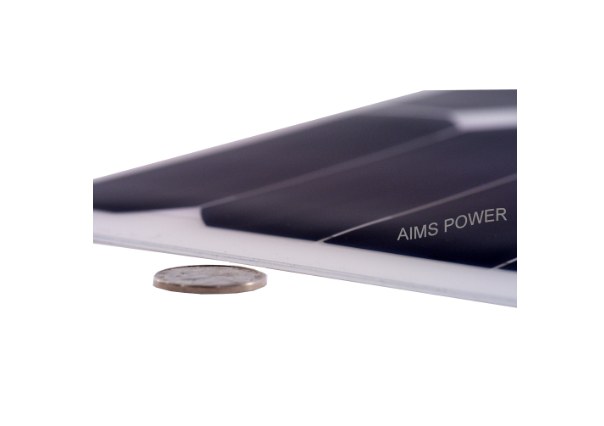

  • Thickness compares to the thickness of a nickel
  • Pre drilled grommet holes aids in various installation methods such as zip ties, Velcro, straps for non-permanent applications

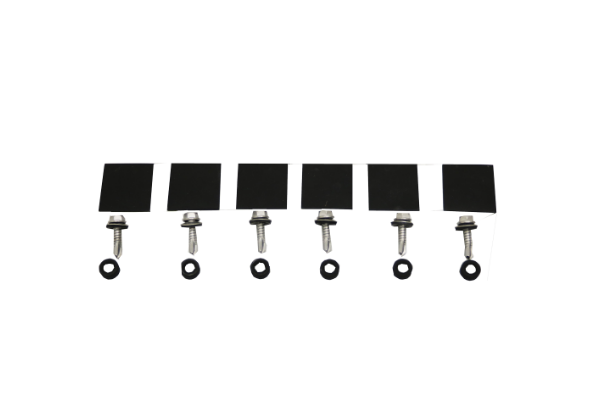

  • Includes mounting kit for RVs and boats. Self tap screws and waterproof seals included.
  • Lightweight and super thin allowing use of a strong adhesive or industrial thread for permanent mounting applications
  • Bypass diode minimizes the power drop when shaded
  • Modules are independently tested to ensure conformance with certification and regulatory standards
  • Manufacturing facility certified to ISO 9001 quality management system standards
  • Panels capable of +/- 3% power efficiency than rated
  • 5 year warranty, 10 year 80% output
  • Junction Box: IP 67 rated
  • Number of cells: 4 x 10

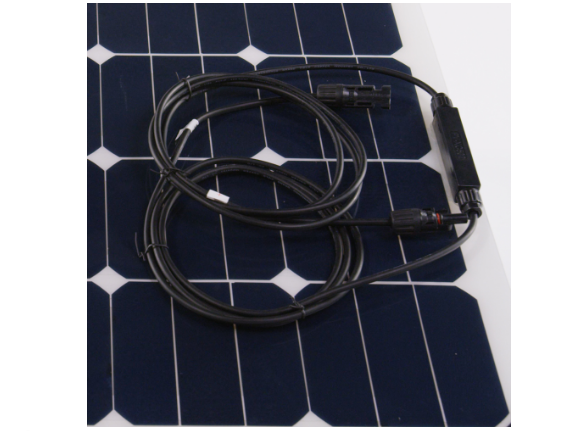

  • PV Wire: 10 AWG with MC 4 male and female connectors 76" length
  • Fire Safety Class: Class A
 SPECIFICATIONS
High performance light transmittance - up to 93%
Cell Efficiency 22.3%
Module Efficiency 19.5%
Maximum Power 130 Watt
Tolerance Wattage +/- 5%
Maximum System 600V DC (UL)
Optimum Operating Voltage (Vmp)  22Volts
Optimum Operating Current (Imp) 5.91A
Open-Circuit Voltage (Voc) 26.4
Short-Circuit Current (Isc) 6.35
Power Tolerance: 0=+5W 5W +/-
Temperature Coefficients ⁰C
Power 0.38% / °C
Current 2.2mA / °C
Voltage ­60.8V / °C
Temperature Range -40⁰F to 185⁰F
Dimensions: inches 51 7/8x21 3/8x0.12
Weight 4.96 lb
Certifications CE, ETL, TUV and RoHS
