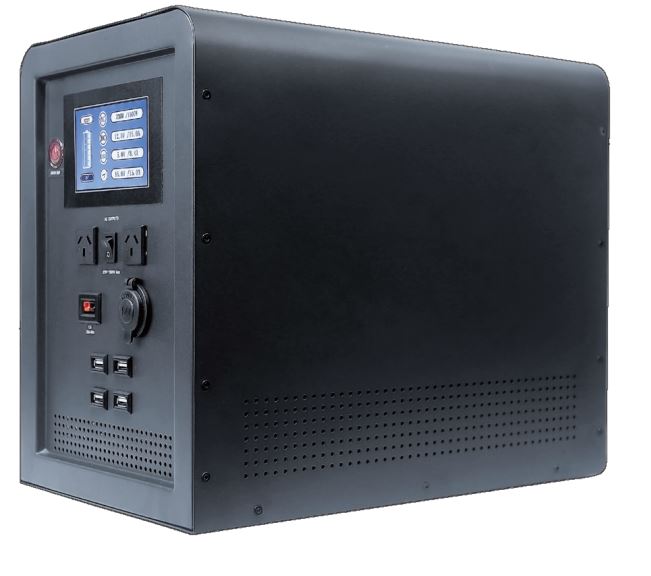

KILOVAULT RES-Q 1500 WATT PORTABLE BACKUP POWER UNIT (w/out Solar Panels and Battery)
POWER STATION UNIT (ALONE) FEATURES:
Integrated 1500W Pure Sinewave Inverter
Integrated 1200Wh KiloVault Lithium (Li-FePO4) Battery
Integrated 25A Solar Charge Controller

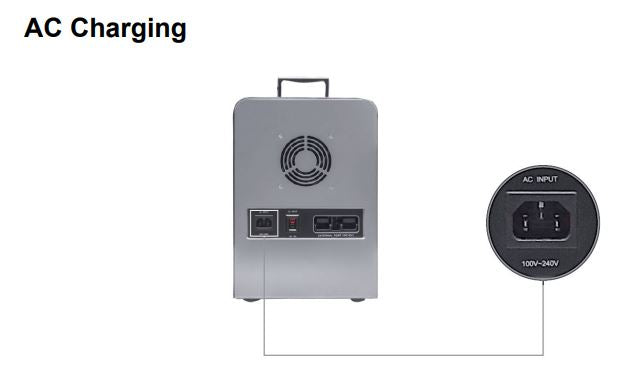

Built-in AC Charger

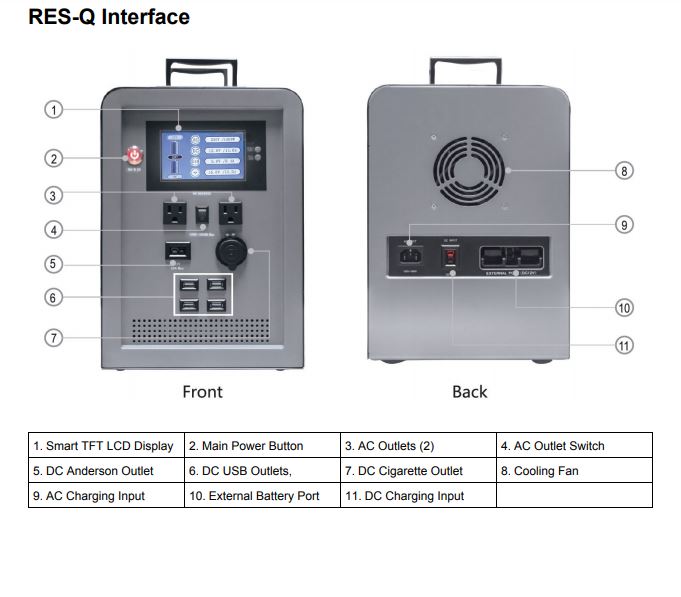

Liquid Crystal Display Status
2x 120V AC Outlets
4X DC USB Outlets
1x 12V Cigarette Lighter Adapter
Lead Acid Battery Expansion Port
2 Year Warranty
| Specifications: | 1500 RES-Q |
| Rated Energy Capacity (Watt Hours) |
1280 Wh |
| DC Voltage Nominal | 12.8V |
| Nominal Amp-Hour Capacity | 100 Ah |
| Cycle Rating | 2500+ cycles @ 80% Depth of Discharge |
| Minimum Charge Time | 2.5 Hours |
| Charge Retention | 1 Year (85%) |
| Integrated Inverter | 1500W continuous output 120VAC pure sinewave Slow start feature protects inverter from over-current draw |
| Maximum Charge Current | 15A @ 12V from AC or DC circuitry |
| Maximum DC Output | 20A |
| Operating Temperature | 23 – 111°F (-5 – 45°C) |
| Surge Ratings | 3000W (5ms) Soft Start (for short surges) |
| Environmental Rating | Indoor rated only - not rated for rainy, damp, snowy conditions |
| Expansion Port for External Battery | We highly recommend using a LFP battery (ie. KiloVault). The RES-Q completely discharges the external battery, down to 10.5V, before switching to the internal battery. Completely discharging a lead-acid battery will likely damage it and permanently reduce its capacity. |
| Dimensions (L X H X W) |
18.9 in x 15.7 in x 9.4 in (480 x 400 x 238 mm) |
| Weight | 61.7 lbs |
| Product Specifications |
| KLV_RESQ_Datasheet_202003.pdf |
| Portable_Power_Station_1500W_ResQ_V1_Manual.pdf |
..
