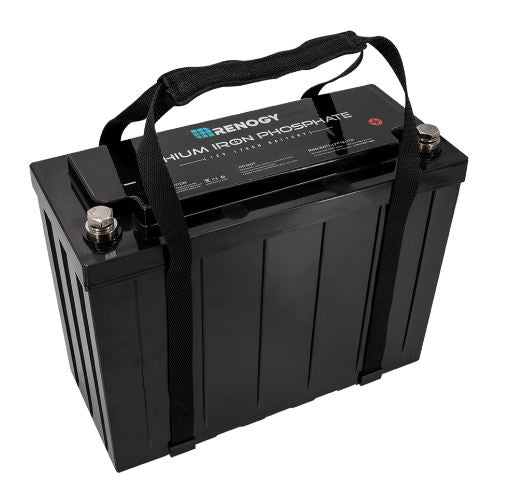

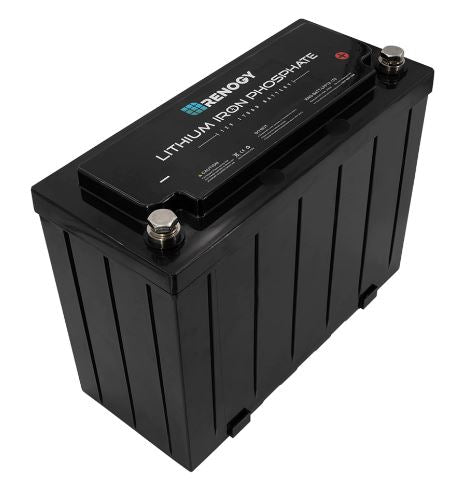

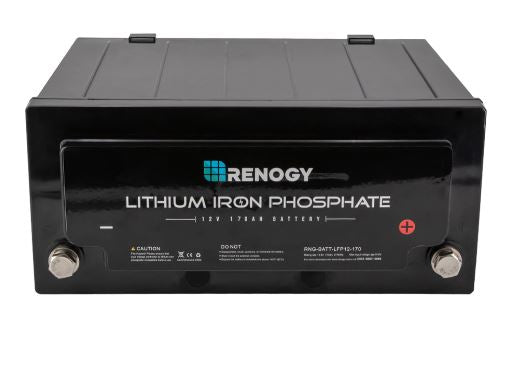

12V 170AH Lithium-Iron Phosphate Battery
The Renogy 12V 170AH Lithium-Iron Phosphate Battery is perfect for deep-cycle applications including cabins, solar/wind energy systems, UPS battery backups, telecommunication systems, medical equipment, and more. Unlike gel or lead-acid batteries, the Renogy LFP battery is safer, lighter, and more powerful with a long service and shelf life to boot. Invest in this sealed, maintenance-free battery for your off-grid system today!
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or email support@renogy.com.
Note:
Please be aware that if the batteries' Battery Management System (BMS) is activated and the battery voltage shows 0V, you must use a compatible Li charger to reactivate our Li batteries.
Make sure to tightly screw the battery terminals in, having loose battery terminals will cause the terminals to build up heat resulting in damage to the battery.
Please be aware that the batteries' M12 terminals are thicker and will not work with any of our battery cable offerings, they require 1/2" ring terminals for proper connectivity. Custom Wires available upon request.
DO NOT string this battery in series. It is made ONLY for parallel connections using identical batteries.
KEY FEATURES
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or email support@renogy.com.
Note:
Please be aware that if the batteries' Battery Management System (BMS) is activated and the battery voltage shows 0V, you must use a compatible Li charger to reactivate our Li batteries.
Make sure to tightly screw the battery terminals in, having loose battery terminals will cause the terminals to build up heat resulting in damage to the battery.
Please be aware that the batteries' M12 terminals are thicker and will not work with any of our battery cable offerings, they require 1/2" ring terminals for proper connectivity. Custom Wires available upon request.
DO NOT string this battery in series. It is made ONLY for parallel connections using identical batteries.
KEY FEATURES
- Lightweight
- BMS Protection
- Low Self-Discharge
- Triplex Sealed Construction
- Patent Designed Construction
| ELECTRIC CHARACTERISTICS | |
| Nominal Voltage:12.8V | Energy Density:149.1Wh/L |
| Rated Capacity (0.2C):170Ah | Internal Resistance:≤10mΩ |
| Minimal Rated Capacity (0.2C):161.5Ah | Cycle Life (0.2C, 20±5°C):80% DOD 1500 cycles |
| Energy:2176Wh | Specific Energy:103.6Wh/kg |
| CHARGING PARAMETERS | |
| Charge Voltage | 14.4 ± 0.2V |
| Maximum Charge Current | 85A |
| Charge Cut-off Voltage | 14.6V |
| DISCHARGING PARAMETERS | |
| Maximum Continuous Discharge Current | 125A |
| Discharge Cut-off Voltage | ≥10V |
| TEMPERATURE PARAMETERS OPERATION TEMPERATURE RANGE | |
| Charge | 32~113℉ / 0～45℃ |
| Discharge | -4~140℉ / -20～60℃ |
| Recommended | 73.4 ± 9℉ / 23 ± 5℃ |
| TEMPERATURE PARAMETERS STORAGE TEMPERATURE RANGE | |
| Less Than 1 Year | 32~77℉ / 0~25℃ |
| Less Than 3 Months | 14~95℉ / -10~35℃ |
| MECHANICAL PROPERTIES | |
| Length | 357mm / 14.0 inch |
| Width | 155mm / 6.1 inch |
| Height | 270mm / 10.6 inch |
| Cell Model | IFR26650-3.4AH |
| Weight | 22 kg / 48.5 lbs. |
| Housing Material | ABS+PC |
| Terminal Model | M12x1.75x16mm |
| Assembly Method | 4S53P |
