7.7 KW Mission Solar -Simpliphi Storage Backup Power System

SKU:
7.7 KW Mission Solar -Simpliphi Storage Backup Power System
7.7 KW Mission Solar -Simpliphi Storage Backup Power System

7.7 KW Mission Solar -Simpliphi Storage Backup Power System

SKU:
Regular price $13,400.00
/
Tax included.

(24 Panels) Mission, 320W PV Module, MC4, PV Wire, 40mm Black Frame, Black Back
Sheet, BoB, 60 Cell Mono-Perc, 20A Fuse, 1000VDC, 5BB, BAA, 294.2 PTC,
MSE320SR8T

 SimpliPhi, Phi 3.8, Battery, 3.8kWh, LFP (Lithium Iron Phosphate), 48 volt, with
80A disco and BMS, UL-1973, PHI-3.8-48-60

OutBack, Radian GS8048A-01 battery inverter, 8000W, 120/240VAC, 60Hz, 50A
Transfer, 48VDC, Sinewave, Grid Tied, 5 Yr Warr, 115A Charger, with BTS & dual
AC inputs, UL1741-SA (Rule-21), Powder Coated Finish, GS8048A-01

Outback, FM80-150VDC MPPT Charge Controller, 80A, 150VDC,
12/24/48/60VDC, FM80



High-Power, High-Quality. This is what comes to mind when you think of Mission Solar Energy. Our name is synonymous with quality, and we engineer our modules under the strictest quality standards. Mission Solar panels are built three times tougher than industry standards. Watch our video to see just how durable they are…tough means tough!

PROVEN RELIABILITY

Our modules receive multiple quality checks throughout the entire process and are subject to stringent quality and reliability testing. Each product exceeds industry requirements and is backed by a 25- year power and product warranty.

Product Description

Mission, 320W PV Module, MC4, PV Wire, 40mm Black Frame, Black Back Sheet, BoB, 60 Cell Mono-Perc, 20A Fuse, 1000VDC, 5BB, BAA, 294.2 PTC,

Manufacturer Part Number: : MSE320SR8T

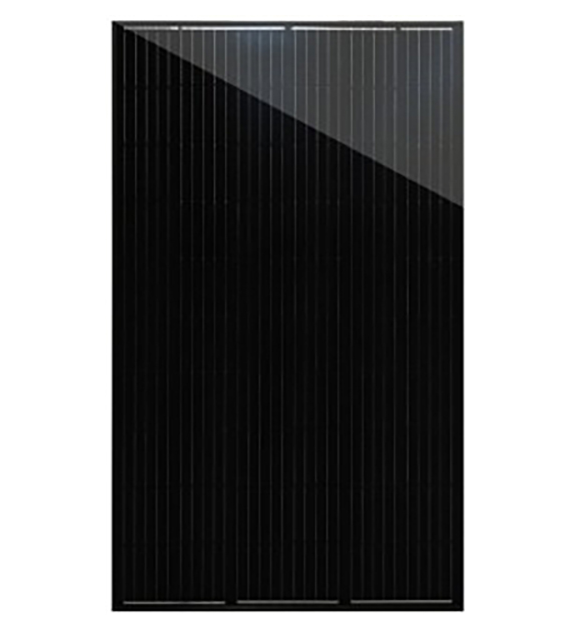

Mission Solar 320 Watt PV Module
ELECTRICAL SPECIFICATIONS
Electrical Parameters at Standard Test Conditions (STC)
Module Type MSE320SR8T
Power Output 320 Watts
Module Efficiency 18.94
Tolerance 0˜+3%
Short-Circuit Current 10.028
Open Circuit Voltage 40.80
Rated Current 9.351
Rated Voltage 34.22
Fuse Rating 20
TEMPERATURE COEFFICIENTS
Normal Operating Cell Temperature (NOCT) 46.09°C (±2°C)
Temperature Coefficient of Pmax -0.377% / °C
Temperature Coefficient of Voc -0.280% / °C
Temperature Coefficient of Isc 0.039% / °C
OPERATING CONDITIONS
Maximum System Voltage 1,000Vdc
Operating Temperature Range -40°C (-40°F) to +85°C (185°F)
Maximum Series Fuse Rating 20A
Fire Safety Classification Type 1, Class C
Front & Back Load (UL standard) 5631 Pa (117 psf)
Tested to UL1703 standard
Hail Safety Impact Velocity 25mm at 23 m/s
MECHANICAL DATA
Solar Cells P-type mono-crystalline silicon (158.75mm)
Cell Orientation 60 cells (6x10), 5 busbar
Module Dimension 1676mm x 1008mm x 40mm
(65.98 in. x 39.68 in. x 1.58 in.)
Weight 20 kg (44lb)
Front Glass 3.2mm (0.126 in.) tempered,
low-iron, anti-reflective coating
Frame Anodized aluminum alloy
Encapsulant Ethylene vinyl acetate (EVA)
J-Box Protection class IP67 with 3 bypass-diodes
Cables PV wire, 1m (39.37 in.), 4mm2
/ 12 AWG
Connector MC4 Compatible

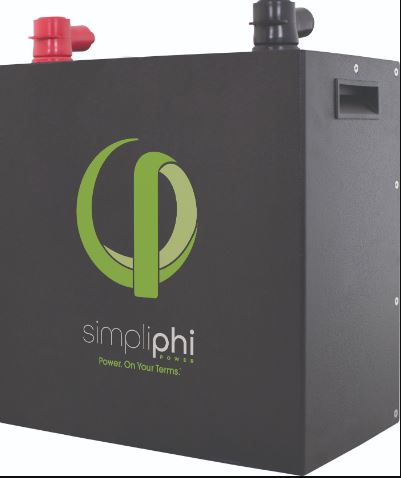

The PHI 3.8™ kWh 60 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, light- weight and scalable for installations that range from kWh to MWh. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.

Simple
• Full range of kWh, Ah and voltage options
• Energy and power in one battery
• Drop-in replacement for existing lead acid
battery banks
• On- or off-grid
• No thermal monitoring, cooling, fire
suppression or ventilation equipment required
• No maintenance

Practical
• Stores electricity from solar, wind, diesel/
gas generators, the grid or any combination
• Modular and scalable — seamlessly add
more capacity if energy needs grow
• Install in small spaces
• Indoor and outdoor use in all climates

Reliable
• 10-year warranty
• High-efficiency rate — more usable power for you
• Provides primary or back-up power for on- or
off-grid homes and businesses
• Delivers multiple charge/discharge cycles per day
• Operates in broad temperature range of
-4 to 120 degrees F
• Proven in the field for 9+ years

Safe
Environmentally benign and non-toxic Lithium Iron Phosphate (LFP)
No Cobalt - no hazards
No risk of overheating or fire
No fumes or off gasing

PHI 3.8™ kWh deep-cycle
 Specifications


PHI 3.8™
24V
48V
DC Voltages – Nominal
25.6VDC
51.2VDC
Amp-Hours
151 Ah
75 Ah
Rated kWh Capacity @ C/2
3.8 kWh DC @ 100% DOD
3.04 kWh DC @ 80% DOD
3.8 kWh DC @ 100% DOD
3.04 kWh DC @ 80% DOD
MAX Discharge Rate (10 minutes)
60 Amps DC (1.53 kW DC)
60 Amps DC (3.07 kW DC)
MAX Continuous Discharge Rate
45 Amps DC (1.15 kW DC)
37.5 Amps DC (1.92 kW DC)
MAX Continuous Charge Rate
45 Amps DC (1.15 kW DC)
37.5 Amps DC (1.92 kW DC)
DC Voltage Range1
24 VDC to 28 VDC
48 VDC to 56 VDC
Depth of Discharge1
up to 100%
up to 100%
Operating Efficiency
98%
98%
Charge Temperature1
32° to 120°F (0° to 49°C)
32° to 120°F (0° to 49°C)
Operating Temperature1
-4° to 140°F (-20° to 60°C)
-4° to 140°F (-20° to 60°C)
Storage Temperature1
6 months: 14° to 77° F (-10° to 25° C)
3 months: -4° to 113° F (-20° to 45° C)
6 months: 14° to 77° F (-10° to 25° C)
3 months: -4° to 113° F (-20° to 45° C)
Self-Discharge Rate
<1% loss per month
<1% loss per month
Cycle Life
10,000+ (@80% DOD)
10,000+ (@80% DOD)
Memory Effect
None
None
Warranty Period
10 Years
10 Years
Weight
78.24 lbs (35.5 kg)
78.24 lbs (35.5 kg)
Dimensions
13.5 x 14 x 8 in. (15.5” H w/terminals) / 0.88 ft3
(34.3 x 35.6 x 20.3 cm / 0.025 m3)
13.5 x 14 x 8 in. (15.5” H w/terminals) / 0.88 ft3
(34.3 x 35.6 x 20.3 cm / 0.025 m3)



C-SA2-MKTG-0018-Data-Sheet-for-SR8T.pdf
C-SA2-CTA-0014-MSE-PV-Module-Limited-Warranty-2020-2021.pdf
P-SA2-UM-0003-Module-Installation-and-User-Manual-PERC-and-Mono.pdf
simpliphi-power-phi-3-8-kwh-60-amp-specification-sheet.pdf
simpliphi-power-phi-batteries-product-brochure.pdf
