This 10.9kW Grid Tie Solar Power system is composed of the following components:
Key Features

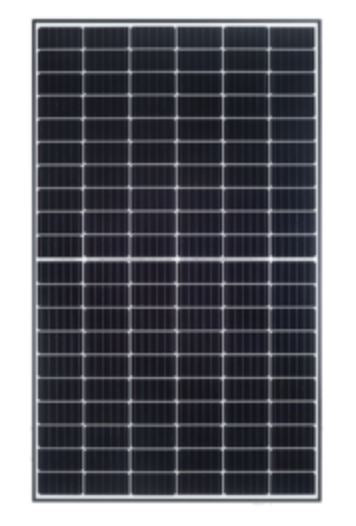

REC Solar Panels TwinPeak2 305 Watt Mono Solar PanelsIronridge Mounting System

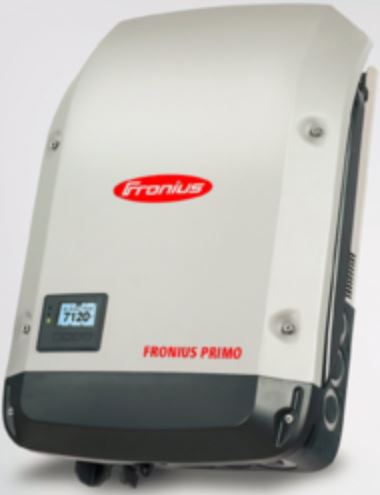

Fronius Inverter Rapid Shutdown Box 1 x Fronius Primo 10.0 10000 Watt WiFi Grid Tie Inverter
Fronius Rapid Shutdown Box QUATTRO
Midnite Solar Solar Surge Protection
if you are interested in a preliminary design (free of charge) of your intended project, please click the green button on your screen and send a us a short note.
Product Description | Quantity | Part Number |
REC 305 Watt Mono Solar Panel | 36 panels | REC305TP2M305 |
Fronius 10kW Grid Tie Inverter | 1 | FRNPRIMO10.0-1 |
Fronius Rapid Shutdown Box QUATTRO | 1 | FRNRAPIDSHUTQU |
Solar Surge Protection Device 600V | 2 | MIDMNSPD-600 |
Solar Surge Protection Device 300VDC/AC | 1 | MIDMNSPD-300 |
Square D D222NRB 60A 240VAC Fusible Disconnect 2 Pole | 1 | SQUD222NRB |
IronRidge XR100 14' Rail Clear | 18 | TWOXR100168A |
Bonded Splice Kit for XR-100 Rails | 12 | TWOXR100-SPLCM1 |
End Cap for XR-100 Rails, Pair | 6 | TWOXR100CAP |
IronRidge XR Universal Clamp, Black | 80 | TWOUFOCLMPBK |
IronRidge XR Stopper Sleeve 38MM, Black | 12 | TWOUFOSTP38MMB1 |
Grounding Lug w/Hardware XR | 4 | TWOGDLUG |
IronRidge FlashFoot 2, Mill | 60 | TWOFLASHFOOT2M |
Square Bonding Hardware, FlashFoot 2 | 60 | TWOSQUAREBOLT |
PV Cable Clips | 40 | ALRCABLECLIP |
Square D Ground Kit PK3GTA1 | 1 | SQUPK3GTA1 |
Burndy Multiple Wire Terminal | 2 | BURBIBS43 |
60 Amp, 250 VAC/ 125 VDC Class R Fuse | 2 | ALR60AMP250VAC |
MC2/MC4 BRANCH COUPLER F to 2M |
1 | ALR-MC2-F-2M |
MC2/MC4 BRANCH COUPLER M to 2F |
1 | ALR-MC2-M-2F |
75' MC4 Connector Cable Extension #10 AWG | 1 | PVCMC4-MF-75FT |
50' MC4 Connector Cable Extension #10 AWG | 1 | PVCMC4-MF-50FT |
15' MC4 Connector Cable Extension #10 AWG | 1 | PVCMC4-MF-15FT |
8' MC4 Connector Cable Extension #10 AWG 600V | 1 | PVCMC4 -MF-8FT |
Disconnect Key Solar Panel Connector Cable | 1 | GENMC4KEY |
NEC Label: DC Conductors May Be Energized | 3 | HLRDCCONDUCT |
NEC Label: Electric Shock Hazard | 4 | HLRWESHLBL17 |
NEC Label: Photovoltaic Power Source | 5 | HLRPVPSR |
NEC Label: Turn Off PV Before Working | 3 | HLR14TURNOFFPV |
NEC Label: Warning Elec Shock, DC Voltage | 1 | HLRELECSHKDC17 |
NEC Label: Warning, Dual Power Source | 1 | HLR14DUALPOWER |
NEC Label: Photovoltaic AC Disconnect | 3 | |
NEC Label: Main PV System Disconnect | 1 | HLRMPVSD |
NEC Label: Warning, Power Source Output | 1 | HLRPOWSRC17 |
NEC Label: Photovoltaic DC Disconnect | 1 | HLRDCDISCT |
NEC Label: Maximum Voltage | 1 | HLRMAXVOLT17 |
NEC Label: Rapid Shutdown Switch | 3 | HLRRAPID2017 |
